| ₹ 1490.0 includes GST and import duties. | |
| B2B customers can avail ₹ 227.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
- Beryllium Copper
- Gold-Plated Center Contact
- Supports 75-Ohms Standard Video Patch Bay

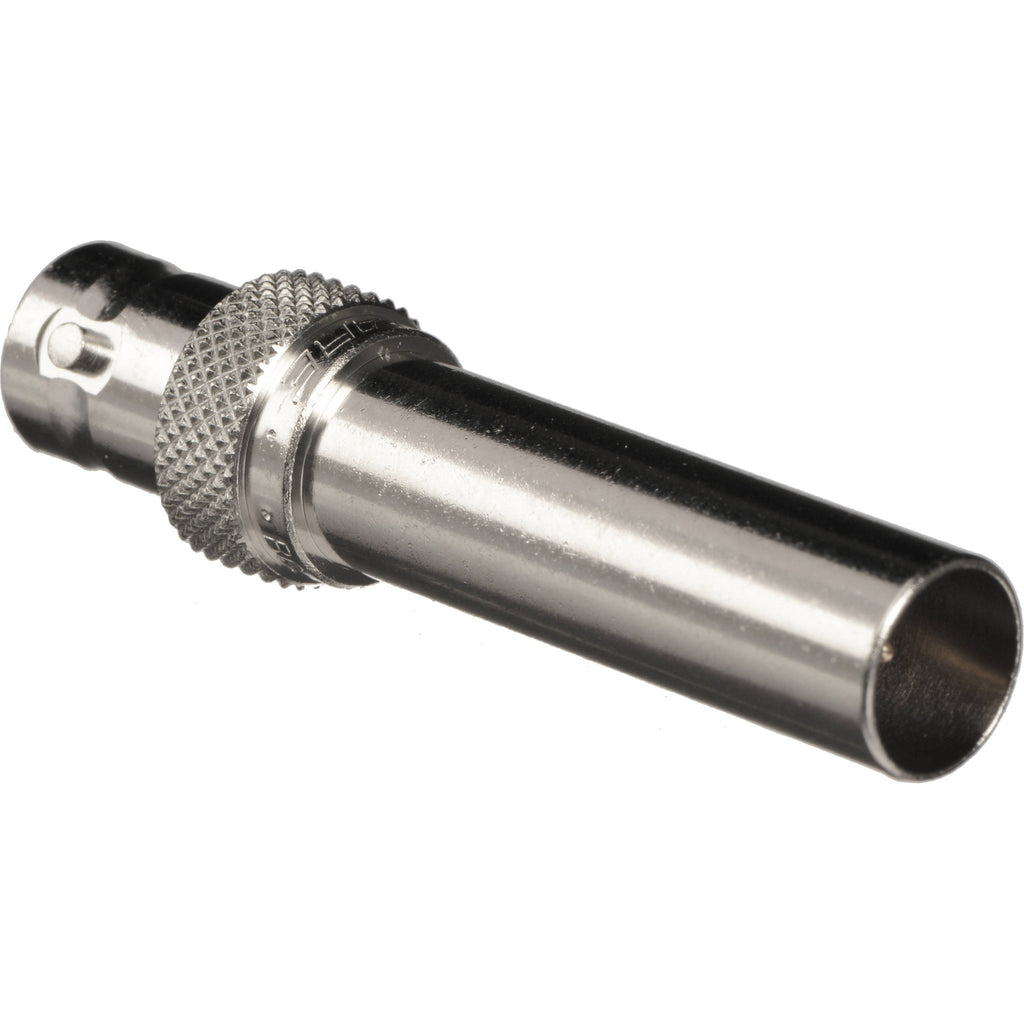

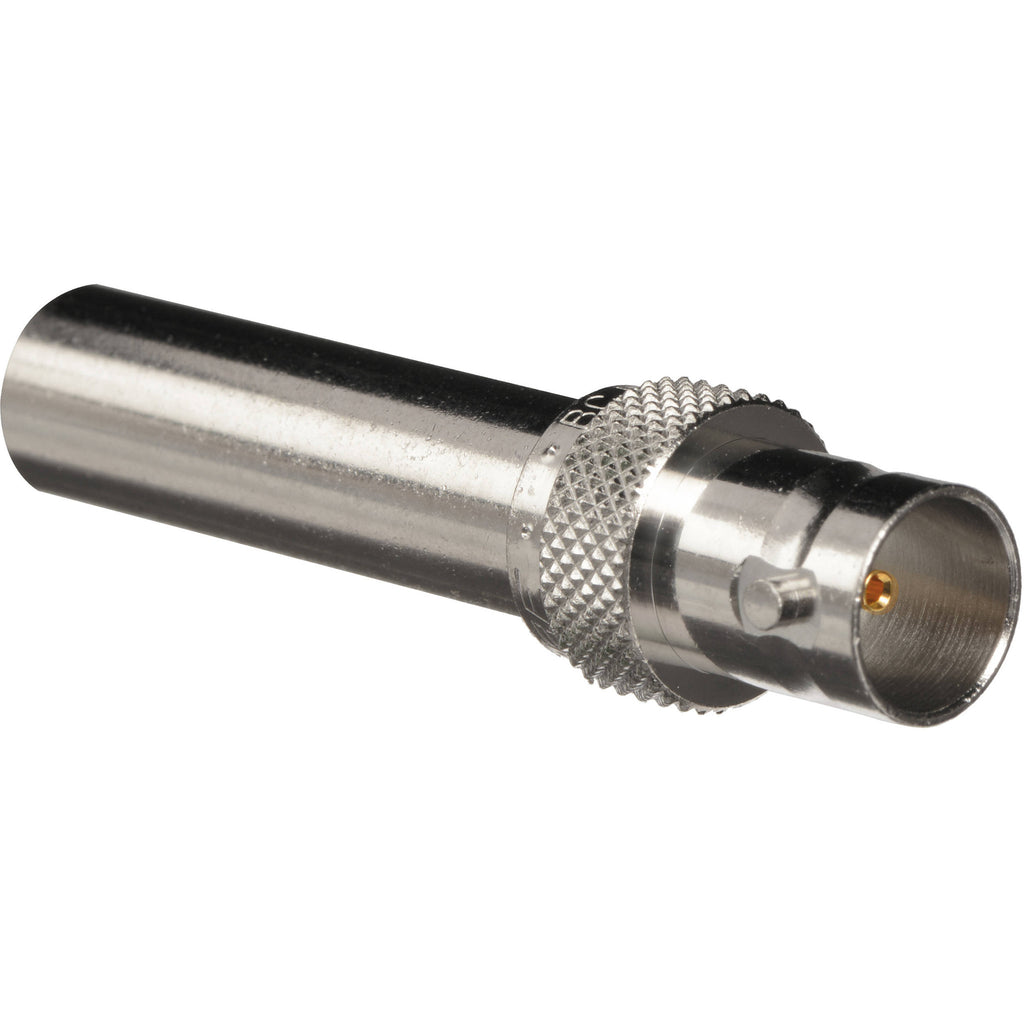

Canare's Video Patch Plug to BNC Jack Adapter is made with beryllium copper and gold-plated center contacts for superior connectivity and is usable with any 75-Ohms standard-size video patch bay.
- WE standard 0.09" pins on 0.625" centers
- High performance (DC-2.0 GHz)
- Usable with any 75-Ohms standard-size video patch bays
| Impedance | 75 Ohms |
| Return Loss | @ 2.0 GHz: > 15 dB |
| Material | Center Contact: Beryllium Copper Outer Contact: Brass Dielectric: PTFE |
| Plating | Center Contact: gold Outer Contact: nickel |
| Dimensions | 0.37-0.51 x 1.97" (9.5-13 x 50.25 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 5.0 x 0.9 x 0.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1460.2 |
| 3-5 | ₹ 1445.3 |
| 5-10 | ₹ 1415.5 |
| 10+ | ₹ 1385.7 |
Bulk discount will be automatically applied during checkout based on quantity.
