Description

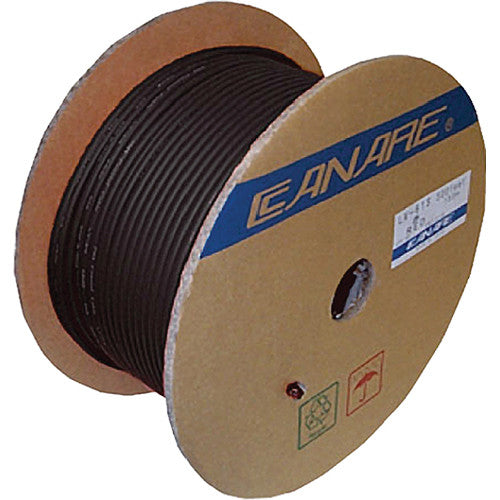

Canare MR202-4AT 200M Overview
The Canare MR202-4AT Twisted Pair Multichannel Microphone Cable (656' / 200 m) is a 100% foil shielded multichannel audio snake cable for general studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers, and tape decks.
Note:
The MR202-AT Series cables are not geared to conduit or field use applications in which cables are subject to strong pulling action.
Foil shield with drain wire
Variety channels
Suitable for microphones, audio rack wiring, recording suites, and post production applications
Aluminum foil shield
Ideal for pit (duct) wiring and for interconnecting devices in studios
Color coding for channels conforms to international standards pertaining to color coding for resistors
Internal drain wire eliminates the troublesome part of line termination work
Canare MR202-4AT 200M Specs
| Brittle Point | -4°F (-20°C) |
| Conductor |
8 (2 per channel) AC - #25 (AWG) 7 / 7.09 quantity / mm² Cross Section Area: 0.18 25 (AWG) 7/0.18 A quantity / mm² |
| Cross Section Area | 279 mm² |
| Material | PVC Jacket 0.032" (0.8 mm) thick Insulation Type: IPE, 9.1 mm thick Channel Jacket Nominal Thickness: 11.8 mil |
| Shield Coverage | 100% Aluminum Tape, Drain Wire #25 AWG |
| Dielectric Strength | 500 VAC / minute |
| Insulation Resistance | 1000 M? at 3 m |
| Twist Pitch | 0.98" (25 mm) |
Packaging Info
| Package Weight | 32.15 lb |
| Box Dimensions (LxWxH) | 18.9 x 18.5 x 6.9" |
