- Braided Copper Shield
- Flexible in Extreme Cold Weather
- 4-Conductor-Style Construction
- Irradiated Polyethylene Insulation
- Designed for Handheld Mic Applications
- Reduced Handling Noise
- Rejects EMI and RFI
- 21 AWG Wire

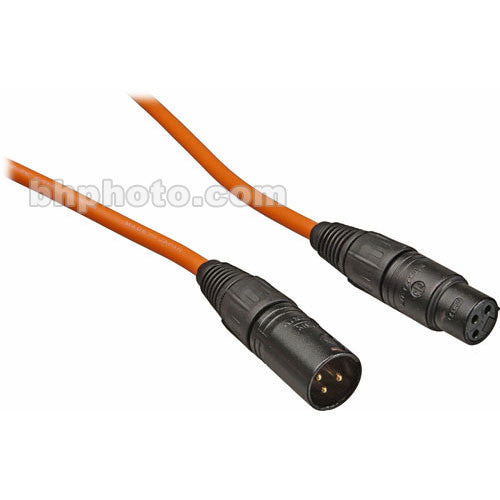

The orange, 25' L-4E6S Star Quad XLRM to XLRF Microphone Cable from Canare is especially designed for handheld microphone applications in live sound, rehearsals and other situations. In addition to mic-level signals, the cable can also be used to carry line-level signals such as for connecting your mixer to power amps.
The L-4E6S Star Quad cable features a 4-conductor design that is engineered to substantially reduce vulnerability to electromagnetic and radio frequency interference when compared with 2-conductor cables. It uses 21 AWG copper wire which features cross-linked, flexible irradiated polyethylene insulation, which is designed to maintain maximum frequency response and to be more heat resistant than ordinary polyethylene. It also utilizes braided copper shielding which is designed for greater noise rejection and durability than spiral shielding.
The cable also includes cotton filler which is in place to help to cut down handling noise. This can be beneficial in handheld microphone applications in which the cable may be subject to a substantial amount of movement.
- Cross-linked PE insulation for flexibility even at low temperatures
UPC: 808447029666
| Cable Type | XLR Microphone Cable |
| Shielding | >95% TAC Braid |
| Nominal O.D | 0.236" (6 mm) |
| Jacket | 0.044" (1.12 mm), PVC |
| Conductors | 4 |
| Insulation | IPE 15.7 |
| Conductor AWG | AC - #24, 40/3.15, 310, #21 |
| Pitch Twist Quad | 0.79" (20 mm) |
| Conductor DCR | <29.9 ohm/1000 ft (<9.8 ohm/100 m) |
| Shield DCR | <9.1 ohm/1000 ft (<3.0 ohm/100 m) |
| Nominal Capacitance | 46 pF/ft (150 pF/m),Capacitance Between Twin Blue and Twin White Conductors
57 pF/ft(185 pF/m), Capacitance Between Conductors to Shield |
| Nominal Impedance | 44 ohm |
| Nominal Attenuation | 0.9 V/1000 ft (0.3 V/100 m) |
| Group Delay Time | 1.80 nS/ft (5.9 nS/m) |
| Connector 1 | XLRM |
| Connector 2 | XLRF |
| Length | 25' (7.6 m) |
| Packaging Info |
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 8.031 x 7.559 x 0.551" |
In the Box
Canare L-4E6S Star Quad XLRM to XLRF Microphone Cable - 25' (Orange)
