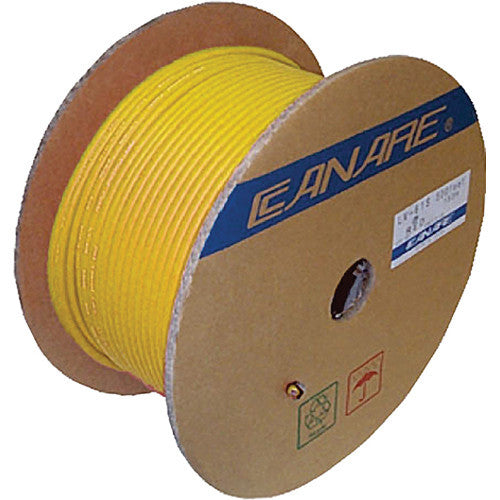

Canare L-4E6S Star Quad Microphone Cable (1000', Yellow)

Roll over image to zoom in

Canare L-4E6S Star Quad Microphone Cable (1000', Yellow)


	₹ 92610.0 includes GST and import duties.
	B2B customers can avail ₹ 14123.03 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Canare
SKU:	8990041744
MPN:	L-4E6S

Share this product

Spool of Cable 1000' in Length
Standard Diameter, 21 AWG
Fits All XLR-Type Audio Connectors
Rejects EMI and RFI Interference
Cross Linked PE Insulation
For Use with Handheld Mics & PA Systems

Colored in a Yellow matte jacket, Canare 's L-4E6S provides 1000' of standard diameter, 21 AWG cable to fit within in all kinds of XLR-type audio connection points. It's designed to be utilized with PA systems and handheld applications, and features 40 separate strands in each conductor to eliminate breakage, making the cable quite flexible.

Braided copper shield

Flexible in extremely cold weather

Cross linked PE insulation

Reduced handling noise

Rejects EMI and RFI

Yellow matte color jacket

In the Box

Canare L-4E6S Star Quad Microphone Cable (1000', Yellow)

1-Year Warranty

Applications	Microphones, portable applications, audio rack wiring, PA systems, and audio patch cords
Outer Diameter	0.2" / 6 mm, nominal
PVC Jacket Thickness	0.04" / 1.1 mm, nominal
Number of Conductors	4 (2 blue and 2 white)
Insulation	Type: IPE Thickness: 0.6" / 15.7 mm Dielectric Strength: 500 VAC/minute Insulation Resistance: 1,000 MOhms per 3' / 0.9 m
Conductor	AWG (AC): 24 (40/3.15 quantity/mm) Cross Sectional Area: 310 mm ² AWG (Quad): 21 Effective AWG of combined twin conductors
Pitch Twist Quad	0.8" / 20 mm
Shield Coverage	>95% TAC Braid
Conductor D.C.R.	<29.9 Ohms/1,000' / <9.8 Ohms/100 m
Shield D.C.R	<9.1 Ohms /1,000' / <3 Ohms/100 m
Nominal Capacitance	Between Twin Blue & White Conductors: 46 pF/ft / 150 pF/m Between Conductors & Shield: 57 pF/ft / 185 pF/m
Nominal Impedance	44 Ohms
Nominal Attenuation	0.9 V/1,000' / 0.3 V/100 m
Group Delay Time	1.80 ns/ft / 5.9 ns/m
Brittle Point	-56ï¿½F / -49ï¿½C
Length	1000' / 305 m
Weight	35 lb / 16 kg

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 90757.8
3-5	₹ 89831.7
5-10	₹ 87979.5
10+	₹ 86127.3

Bulk discount will be automatically applied during checkout based on quantity.
