Description
- 20 AWG
- Aluminum Foil Shielding
- PVC Jacket
- Dupont Kevlar 29 Cable Filler
- Resistant to Kinks & Stretching
- Irradiated PE Conductor Insulation
- Drain Wire Strips
Measuring 656' long and specifically designed for point-to-point wiring in fixed installations, the Canare L-4E6AT is a spool of 20 AWG cable featuring an easily-manipulated PVC jacket which contains Dupont Kevlar 29 cable fiber�a material resistant to stretching or kinking when pulled through bends in conduits. With aluminum foil shielding, the cable features irradiated PE conductor insulation that is resistant to solder-iron meltdown.
- 100% aluminum foil shield coverage with drain wire for quick and easy assembly
- Dupont Kevlar 29 cable filler
- Reduced handling noise
- Rejects EMI and RFI signals
| Applications | Microphones, permanent installations, audio rack wiring, and PA systems |
| Outer Diameter | 0.2" / 6.2 mm, nominal |
| Nominal Jacket Thickness | 0.05" / 1.20 mm Type: PVC |
| Number of Conductors | 4 (2 Blue, 2 White) |
| Insulation | Type: IPE Thickness: 0.6' / 15.7 mm |
| Conductor | AWG (AC): 23 (12/7.09 quantity/mm) Cross Section Area: 481 mm 2 AWG (Quad): 20 |
| Pitch Twist Quad | 1.0" / 25 mm |
| Shield Coverage | 100% aluminum tape |
| Conductor D.C.R. | <19.4 Ohms/1000' / <6.4 Ohms/100 m |
| Nominal Capacitance | Between Twin Blue and White conductors: 46 pF/feet / 150 pF/m Between Conductors & Shield: 64 pF/feet / 210 pF/m |
| Nominal Impedance | 37 Ohms |
| Nominal Attenuation | 0.6 V/1000' / 0.2 V/100 m |
| Group Delay Time | 1.7 ns/1000' / 5.5 ns/100 m |
| Brittle Point | -22°F / -30°C |
| Length | 656' / 200 m |
| Weight | 23 lb / 10 kg |
| Packaging Info | |
|---|---|
| Package Weight | 24.2 lb |
| Box Dimensions (LxWxH) | 11.9 x 11.2 x 8.9" |
In the Box

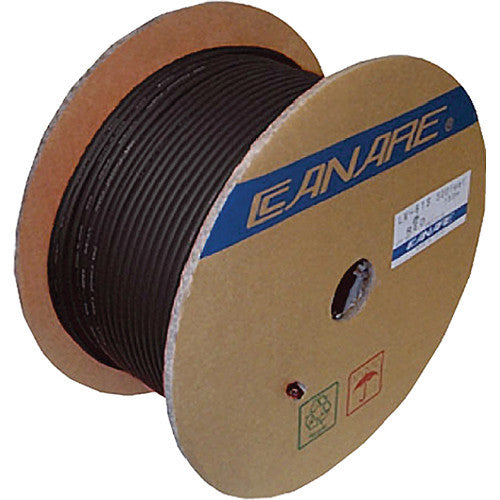

Canare L-4E6AT Star Quad Microphone Cable (656'/200 m)
- Limited 1-Year Warranty
