Description

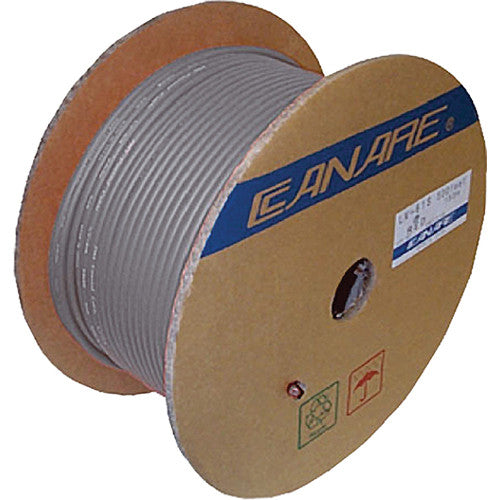

Canare L-4E4-4AT 100M Overview
A Canare L-4E4-4AT Multi-channel Star Quad Microphone Cable (328"/100 m) is designed for all fixed audio installations. This 22 AWG, 100% foil shielded cable has 4 conductor channels that are isolated from each other and contains Kevlar 29 for tensile pulling strength. The individual foil shield, drain wire, and color coded striped PVC jacket can be easily stripped for quick on-site termination.
Foil shield with drain wire
Flexible even in cold weather
Cross linked PE insulation
Rejects electro-magnet and radio frequency interference
Multiple channels for high quality transfer
Dupont Kevlar 29 filler for more strength and tensile pulling strength
Canare L-4E4-4AT 100M Specs
| Number of Quad Channels | 4 |
| Number of Conductors | 16 (4 per channel) |
| Outer Diameter | Nominal: 0.484" (12.29 mm) Channel: 146" (3.7 mm) |
| PVC Jacket Thickness | Nominal: 0.055" (1.4 mm) |
| Channel Jacket | Type:PVC Thickness:0.46" (11.8 mm) |
| Insulation |
Type: IPE Thickness: 0.49" (12.6 mm) |
| Conductor |
AWG (AC): 25 (16 / 4.73 quantity/mm) Cross Sectional Area: 279 mm2 AWG (Quad): 22 |
| Pitch Twist Quad | <0.83" ( <21 mm) |
| Shield Coverage | Channel: Aluminum foil 100% |
| Drain Wire | 23 AWG BundleDrain Wire: 16 AWG |
| Conductor D.C.R. | <32.9 ? / 1000' (<10.8 ?/100 m) |
| Nominal Capacitance | Between Conductors: 50 pF/feet (164 pF/m) Between Conductors to Shield: 68 pF/feet (222 pF/m) |
| Brittle Point | -22°F (-30°C) |
| Length | 328' (100 m) |
| Weight | 40 lb (18 kg) |
