Description
- 20 AWG Solid Copper Center Conductor
- 100% Aluminum Foil; 93% TAC Braid
- Foam PE Dielectric (Insulation)
- 75 Ohm Impedance
- 2.9 dB per 328 ft Attenuation at 10 MHz
- 17pF / ft Capacitance

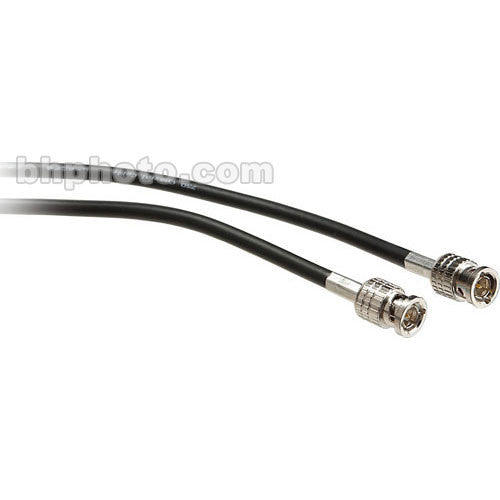

This is a 100 ft Canare HD-SDI Cable , featuring Canare's L-4CFB RG59 coaxial cable.
-
- 20 AWG, solid copper center conductor
- 100% aluminum foil / 93% TAC braid shielding
- Foam PE, 1000 VAC / min dielectric
- 75 ohm
- 2.9 dB per 328 ft Attenuation at 10 MHz
- 17pF / ft capacitance
- < 2.2ns / ft time delay skew
- Black PVC jacket
UPC: 808447014266
| Cable Type | L-4CFB RG59 Coaxial |
| Length | 100 ft (30.5 m) |
| Connector 1 | SDI on BNC male |
| Connector 2 | SDI on BNC male |
| Impedance | 75 ohm |
| Conductor | 20 AWG, solid copper |
| Attenuation | @ 10 MHz: 2.9 dB per 328 ft (100 m) |
| Shielding | 100% AL Foil; 93% TAC Braid |
| Dielectric | Material: Foam PE Strength: 1000 VAC / min |
| Outer Diameter | Nominal: .035" (0.9 mm) Conductor: .032" (0.8 mm) Insulation: .146" (3.7 mm) |
| Time Delay Skew | < 2.2ns / ft |
| Nominal Capacitance | 17pF / ft |
| Jacket | PVC |
| Color | Black |
| Packaging Info | |
|---|---|
| Package Weight | 3.55 lb |
| Box Dimensions (LxWxH) | 8.9 x 5.4 x 2.5" |
In the Box
Canare L-4CFB RG59 HD-SDI Male/Male Cable (100 ft)
- Limited 1-Year Warranty
