| ₹ 72885.0 includes GST and import duties. | |
| B2B customers can avail ₹ 11114.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

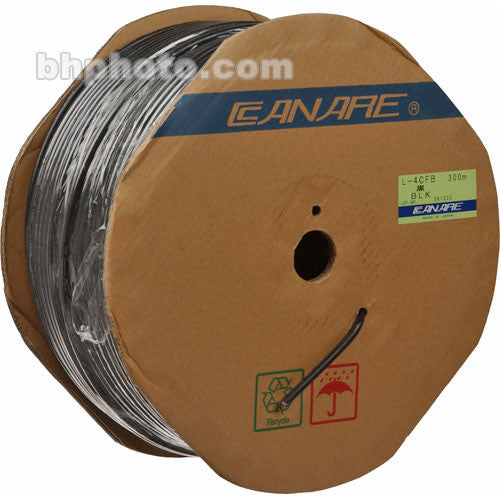

The black L-4CFB RG59 HD-SDI Coaxial Cable - 984' from Canare is a 20 AWG RG59 type digital video cable roll. The cable is designed for use with SD/HD-SDI applications, satellite head-ends, or any other work in broadband, digital, and HDTV facilities. The cable is rated at 75? impedance and features low signal loss. It also includes a solid copper center conductor, a tinned copper-braided shield, and foam polyethylene dielectric.
- Solid copper center conductor
- Foam PE dielectric
- Tinned copper braid + 100% foil shield
- Precision coax 100% sweep tested
- Compatible with: SMPTE 259M, 292M, 424M
| Cable Type | Coaxial |
| Nominal Impedance | 75 ? |
| Conductor | 20 AWG |
| Attenuation | @ 10 MHz: 2.9 dB per 328' |
| Dielectric Insulation Type | Material: Foam PE Strength: 1000 VAC / min |
| Outer Diameter | Nominal: .035" (0.9 mm) Conductor: .032" (0.8 mm) Insulation: .146" (3.7 mm) |
| Nominal Capacitance | 55 pF/m @ 1KHz |
| Shield Material Coverage | Al foil 100% TAC braid >93% |
| Color | Black |
| Length | 984' (300 m) |
| Weight | 32.4 lb (14.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 35.5 lb |
| Box Dimensions (LxWxH) | 14.5 x 14.5 x 7.5" |
In the Box
Canare L-4CFB RG59 HD-SDI Coaxial Cable - 984' (Black)
- Limited 1-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 71427.3 |
| 3-5 | ₹ 70698.45 |
| 5-10 | ₹ 69240.75 |
| 10+ | ₹ 67783.05 |
Bulk discount will be automatically applied during checkout based on quantity.
