| ₹ 113030.0 includes GST and import duties. | |
| B2B customers can avail ₹ 17237.08 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 75 ? Digital Video Coaxial Cable
- Solid Copper Center Conductor
- Double Braid Shield Enables Flexibility
- Foam PE Dielectric Insulation
- 100% Sweep Tested
- Ideal for Mobile HD Applications

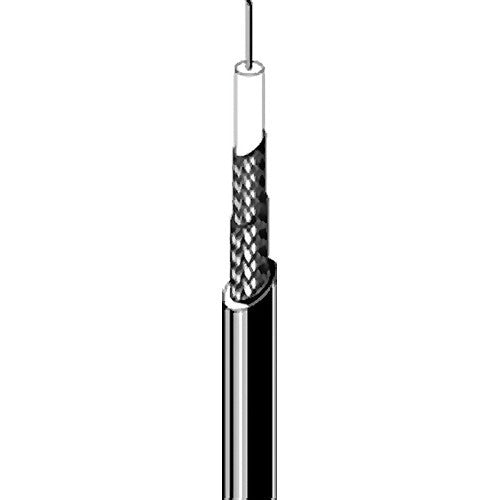

The 984 ft Canare L-3CFW Flexible Digital Coaxial Cable is a precision 75 ohm digital video coaxial cable that supports a full range of video formats for professional broadcast applications. This cable is ideal for HD-SDI distribution.
- Solid copper center conductor
- Double braided shield enables flexibility and good bending performance
- Foam PE dielectric insulation
- Precision coax 100% sweep tested
- Ideal for HD-SDI, mobile, HDTV upgrade, and broadband applications
- Supports SMPTE 259M, 292M, and 424M signals
In the Box
Canare L-3CFW Flexible Digital Coaxial Cable (984 ft)
- 1-Year Limited Warranty
| Dielectric (Insulation) | Material: Foam PE Strength: 1000 VAC / min |
| Outer Diameter | Nominal Outer Diameter: 0.22" (5.8 mm) Inner Conductor Outer Diameter: 0.02" (0.65 mm) Insulation Outer Diameter: 0.12" (3.1 mm) |
| Inner Conductor | Conductor composition: 22 AWG 1/0.65A quantity/mm |
| Shield Material Coverage | Inner: 0.12TA mm Ends: 5 Carriers: 24 (94% or more) Outer: 0.12TA mm Ends: 5 Carriers: 24 (94% or more) |
| Resistance | Inner: 5.5 ? per 328 ft (100 m) Outer: 0.7 ? per 328 ft (100 m) |
| Static Capacity | 17 pF per ft (55 pF per meter) |
| Impedance | 75 ? |
| Attenuation | At 10 MHz: 3.4 dB per 328 ft (100 m) |
| Length | 984 ft (300 m) |
| Weight | 33.7 lb (15.3 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 37.0 lb |
| Box Dimensions (LxWxH) | 14.331 x 14.173 x 7.795" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 110769.4 |
| 3-5 | ₹ 109639.1 |
| 5-10 | ₹ 107378.5 |
| 10+ | ₹ 105117.9 |
Bulk discount will be automatically applied during checkout based on quantity.
