Description
- 100% Sweep Tested
- Supports SMPTE 259M, 292M & 424M
- UL 1666 Riser Flame Test Conformant

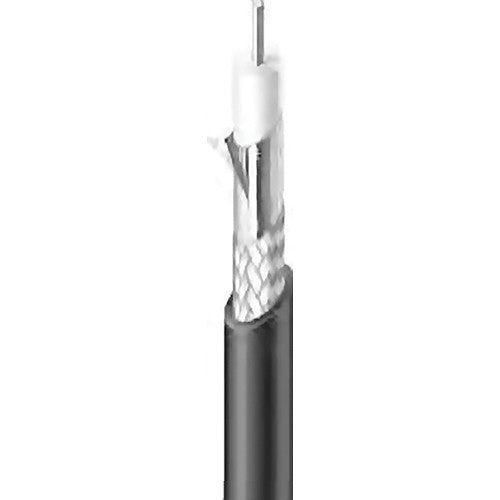

The black 984.25' L-2.5CHD Video Coaxial Cable from Canare is a 75 ohm precision digital video cable that offers the professional broadcaster a high performance, 100% sweep tested, low cost, low loss coaxial cable. It meets the demands of today's facility migration trends toward serial digital video transfer and HDTV standards.
- Highly-foamed PE insulation for improved attenuation characteristics
- Multi-layer insulation offers a different foaming ratio to each layer for increased strength
- Tinned copper braid with aluminum foil for excellent shielding
- L-2.5CHD is ideal for internal rack wiring
- UL 1666 Riser flame test conformant
- Ideal for HD-Serial Digital Video, satellite head ends, HDTV upgrades, broadband facilities, SMPTE 259M, 292M, 424M format signal applications
In the Box
Canare L-2.5CHD Video Coaxial Cable (984.25', Black)
- Limited 1-Year Warranty
| Outer Diameter | Nominal: 0.16" (4.2 mm) Inner Conductor: 0.02" (0.59 mm) Insulation: 0.10" (2.59 mm) |
| Conductor | Inner Conductor Composition: 1/0.59A (23) quantity/mm (AWG) Outer Conductor Shield Coverage & Composition (95% or more): 0.12TA mm, 7 ends, 16 carriers |
| Resistance | Inner Conductor: ?64.3 ?/km Outer Conductor: ?16.9 ?/km |
| Static Capacity | 53 nF/km @ 1 kHz |
| Impedance | 75�3 ? |
| Attenuation | 30.2 dB/100 m at 750 MHz |
| Maximum Transmission Distance | Composite NTSC: 1030.18' (314 m) @ 143 Mbps (SMPTE 259M) Composite PAL: 941.60' (287 m) @ 177 Mbps (ITU-R BT.601) Component (4:2:2): 777.55' (237 m) @ 270 Mbps (SMPTE 259M) Component (4:2:2) 16x9: 675.85' (206 m) @ 360 Mbps (SMPTE 259M) SDI: 551.18' (168 m) @ 540 Mbps (SMPTE 344M) HD-SDI: 216.53' (66 m) @ 1.5 Gbps (SMPTE 292M) HD 1080p: 150.91' (46 m) @ 3 Gbps (SMPTE 424M) |
| Length | 984.25' (300 m) |
| Weight | 17.19 lb (7.8 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 19.25 lb |
| Box Dimensions (LxWxH) | 14.7 x 14.2 x 4.5" |
