| ₹ 5475.0 includes GST and import duties. | |
| B2B customers can avail ₹ 834.94 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
- 75 Ohms Impedance
- Multi-Layer Insulation
- Different Foaming Ratio Per Layer
- Tinned Copper Braid with Aluminum Foil
- 100% Sweep Tested
- Supports SMPTE 259M, 292M & 424M Format
- UL 1666 Riser Flame Test Conformant
The Canare 25 ft offers the professional broadcaster a high-performance, 100% sweep tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards. It is designed for connecting equipment or video distribution gear having standard size BNC input.
- Highly-foamed PE insulation allows further improvement in the attenuation characteristics
- Multi-layer insulation in which each layer is given a different foaming ratio to increase its strength
- Tinned copper braid with aluminum foil provides excellent shielding
- L-2.5CHD is ideal for internal rack wiring
- UL 1666 Riser flame test conformant
- Ideal for HD-SERIAL Digital Video, satellite head ends, HDTV upgrades, broadband facilities, SMPTE 259M, 292M, 424M format signal applications
- Suitable for use with equipment with 1.0/2.3 DIN 3G HD/SDI inputs and outputs like the Black Magic and Red One products
| Impedance | 75 ± 3 ohms |
| Composition | Inner Conductor: 1/0.59 A quantity/mm, 23 AWG |
| Shield Coverage | Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers |
| Conductor Resistance | Inner: 39.95 ohms/mile (64.3 ohms/km) Outer: 10.5 ohms/mile (16.9 ohms/km) |
| Static Capacity | 53 nf/km @ 1 kHz |
| Attenuation | 30.2 dB / 328' (100 m) @ 750 MHz |
| Cable O.D. | Nominal: 0.16� (4.2 mm) Insulation: 0.1� (2.59 mm) Inner Conductor: 0.02� (0.59 mm) |
| Maximum Transmission Distance | 1,030.18� (314 m) @ 143 Mbps (SMPTE 259M, Composite NTSC) 941.6� (287 m) @ 177 Mbps (ITU-R BT. 601, Composite PAL) 777.56� (237 m) @ 270 Mbps (SMPTE 259M, Component 4:2:2) 675.85� (206 m) @ 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9) 551.18� (168 m) @ 540 Mbps (SMPTE 344M, SDI) 216.53� (66 m) @ 1.5 Gbps (SMPTE 292M, HD-SDI) 150.92� (46 m) @ 3 Gbps (SMPTE 424M, HD 1080p) |
| Nominal Attenuation | 4.1 dB / 328' (100 m) @ 10 MHz 6.5 dB / 328' (100 m) @ 30 MHz 9.5 dB / 328' (100 m) @ 72.0 MHz (SMPTE 259M, Composite NTSC) 10.4 dB / 328' (100 m) @ 88.0 MHz (ITU-R BT. 601, Composite PAL) 12.6 dB / 328' (100 m) @ 135 MHz (SMPTE 259M, Component 4:2:2) 14.5 dB / 328' (100 m) @ 180 MHz (SMPTE 259M, Component 4:2:2 16x9) 17.8 dB / 328' (100 m) @ 270 MHz (SMPTE 344M, 540 Mbps SDI) 22.9 dB / 328' (100 m) @ 440 MHz 30.2 dB / 328' (100 m) @ 750 MHz (SMPTE 292M, HD-SDI) 40 dB / 328' (100 m) @ 1.3 GHz 43.1 dB / 328' (100 m) @ 1.5 GHz (SMPTE 424M, HD 1080p) 55.1 dB / 328' (100 m) @ 2.4 GHz 62 dB / 328' (100 m) @ 3 GHz |
| Length | 25' (7.62 m) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 6.7 x 6.1 x 0.6" |
In the Box

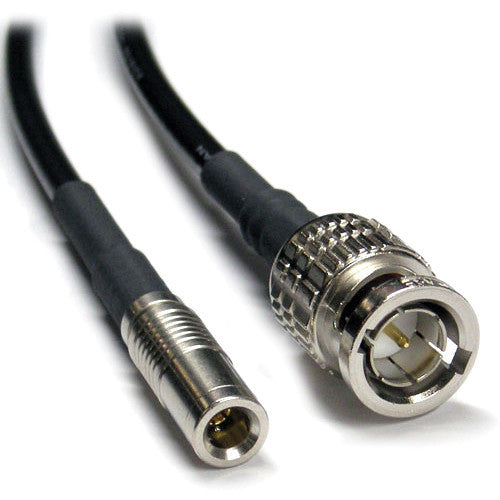

Canare L-2.5CHD 3G/HD-SDI Cable with 1.0/2.3 DIN to BNC Male Connectors (25 ft)
- Limited 1-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5365.5 |
| 3-5 | ₹ 5310.75 |
| 5-10 | ₹ 5201.25 |
| 10+ | ₹ 5091.75 |
Bulk discount will be automatically applied during checkout based on quantity.
