Description
Canare CAL25CH Overview

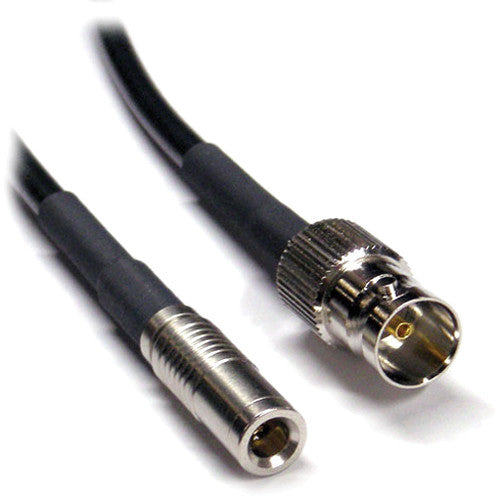

The Canare L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Female Connectors (3') offers the professional broadcaster a high-performance, 100% sweep tested, cost-effective, and low-loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards. It is designed for equipment or video distribution gear having standard size BNC input.
Highly-foamed PE insulation allows further improvement in the attenuation characteristics
Multi-layer insulation where each layer is given a different foaming ratio that helps increase strength
Tinned copper braid with aluminum foil ensures excellent shielding
Ideal for internal rack wiring
Passes UL 1666 riser flame test
Suitable for HD-Serial Digital Video, satellite head ends, HDTV upgrade, broadband facilities, and SMPTE 259M, 292M, 424M signal format applications
Suitable for use with equipment with 1.0/2.3 DIN 3G HD/SDI inputs and outputs like the Black Magic and Red One products
Canare CAL25CH Specs
| Connector Type | 1.0/2.3 DIN to BNC Male Connectors |
| Length | 3' (0.91 m) |
| Impedance | 75 ± 3 ohms |
| Composition | Inner Conductor: 1/0.59 A quantity/mm, 23 AWG |
| Shield Coverage | Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers |
| Conductor Resistance | Inner: 39.95 ohms/mile (64.3 ohms/km) Outer: 10.5 ohms/mile (16.9 ohms/km) |
| Static Capacity | 53 nf/km @ 1 kHz |
| Attenuation | 30.2 dB / 328 ft (100 m) at 750 MHz |
| Cable O.D. | Nominal: 0.16" (4.2 mm) Insulation: 0.1" (2.59 mm) Inner Conductor: 0.02" (0.59 mm) |
| Maximum Transmission Distance | 1,030.18 ft (314 m) at 143 Mbps (SMPTE 259M, Composite NTSC) 941.6 ft (287 m) at 177 Mbps (ITU-R BT. 601, Composite PAL) 777.56 ft (237 m) at 270 Mbps (SMPTE 259M, Component 4:2:2) 675.85 ft (206 m) at 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9) 551.18 ft (168 m) at 540 Mbps (SMPTE 344M, SDI) 216.53 ft (66 m) at 1.5 Gbps (SMPTE 292M, HD-SDI) 150.92 ft (46 m) at 3 Gbps (SMPTE 424M, HD 1080p) |
| Nominal Attenuation | 4.1 dB / 328 ft (100 m) at 10 MHz 6.5 dB / 328 ft (100 m) at 30 MHz 9.5 dB / 328 ft (100 m) at 72.0 MHz (SMPTE 259M, Composite NTSC) 10.4 dB / 328 ft (100 m) at 88.0 MHz (ITU-R BT. 601, Composite PAL) 12.6 dB / 328 ft (100 m) at 135 MHz (SMPTE 259M, Component 4:2:2) 14.5 dB / 328 ft (100 m) at 180 MHz (SMPTE 259M, Component 4:2:2 16x9) 17.8 dB / 328 ft (100 m) at 270 MHz (SMPTE 344M, 540 Mbps SDI) 22.9 dB / 328 ft (100 m) at 440 MHz 30.2 dB / 328 ft (100 m) at 750 MHz (SMPTE 292M, HD-SDI) 40 dB / 328 ft (100 m) at 1.3 GHz 43.1 dB / 328 ft (100 m) at 1.5 GHz (SMPTE 424M, HD 1080p) 55.1 dB / 328 ft (100 m) at 2.4 GHz 62 dB / 328 ft (100 m) at 3 GHz |
| Weight | Not specified by the manufacturer |
Packaging Info
| Package Weight | 0.105 lb |
| Box Dimensions (LxWxH) | 3.6 x 3.05 x 0.65" |
