| ₹ 1135.0 includes GST and import duties. | |
| B2B customers can avail ₹ 173.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
- Ideal for 12G-SDI Video Installations
- Solder-Free Integration
- Stand-Off Design
- 75 Ohms Impedance
- Minimal Return Loss

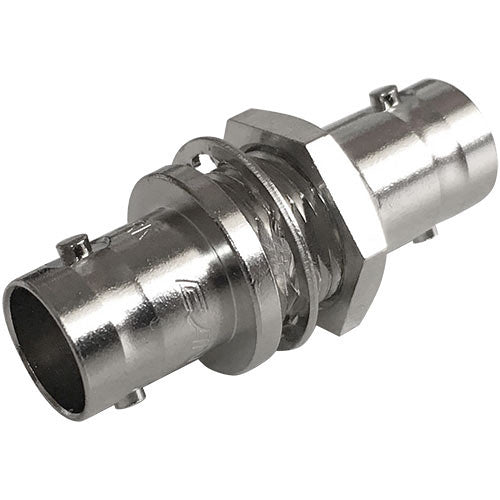

The Canare BCJ-JRK is a BNC to BNC stand-off receptacle designed to provide jack-to-jack patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios. Its 75 Ohms impedance and minimal return loss of 15 dB at 12 GHz makes it ideal for use in 12G-SDI video installations. The stand-off design requires no soldering for installation or cable connections. The receptacle accepts insulation bushing IU-7/16.
- 75 Ohms impedance
- Jack-to-jack style
- Minimized return loss (15 dB at 12 GHz, 26 dB at 3 GHz)
- Compliant with SMPTE ST 2082-1:2015
- Double-D hole punch
- Used for applications such as multimedia edit suites, master control rooms, satellite, telecom, and broadband
| Connector Type | BNC female |
| Impedance | 75 Ohms |
| Bandwidth | VSWR Return Loss DC (2 GHz): <1.1, >26 dB |
| Return Loss | 15 dB at 12 GHz 26 dB at 3 GHz |
| Plating | Center Contact: Beryllium copper/gold Body: Brass/nickel |
| Plate Type | N/A |
| Dielectric | PTFE |
| Insulation Resistance | >1000 MOhms at 500 VDC |
| Voltage Rating | 1500 VAC (RMS) for 1 minute |
| Contact Resistance | Center: <6 mOhms Outer: <3 mOhms |
| Compliance | SMPTE ST 2082-1:2015 |
| Dimensions | Plate Hole (W x H): 0.4 x 0.4" / 9.6 x 11.2 mm Receptacle (D x H): 1.3 x 0.6" / 33.1 x 14.0 mm |
| Packaging Info | |
|---|---|
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 1.7 x 0.6 x 0.6" |
In the Box
Canare BCJ-JRK BNC to BNC Stand-Off Receptacle for 12G-SDI Installations
- Limited 1-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1112.3 |
| 3-5 | ₹ 1100.95 |
| 5-10 | ₹ 1078.25 |
| 10+ | ₹ 1055.55 |
Bulk discount will be automatically applied during checkout based on quantity.
