Description
Canare BCA-RL Overview

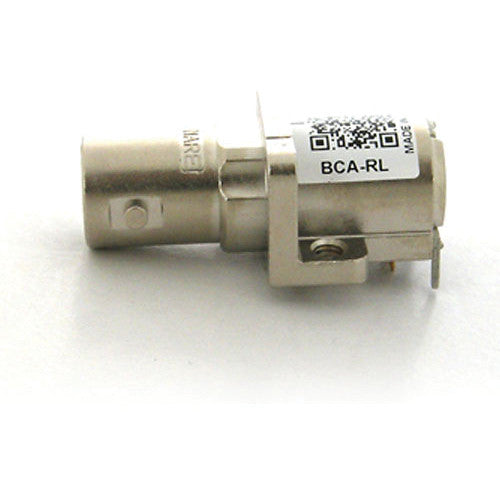

The Canare BCA-RL Active BNC Cable Equalizer Receptacle is a right-angled connector that meets SMPTE 424M standards and allows you to easily connect with tricky I/O block circuits and ensures minimal return loss.
The active BNC connector integrates components that are mounted on a PC board, thus minimizing board surface area requirements and reducing device size.
Innovative active BNC: Regular-size BNC with built-in cable equalizer
Dramatically reduces development cost
Saves PCB space
Supports SMPTE 259M, 292M, and 424M signals
Right-angled mount type
In the Box
- Canare BCA-RL Active BNC Cable Equalizer Receptacle
- Limited 1-Year Manufacturer Warranty
Canare BCA-RL Specs
| Impedance |
75 ?
|
| Supported Formats |
3G-SDI, HD-SDI, SD-SDI, DVB-ASI
|
| Supply Voltage |
3.3 V ± 5%
|
| Current Consumption |
70 mA
|
| Operating Temperature |
-13 to 185?F (-25 to 85?C)
|
| Environment |
RoHS
|
| Dimensions |
0.37 x 1.15" (9.5 x 29.24 mm)
|
| Weight |
Approximately 0.31 oz (9 g)
|
Packaging Info
| Package Weight |
0.05 lb
|
| Box Dimensions (LxWxH) |
4.1 x 3 x 0.2"
|
