Description
- 18 AWG RG6 SDI Coaxial Cable
- BNC Male to BNC Male Connectors
- Solid Copper Center Conductor
- Dual Copper Braids
- Supports SMPTE 259M/292M/424M Standards
- 75-Ohm HD BNC Connectors
- 100% Sweep Tested

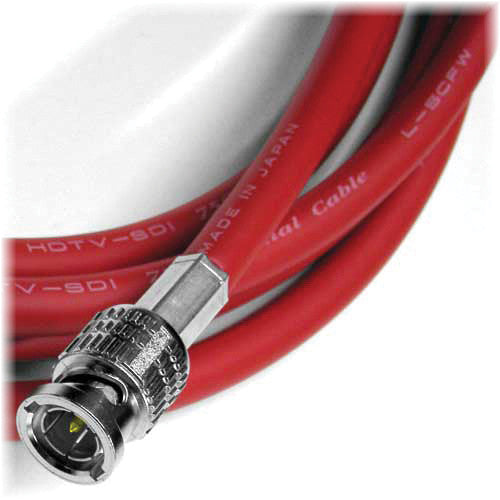

The Canare 6 ft HD-SDI Video Coaxial Cable - BNC to BNC Connectors (Red) is a precision serial digital video coaxial cable that offers throughput for HD-SDI video signals for professional broadcast applications. Thanks to dual copper braids that impart high flexibility and foam PE dielectric insulation, this RG6 coaxial cable can be bent around tight corners or run through tight spaces, while still providing a high-quality, low-loss transfer.
- Transfers serial HD-SDI video signals for professional broadcast broadband facilities
- 18 AWG RG6 digital video coaxial cable
- Dual copper braids for high flexibility and strength
- Supports SMPTE 259M, 292M, and 424M standards
- 100% sweep tested
- BCP-B series 75-ohm HD BNC connectors are capable of handling data rates that exceed 3 Gbps SMPTE 424M standards
- Suitable for use in HD-serial digital video transfer, mobile applications, HDTV upgrades, broadband facilities, etc.
| Electrical | |
|---|---|
| Conductor D.C.R. | 2.3 ohms (100 m) |
| Shield D.C.R | 0.5 ohms (100 m) |
| Nominal Capacitance @ 1 KHz | 17 pF/ft (55 pF/m) |
| Nominal Impedance | 75 ohm |
| Mechanical | |
|---|---|
| Nominal O.D | 0.303" (7.7 mm) |
| Conductor O.D | 0.041" (1.05 mm) |
| Insulation O.D. | 0.193" (4.9 mm) |
| Gauge | 18 AWG |
| Dielectric Insulation Type | Foam PE |
| Shield Material | Strand diameter: 0.004" (0.12 mm) Carriers: 24 Ends: 7 (93% coverage) / 9 (96% coverage) |
| Length | 6' (1.8 m) |
| Packaging Info | |
|---|---|
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 7.0 x 7.0 x 0.7" |
In the Box
Canare 6 ft HD-SDI Video Coaxial Cable (Red)
- Limited 1-Year Warranty
