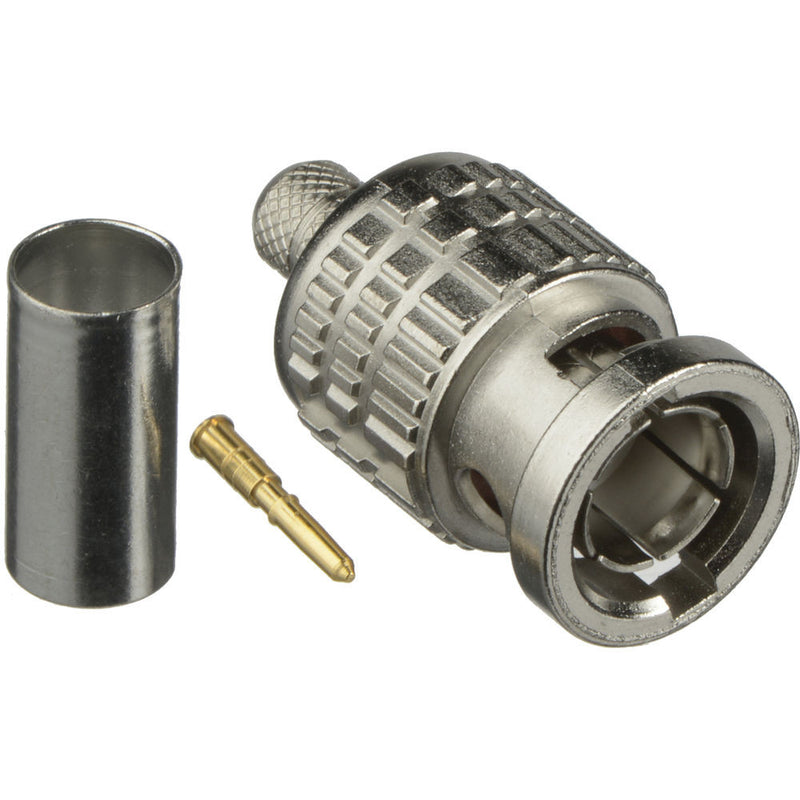

The cost-effective Canare 3.0 GHz 75-ohm BNC Plug for Canare L-3CFW Cable is a high-end BNC male cable end connector that easily handles 3 GHz performance, and helps with cable matching to realize extremely strong high-end performance. Featuring an all-new body design, the BCP-B series exceeds SMPTE424M 3.0 Gbs HD-SDI requirements.
- Die-cast body achieves lower price with high performance
- Position mark on body
- Gold-plated center pin with snap lock
- Canare's original elongated sleeve design
- Compatible with Canare BCP-C series crimp tools
- 10% lighter than the BCP-C series
| Compatibility | Canare L-3CFW |
| Return Loss | (0 ~ 3 GHz) - 26 dB or greater |
| Boot - CB04 | Die set TCD-451CA |
| Coupling Sleeve | Zinc alloy die casting |
| Center Pin | Gold plating |
| Crimp Tool | TC-1 |
| Packaging Info |
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 2.5 x 0.5 x 0.5" |
