Description
Canare 24DV Overview
- 1Description
- 2Supports 3G-Ready HD-SDI Signals
- 3DVJB-W 75 Ohm Dual Video Jacks
- 4Rotary Switch Technology
- 5Wide Designation Strips
- 6Versatility

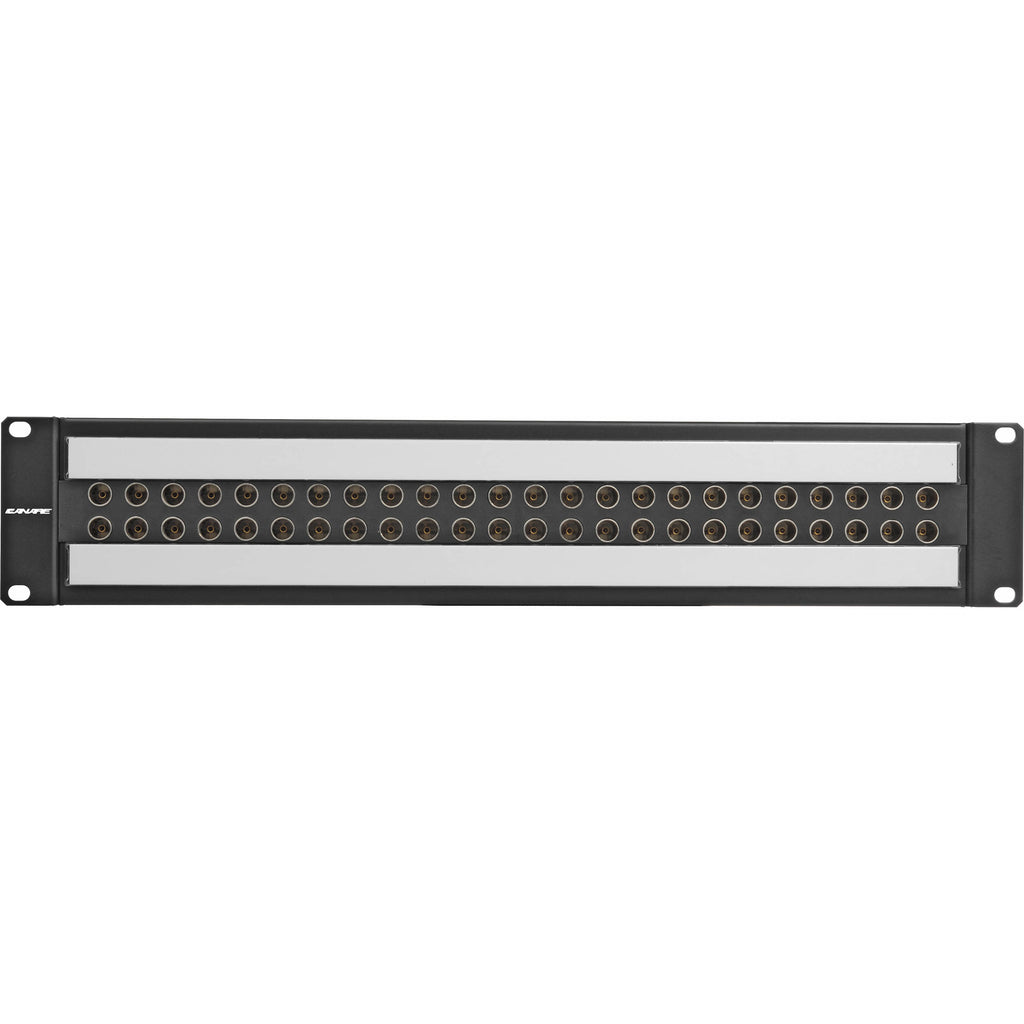

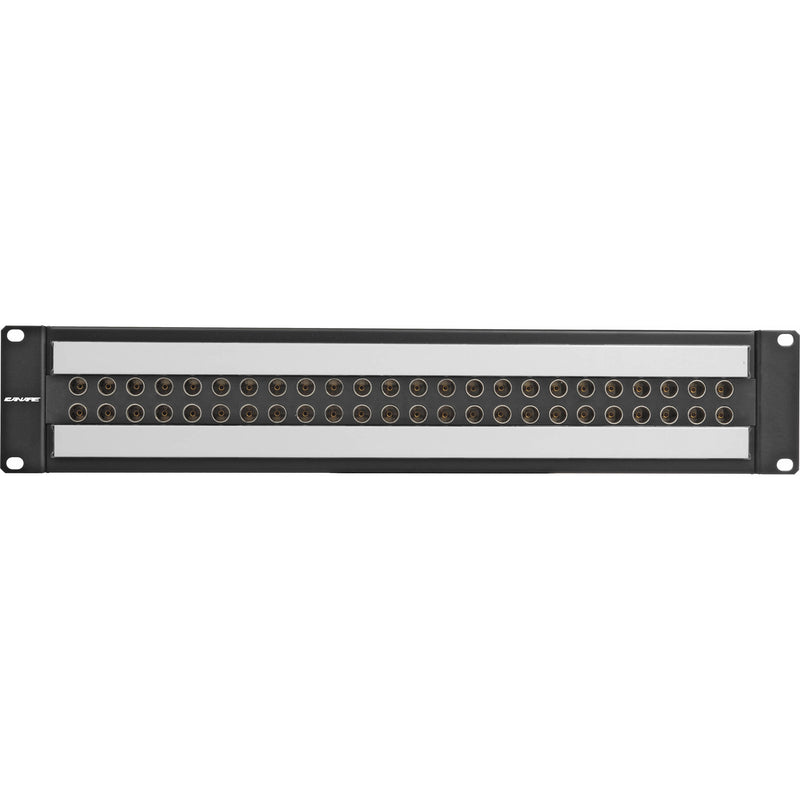

Designed and built to provide "true" broadcast-quality HDTV digital video signal routing capabilities, Canarie introduces its 24DV-2U 2x24 Digital Video Patchbay into the professional arena. It combines unsurpassed clarity and signal reliability with the ability to pass uncompressed HD-SDI 1080p video signals up to an amazing 3Gbps. Its rugged 2RU design features a wide designation strip for professional labeling and houses (24) DVJB-W 75 Ohm dual loaded video jacks, providing up to 48 patch points, which is ideal when integrating into existing or newly configured matrix routing systems. Each jack boasts an independently developed rotary switch that offers a dual-contact construction for improved contact stability. Specifically designed for use with high frequency signals, these jacks provide superior signal isolation and can double as a digital audio AES/EBU patching solution.
Moreover, each DVJB-W jack features "normal through" signal routing that provides a normalled route between top and bottom jacks - and it utilizes VPC series patch cords. Aside from its lightweight aluminum alloy construction, the overall video signal characteristics and Return Loss and Isolation specifications of the Canarie 24DV-2U intrinsically meet the high demands of high profile broadcast operations often required by HDTV/SDTV studios, digital mobile units, OB vans, uplink trucks, edit suites, or a variety of corporate and commercial video applications.
Supports 3G-Ready HD-SDI Signals
DVJB-W 75 Ohm Dual Video Jacks
Rotary Switch Technology
Wide Designation Strips
Versatility
In the Box
- Canare 24DV-2U 2x24 Digital Video Patchbay (2U)
- 1-Year Warranty
- Description
- Supports 3G-Ready HD-SDI Signals
- DVJB-W 75 Ohm Dual Video Jacks
- Rotary Switch Technology
- Wide Designation Strips
- Versatility
Canare 24DV Specs
| Type | Digital Video Patchbay |
| Configuration | 2x24 |
| Signal | HD-SDI (SMPTE 424M Standard) |
| Impedance | 75 Ohm |
| Return Loss | 26dB or greater @ 750MHz 20dB or greater @ 2.4GHz 10dB or greater @ 3.0GHz |
| Isolation | 35dB or greater @ 1.5GHz 20dB or greater @ 3.0GHz |
| Routing | Normal Through Video Port (front): No Patch - BNC Port (rear): Signal Loop Video Port (front): Patch Upper - BNC Port (rear): Lower Terminated Video Port (front): Patch Lower - BNC Port (rear): Upper Terminated Video Port (front): Patch Both - BNC Port (rear): Signal Thru |

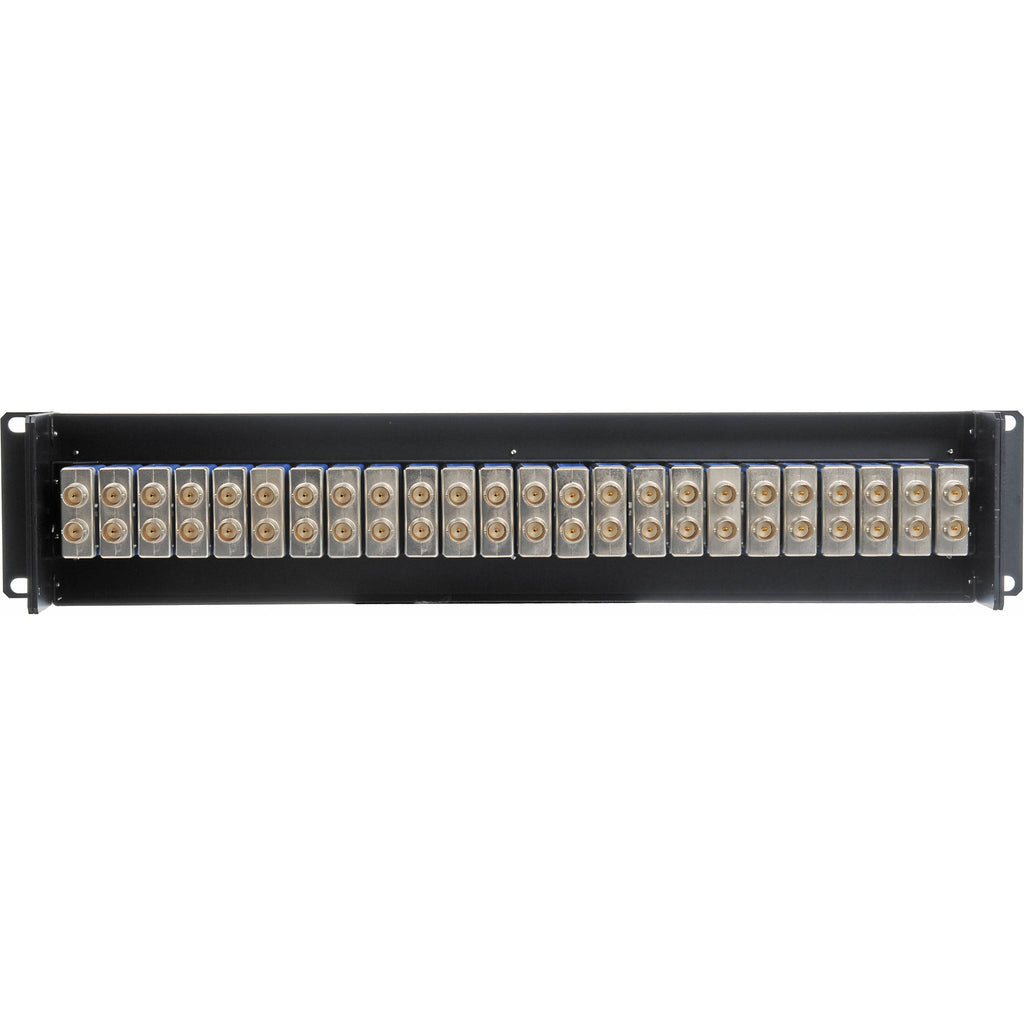

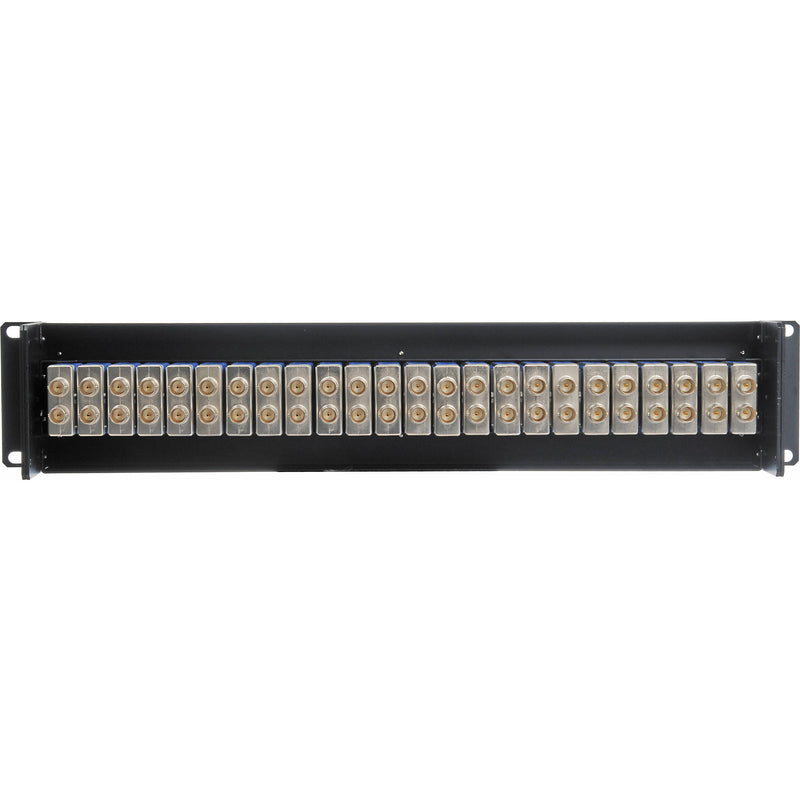

| Connections | Front Patch (Female) uses VPC Type Patch Cords Rear BNC (Female) uses Industry Standard Male BNC Connectors |
| Contact | Beryllium Copper, Gold-Plated Center |
| Construction | Lightweight Aluminum (video jacks) |
| Rack Units | 2RU |
| Dimensions (WxHxD) | 19 x 3.4 x 3.3" (482.6 x 88 x 85mm) |
| Weight | Not Specified By Manufacturer |
| Color | Black |
| Package Weight | 9 lb |
| Box Dimensions (LxWxH) | 24.5 x 8 x 3" |
