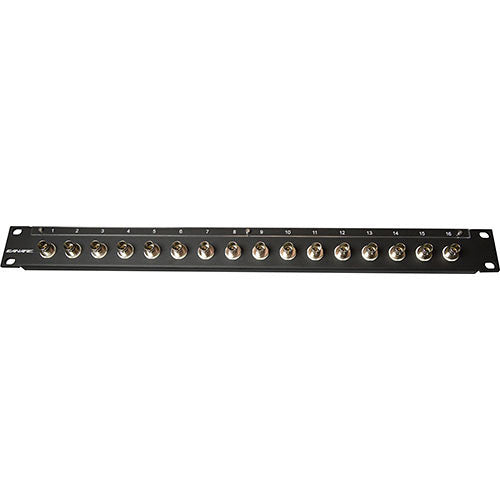

Canare 161U-BJRK 12G A/V BNC Stand-Off Panel with Receptacles (1 RU, 16 Receptacles)

The 1 RU Canare 161U-BJRK is a 12G A/V BNC standoff panel with 16 BNC jack-to-jack receptacles designed to provide multichannel isolated BNC pass-through functionality for A/V installers and system integrators in television, video, and broadcast production. The panel is constructed of 16-gauge, cold-rolled steel for sturdiness, and finished in black powder coat for protection against scratches and scrapes. Reinforcement folds on its top and bottom deliver enhanced stability.

The standoff receptacles loaded into the panel incorporate a BNC female connector on each end. They boast 75 Ohm impedance and minimal return loss, making them ideal for 12G-SDI video installations.

• 161U A/V Bulkhead Panel (Unloaded Patch / Flush Mount)

  The Canare 161U A/V Bulkhead Panel (Unloaded Patch / Flush Mount) is a 1RU panel that allows you to flush mount 16 unified series connectors including BNC, RCA, F, and XLR.

  Built from 16-gauge cold-rolled steel, the sturdy matte black powder coat finished panel offers high strength and durability. In addition to top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts, the 161U A/V Bulkhead Panel also features clear designation strips positioned over channel ID numbers.

  Along with standard ITT Cannon footprint for connectors, the panel also offers standard ISO bushing color (WHT) or a range of custom ISO bushing colors (BLK / BLU / GRN / RED / YEL). Being compact (19 x 1.7"), the 161U A/V Bulkhead Panel is ideal for use in television headends and master control rooms as well as satellite, telecom, and broadband applications.

  1RU panel for 16 unified series flush-mount connectors including BNC, RCA, F, and XLR

  Made from 16-gauge cold-rolled steel (1.62mm) with a sturdy matte black powder coat panel finish

  Includes top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts

  Comes with clear designation strips positioned over channel ID numbers

  Standard ITT Cannon footprint connectors

  Standard ISO bushing color (WHT) / custom ISO bushing colors (BLK / BLU / GRN / RED / YEL)

  Compact - 19 x 1.7"

  Ideal for use in television headends and master control rooms as well as for satellite, telecom, and broadband applications

• BCJ-JRK BNC to BNC Stand-Off Receptacle for 12G-SDI Installations

  The Canare BCJ-JRK is a BNC to BNC stand-off receptacle designed to provide jack-to-jack patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios. Its 75 Ohms impedance and minimal return loss of 15 dB at 12 GHz makes it ideal for use in 12G-SDI video installations. The stand-off design requires no soldering for installation or cable connections. The receptacle accepts insulation bushing IU-7/16.

  75 Ohms impedance

  Jack-to-jack style

  Minimized return loss (15 dB at 12 GHz, 26 dB at 3 GHz)

  Compliant with SMPTE ST 2082-1:2015

  Double-D hole punch

  Used for applications such as multimedia edit suites, master control rooms, satellite, telecom, and broadband
