Description
- 1RU Panel for 16 Unified Connectors
- Flush-mount BNC/RCA/F/XLR Connectors
- Made of 16-gauge Cold-rolled Steel
- Matte Black Powder Coat Panel Finish
- Top & Bottom Panel Reinforcement Folds
- M2.5 Tapped Holes for Connector Mounts
- Designated Strips for Each Channel ID
- Standard ITT Cannon Footprint
- Standard ISO Bushing Colors

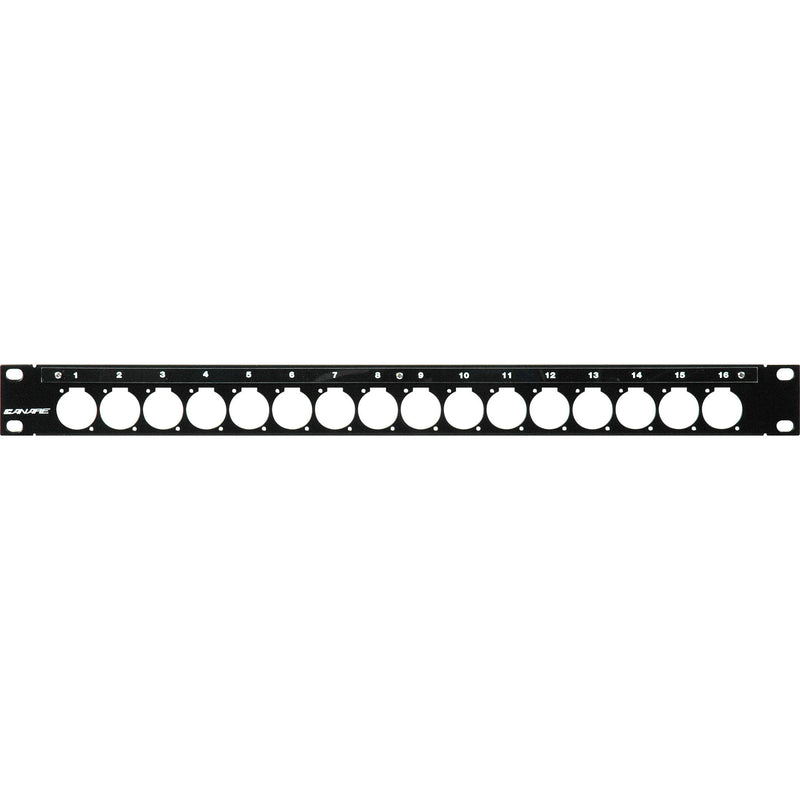

The Canare 161U A/V Bulkhead Panel (Unloaded Patch / Flush Mount) is a 1RU panel that allows you to flush mount 16 unified series connectors including BNC, RCA, F, and XLR.
Built from 16-gauge cold-rolled steel, the sturdy matte black powder coat finished panel offers high strength and durability. In addition to top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts, the 161U A/V Bulkhead Panel also features clear designation strips positioned over channel ID numbers.
Along with standard ITT Cannon footprint for connectors, the panel also offers standard ISO bushing color (WHT) or a range of custom ISO bushing colors (BLK / BLU / GRN / RED / YEL). Being compact (19 x 1.7"), the 161U A/V Bulkhead Panel is ideal for use in television headends and master control rooms as well as satellite, telecom, and broadband applications.
- 1RU panel for 16 unified series flush-mount connectors including BNC, RCA, F, and XLR
- Made from 16-gauge cold-rolled steel (1.62mm) with a sturdy matte black powder coat panel finish
- Includes top and bottom panel reinforcement folds and M2.5 tapped holes for connector mounts
- Comes with clear designation strips positioned over channel ID numbers
- Standard ITT Cannon footprint connectors
- Standard ISO bushing color (WHT) / custom ISO bushing colors (BLK / BLU / GRN / RED / YEL)
- Compact - 19 x 1.7"
- Ideal for use in television headends and master control rooms as well as for satellite, telecom, and broadband applications
| Connectors | None |
| Panel Size | 19 x 1.7" (483 x 43mm) - 1 RU |
| Connector Type | N/A |
| Panel Style | Flush Mount |
| Characteristics | ITT Cannon Footprint Standard ISO Bushing Color: White Custom ISO Bushing Colors: Black, Blue, Green, Red, Yellow |
| Construction | Material: Strong 16 gauge Cold Rolled Steel 0.06" (1.62mm) Panel Finish: Matte Black Powder Coat Panel Finish |
| Packaging Info | |
|---|---|
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 20.0 x 2.5 x 0.5" |
- 1-Year Warranty
