Description
CAMVATE C3328 Overview

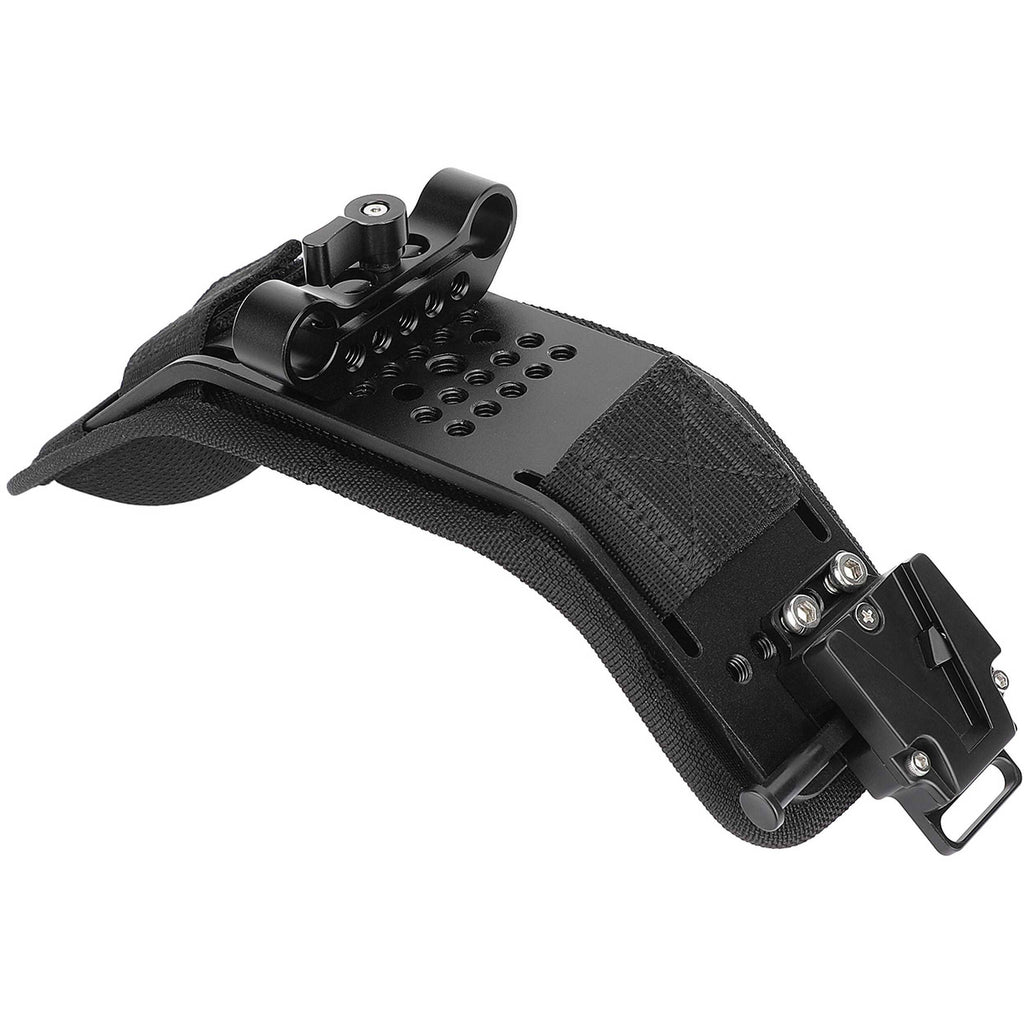

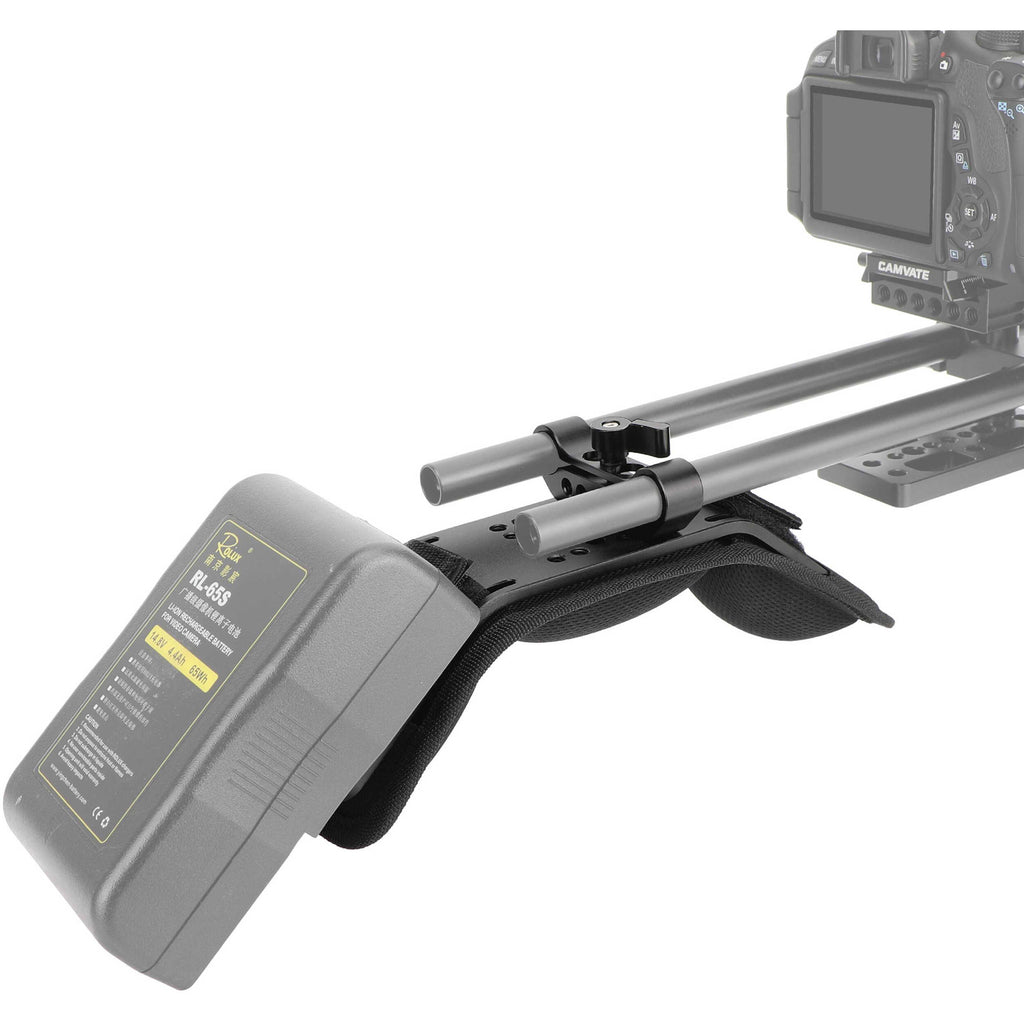

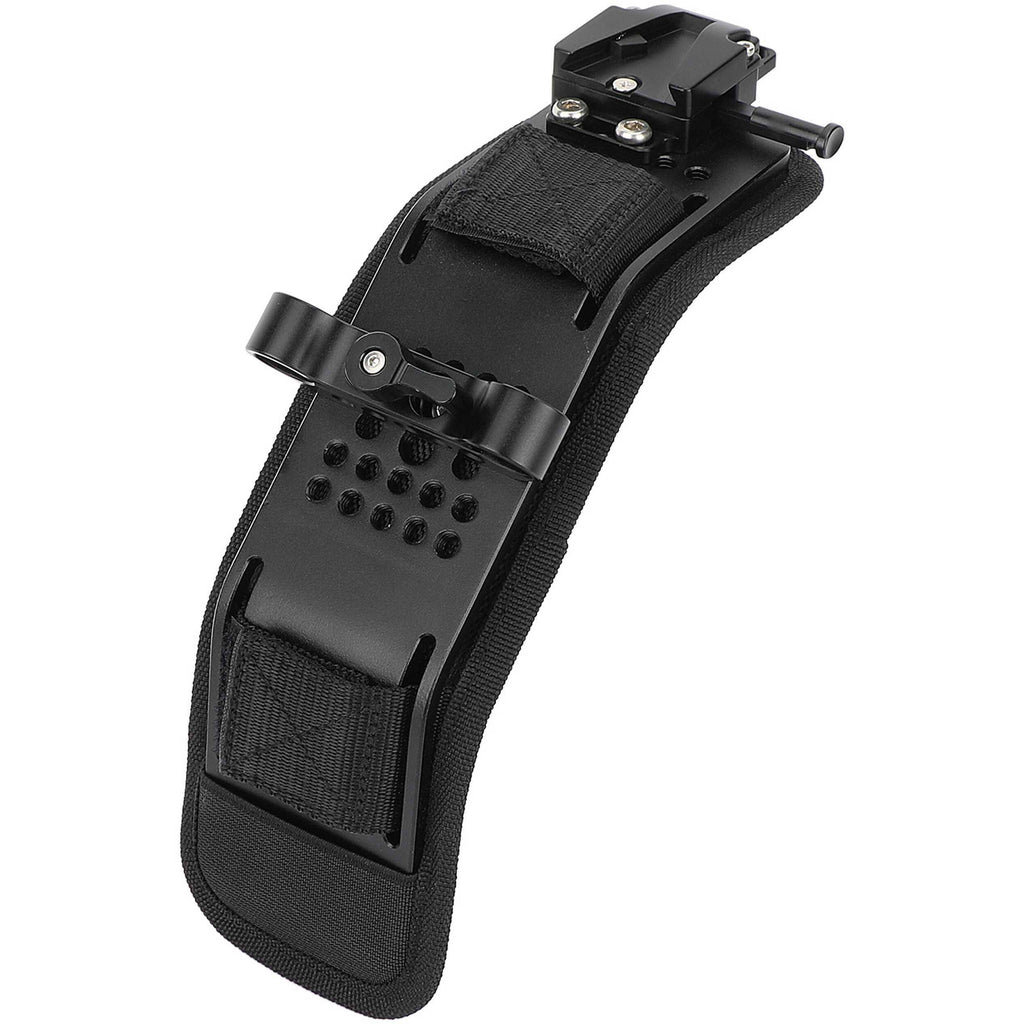

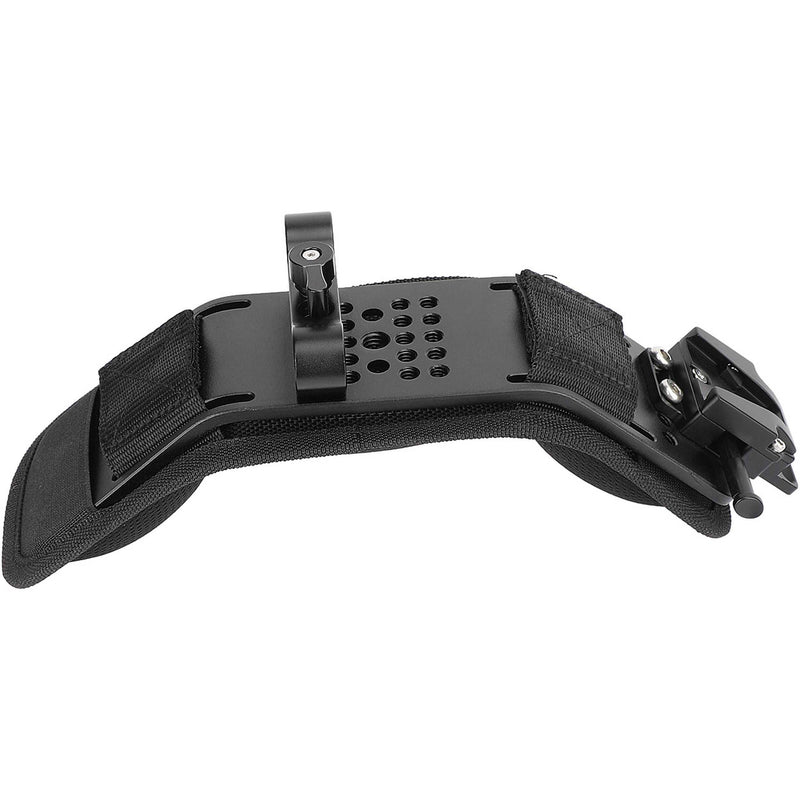

Add this Shoulder Pad with V-Lock Receiver and 15mm LWS Rod Clamp from CAMVATE to your camera rig to convert it into a shoulder-mounted rig. The pad system consists of a soft pad, a rigid frame with mounting threads, a V-lock receiver plate, and a standard 15mm LWS rod clamp.
The rod clamp and V-lock adapter attach to the rigid frame, which has multiple 1/4"-20 and 3/8"-16 mounting points. The soft, comfortable pad attaches to the frame and protects your shoulder when carrying a heavy load. The 15mm rod ports are spaced 2.36" apart to fit standard LWS rod systems. The V-lock receiver plate can be used to directly mount a V-mount battery or accessory with a V-lock adapter.

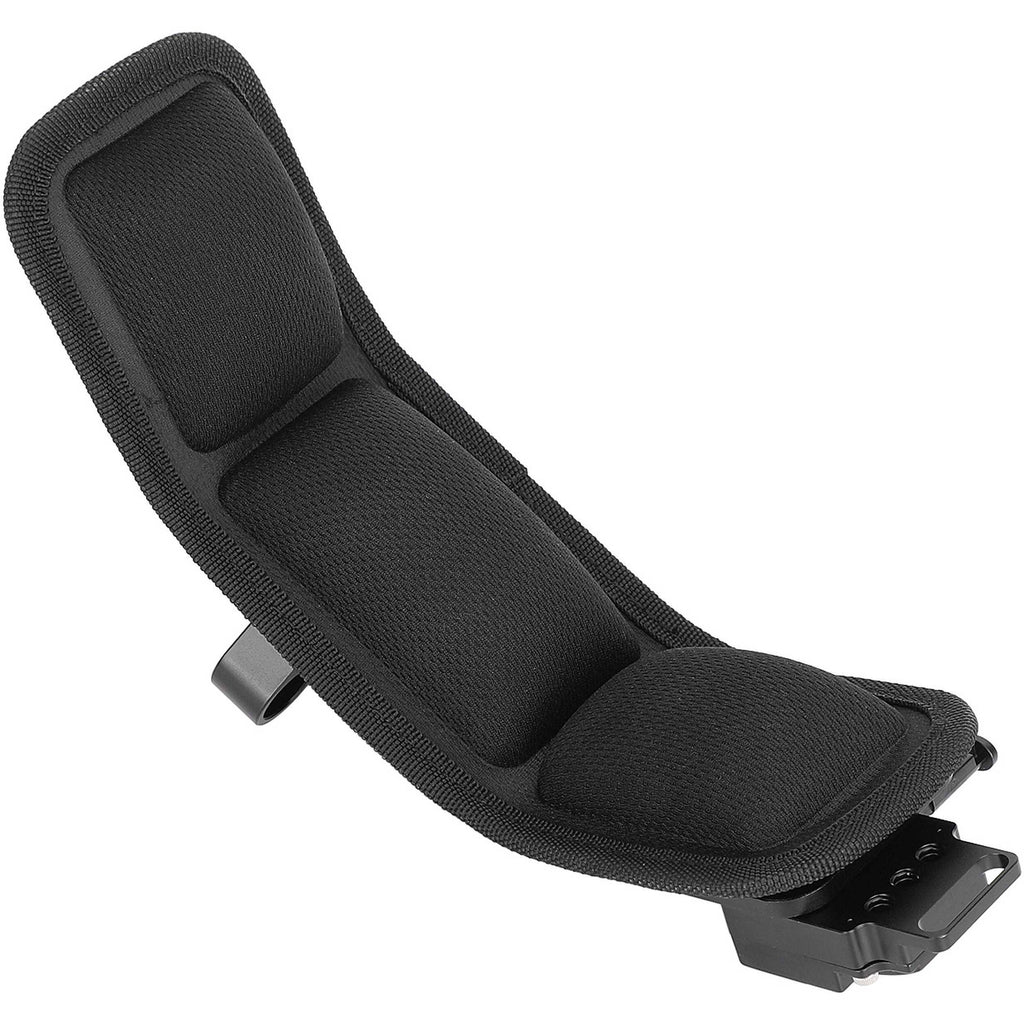

Carry your DSLR camera rig on your shoulder comfortably with this Shoulder Pad from CAMVATE. Its integrated mounting plate features numerous 1/4"-20 and 3/8"-16 threaded holes.

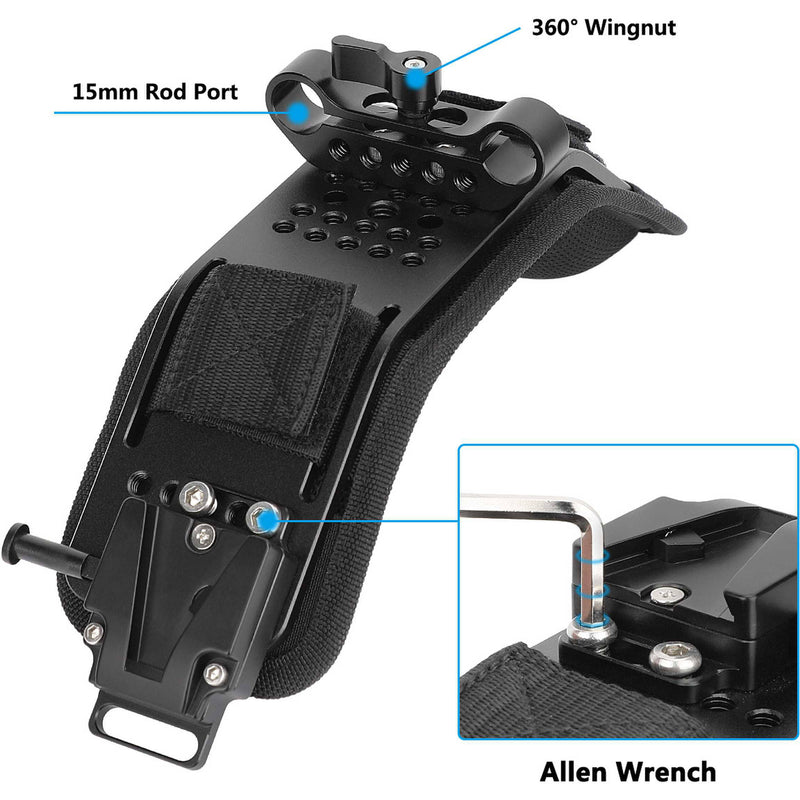

This 15mm Dual-Rod Clamp with Center Locking Knob from CAMVATE can integrate two 15mm rods into your camera rig configuration for expanded mounting options. Once the rods are inserted into the dual ports, simply twist the center locking knob to secure them. Multiple 1/4"-20 on either side of the clamp offer additional mounting points for articulation arms or cheese plates. Its aluminum alloy construction offers a lightweight and durable design.
The Universal V-Lock Female Quick Release Adapter from CAMVATE can be attached to camera cages, cheese plates, and other supports via two included 1/4"-20 screws that fit through slots on the top and bottom. The adapter features a female V-lock that supports male V-lock adapters. Many male V-lock adapters can be secured to batteries, distribution boxes, and other devices or accessories, and this female V-lock will allow for quick release attachment of those adapters. It also allows you to attach a V-mount battery directly. Then you can run power from your battery to a camera or other device over a D-Tap cable (your battery must have a D-Tap port in such case). The V-lock is released via a push/pull lever.

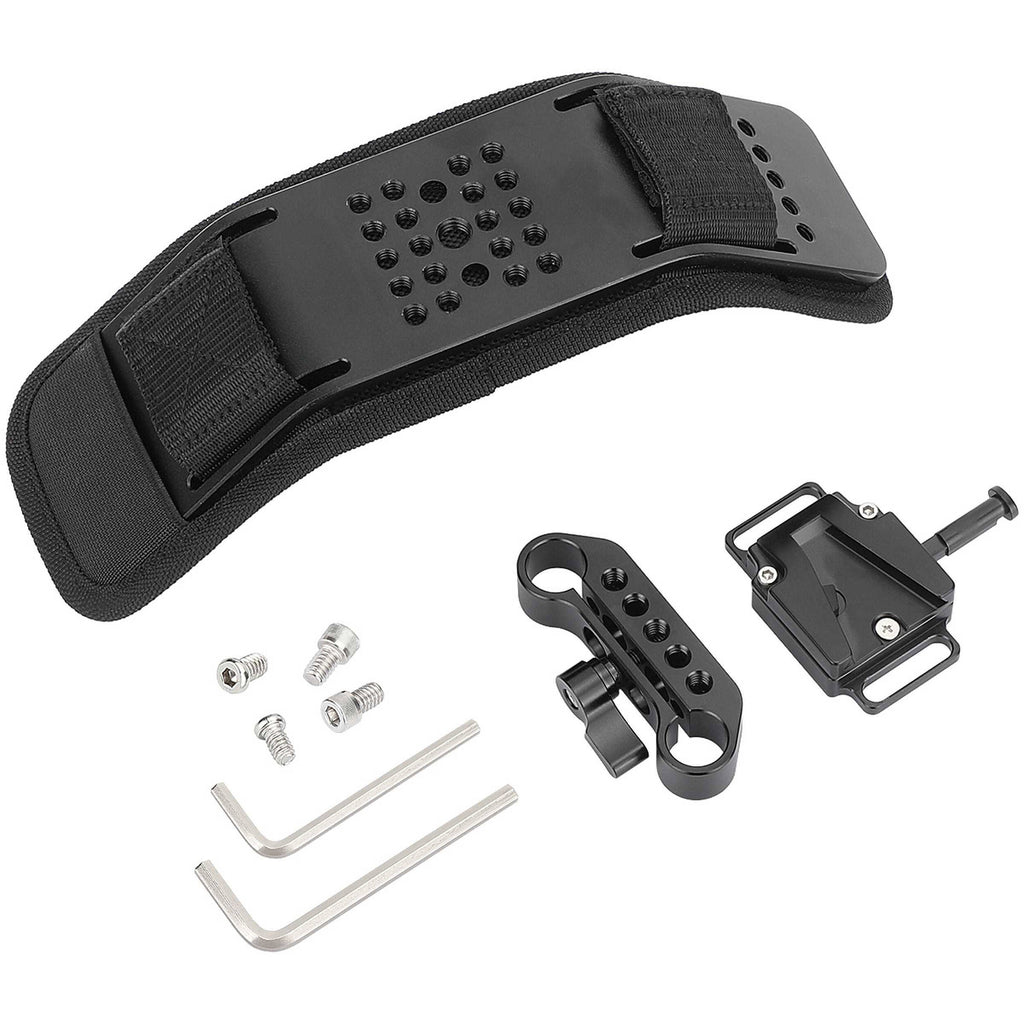

In the Box
- CAMVATE Shoulder Pad with Integrated Mounting Plate for DSLR Camera Rig
- Allen Key
- 2 x Screw
- Limited 3-Year Manufacturer Warranty
- CAMVATE 15mm Dual-Rod Clamp with Center Locking Knob
- 2 x 1/4"-20 Screw
- Allen Key
- Limited 3-Year Manufacturer Warranty
- CAMVATE Universal V-Lock Female Quick Release Adapter
- 2 x 1/4"-20 Screw
- Allen Key
- Limited 3-Year Warranty
Additional Resources
No additional resources available
CAMVATE C3328Specs
| Compatibility |
DSLR Camera Rig
|
| Mounting Holes |
Numerous 1/4"-20 and 3/8"-16 Threaded Holes
|
| Dimensions |
3.1 x 8.5" / 80 x 216 mm
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.6 lb
|
| Box Dimensions (LxWxH) |
10.1 x 5.25 x 2.95"
|
CAMVATE C3328Specs
| Mounting |
Accessory Mount: Multiple Built-In 1/4"-20 Female Thread
|
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Rod Ports |
2x 15 mm Rod Port
|
| Color |
Black
|
| Pan |
No
|
| Tilt |
No
|
| Roll |
No
|
| Mounting |
Accessory Mount: Multiple Built-In 1/4"-20 Female Thread
|
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Rod Ports |
2x 15 mm Rod Port
|
| Materials |
Aluminum
|
| Dimensions |
Length: 3.1" / 80 mm
|
| Weight |
2.3 oz / 65 g
|
| Package Weight |
0.16 lb
|
| Box Dimensions (LxWxH) |
4.85 x 3.4 x 1.05"
|
CAMVATE C3328Specs
| Material of Construction |
Aluminum
|
| Dimensions |
2.5 x 1.6" / 63 x 39.5 mm
|
| Weight |
2.5 oz / 73 g
|
| Package Weight |
0.175 lb
|
| Box Dimensions (LxWxH) |
4.85 x 3.45 x 1.2"
|
