CAMVATE C2635 Overview

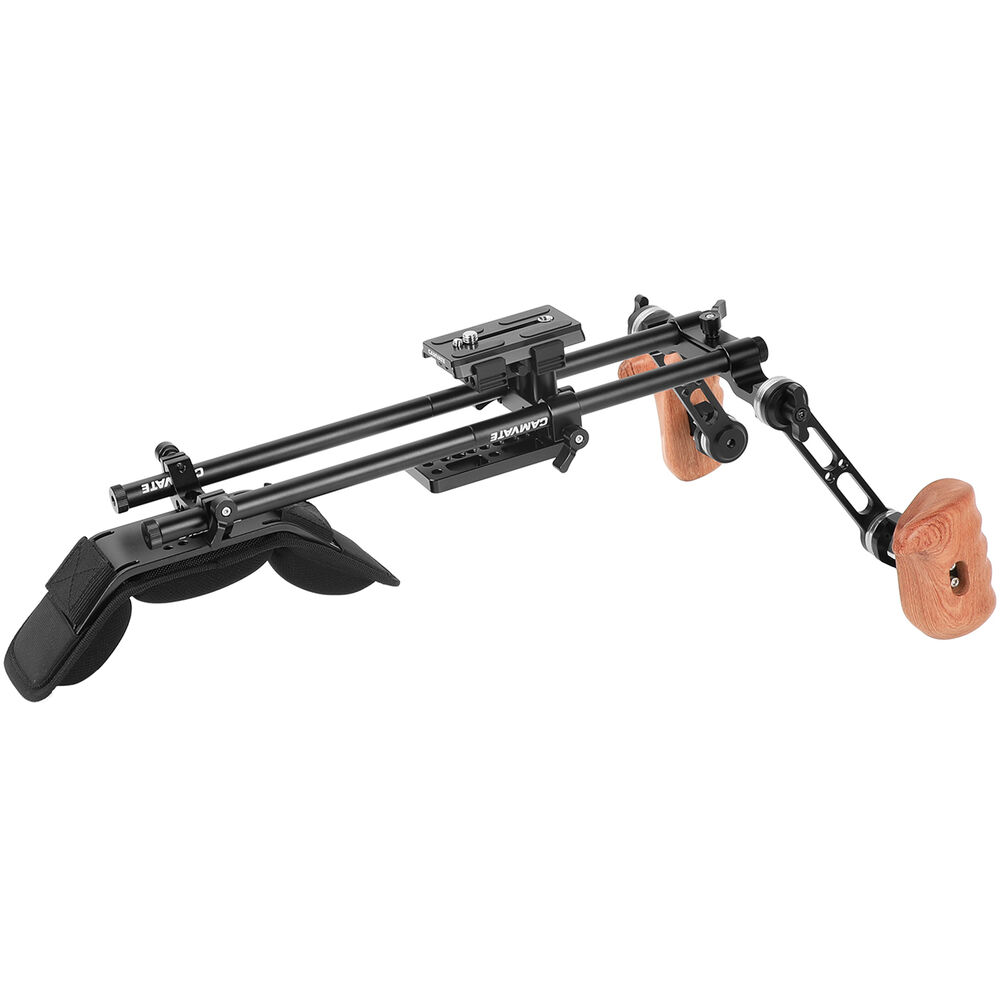

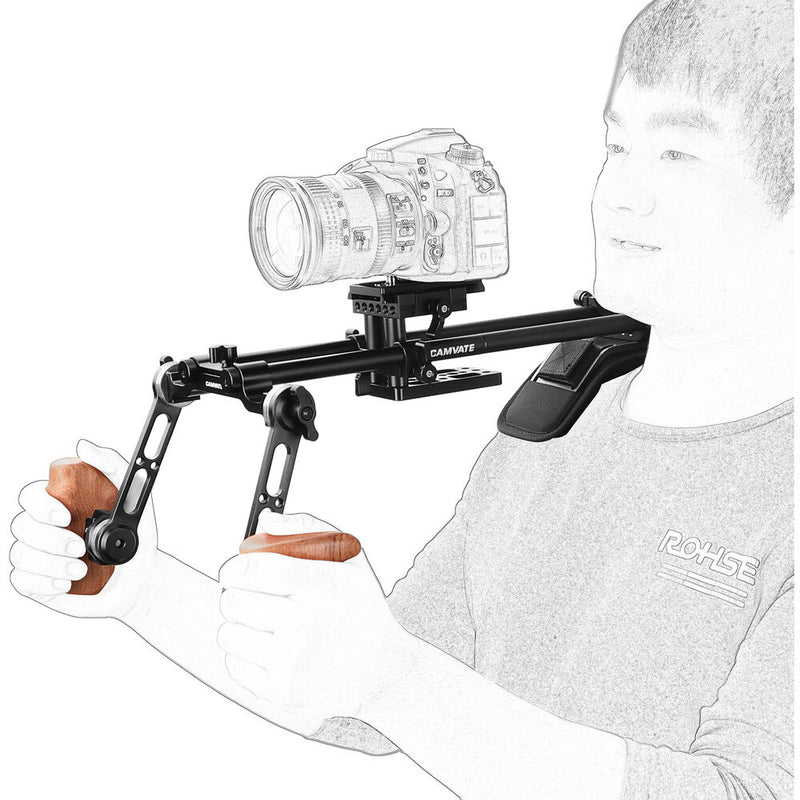

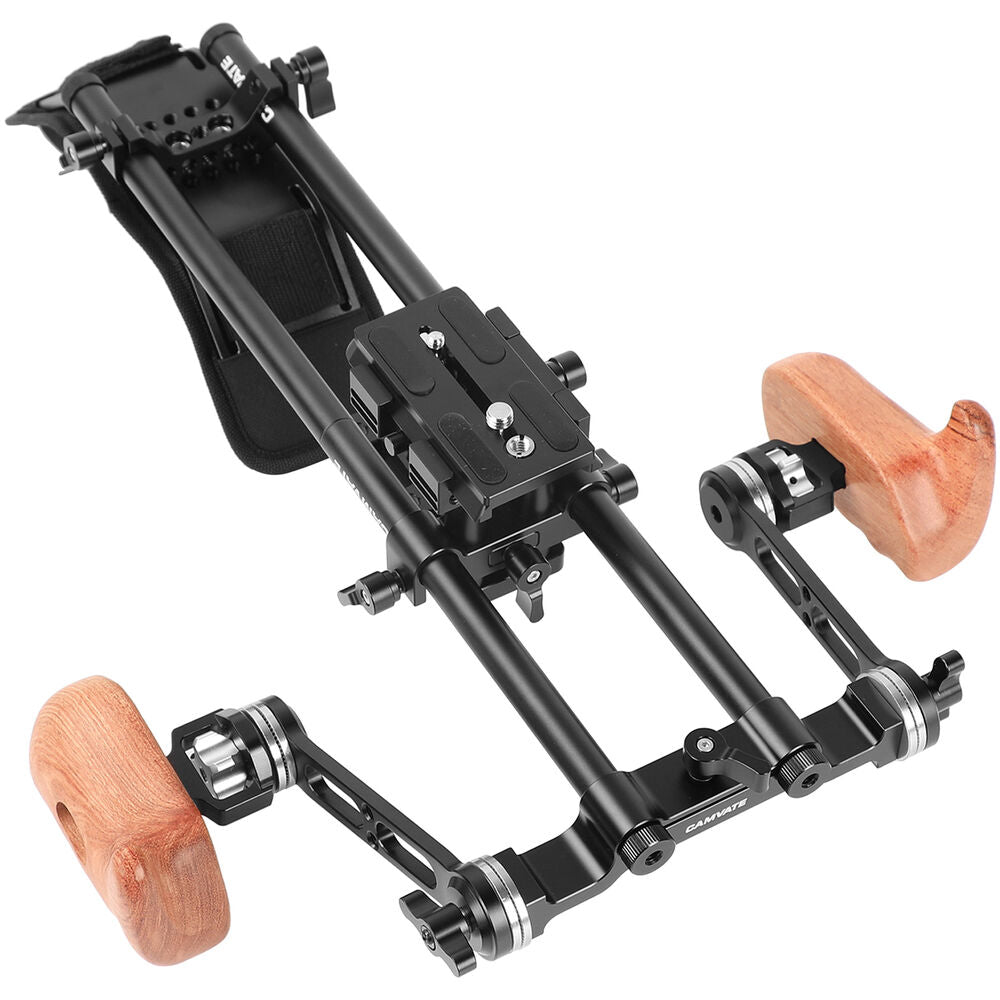

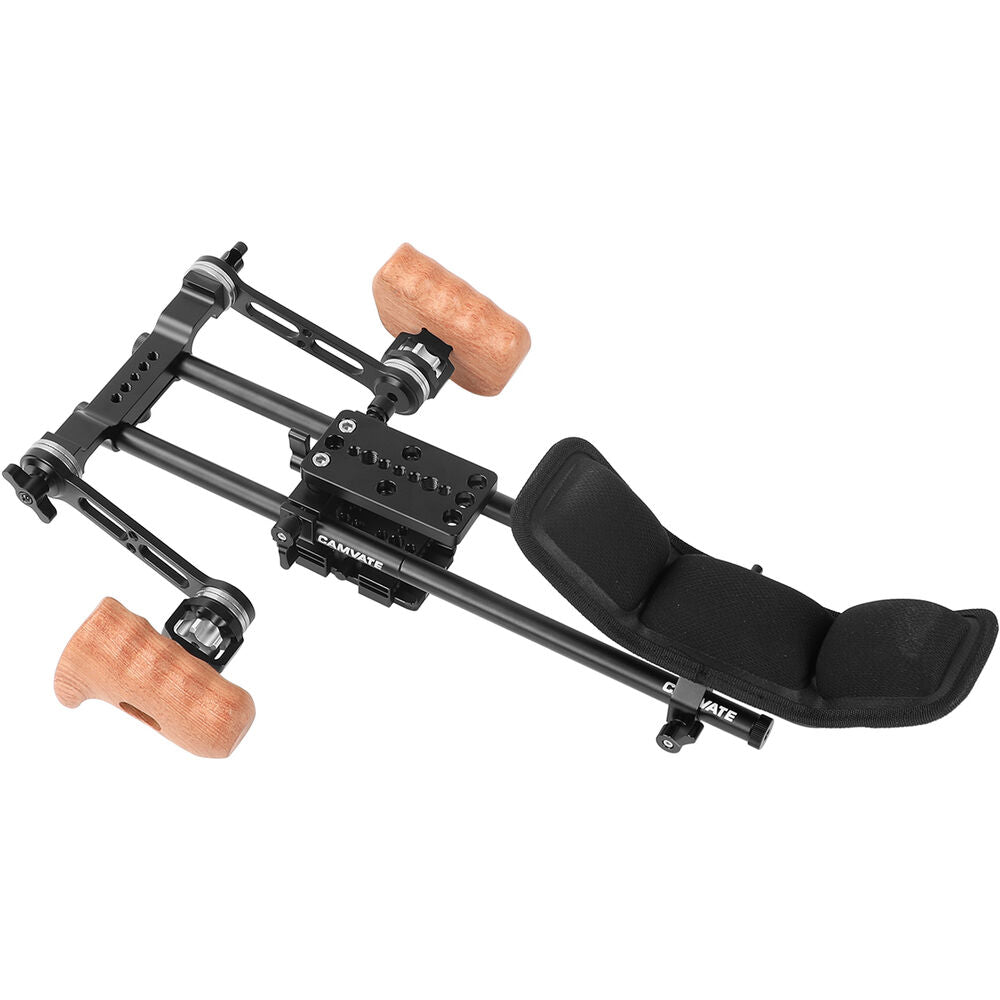

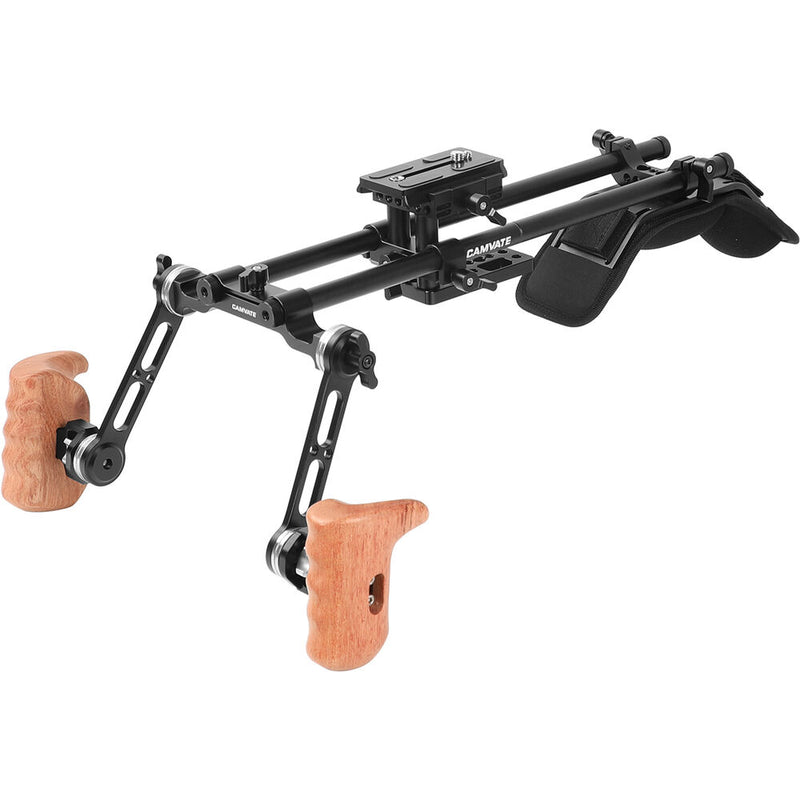

Add a shoulder rig to your DSLR, mirrorless, or small camera for long, mobile shoots with the Shoulder Mount Rig with QR Baseplate & Dual Wooden Handgrips from CAMVATE. The shoulder rig features a baseplate with a 15mm rod clamp, a Manfrotto-style quick release camera plate, a tripod plate, and a rod assembly that adjusts vertically. It also features four 15mm rods, an adjustable dual wooden handgrip assembly, and a padded shoulder mount.
The shoulder pad features a 15mm rod clamp and mounts onto a pair of the 15mm rods that attach to the baseplate. The rods connect to the baseplate and provide the ability to mount a wide variety of accessories such as extension arms, a battery slide, a monitor, follow focus, matte box, and more. The handgrip assembly mounts onto the front of the rods with a 15mm rod clamp and features rosettes that allow the handgrip extensions to rotate 360°, and the wooden handgrips can also rotate on the other end of the extensions to create a wide range of positions.
The Manfrotto-style quick release plate features 1/4"-20 and 3/8"-16 camera screws and allows you to transfer your camera to a Manfrotto-style standard tripod or other mount. The base of the baseplate also features numerous mounting threads for optional dovetail or tripod plates. A screw set, screwdriver, and Allen wrench are included to assemble the rig.
UPC: 757277492723

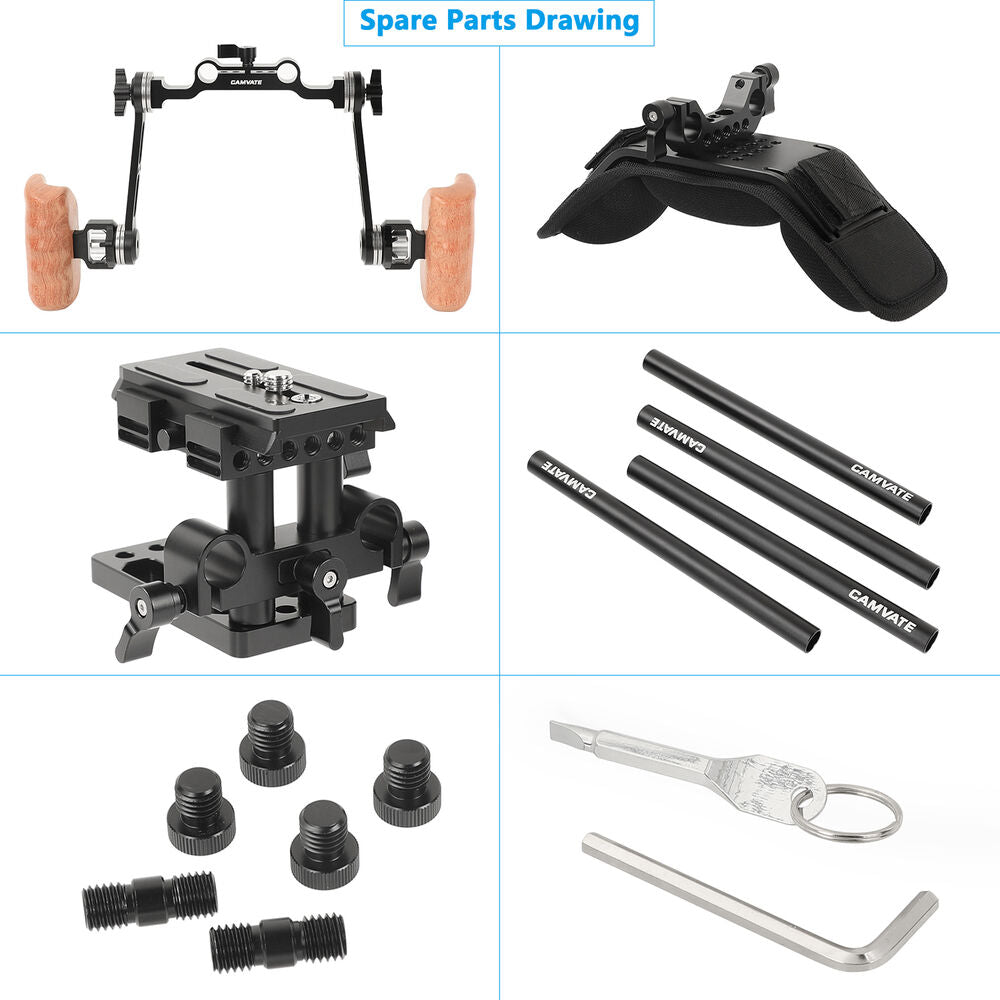

In the Box
- CAMVATE Shoulder Mount Rig with QR Baseplate & Dual Wooden Handgrips
- Shoulder Pad with 15mm LWS Rod Clamp
- Manfrotto-Style Quick Release Plate
- Adjustable 15mm Baseplate
- 2 x Wooden Handgrip
- 4 x 15mm Rod
- Dual-Rod Clamp with ARRI Rosettes
- 2 x Rosette Arm
- Allen Wrench
- Screwdriver
- Screw Set
- Limited 3-Year Warranty
CAMVATE C2635 Specs
Support Type |
Shoulder Support |
Grip Type |
Dual Handgrips |
Camera Compatibility |
Universal |
Mounting
Rod Standard |
15 mm LWS / 60 mm Spacing |
Included Rods |
4 x 15.7" / 40 cm 15 mm Aluminum Rod |
Battery Plate Type |
None |
Accessory Mounting |
None |
Camera Mounting |
Manfrotto 501 Plate with 1/4"-20 Screw, 3/8"-16 Screw |
Tripod Mounting |
Baseplate: 1/4"-20 Thread, 3/8"-16 Thread |
Rod Ports |
Baseplate: 2 x 15 mm Rod Port Shoulder Mount: 2 x 15 mm Rod Port Rod Blocks: 2 x 15 mm Rod Port |
Shoe Mounting |
None |
Rosettes |
Railblock: 2 x ARRI Rosette w/ M6 Thread |
General
Materials |
Aluminum, Wood |
Dimensions |
Not Specified by Manufacturer |
Weight |
3.64 lb / 1.65 kg |
Packaging Info
Package Weight |
4.035 lb |
Box Dimensions (LxWxH) |
10.2 x 7.2 x 5.9" |
