CAMVATE C2649 Overview
Add a baseplate to your rig for adding optional 15mm rods, follow focus, lens support, shoulder pad, matte box, or other accessories and mounts with this Quick Release Baseplate with 15mm Rod Clamp & Vertical Adjustment from CAMVATE. The baseplate features a quick release camera plate, a 15mm rod clamp with vertical adjustment, and a tripod baseplate.
Offering 1/4"-20 and 3/8"-16 tripod mounts on the bottom, this compact assembly allows you to mount your camera on tripods, sliders, and other gear and to be able to attach and remove the camera via quick release. Its vertical bar allows you to adjust the 15mm rod clamp to ensure your lens is level with a lens support, follow focus, or matte box, and it features measurement markers. The quick release plate is also compatible with Manfrotto 577, 501, 504, or 701 mounts.
![]()
UPC: 757277492853
In the Box
- CAMVATE Quick Release Baseplate with 15mm Rod Clamp & Vertical Adjustment
- Allen Wrench
- Limited 3-Year Warranty
CAMVATE C2649 Specs
| Support Type |
Baseplate, Rod Support System |
| Grip Type |
None |
| Camera Compatibility |
Universal |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Battery Plate Type |
None |
| Accessory Mounting |
None |
| Camera Mounting |
Manfrotto 501 Plate with 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting |
Baseplate: 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports |
Baseplate: 2 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Materials |
Aluminum |
| Dimensions |

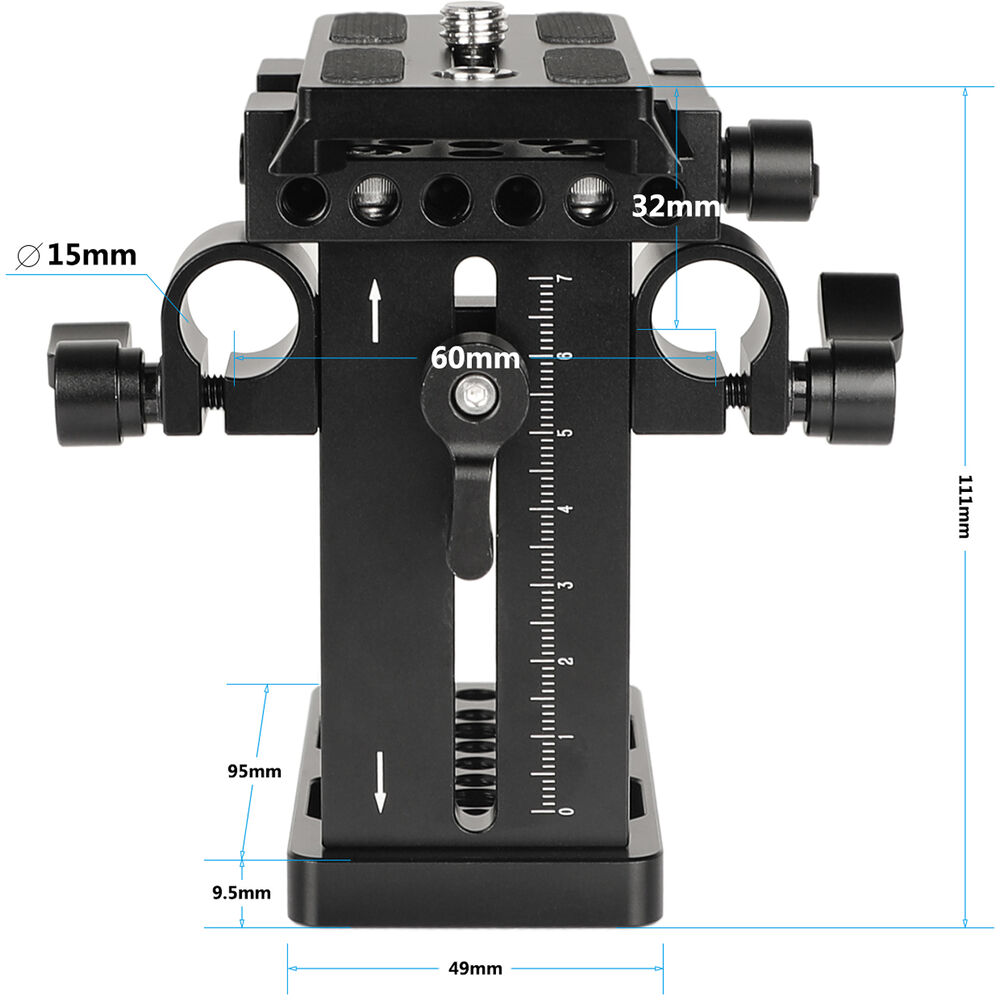

4.4 x 3.7 x 1.9" / 111 x 95 x 49 mm |
| Weight |
13.7 oz / 387.3 g |
Packaging Info
| Package Weight |
1.005 lb |
| Box Dimensions (LxWxH) |
6.5 x 4.9 x 3.2" |
