CAMVATE C2971 Overview

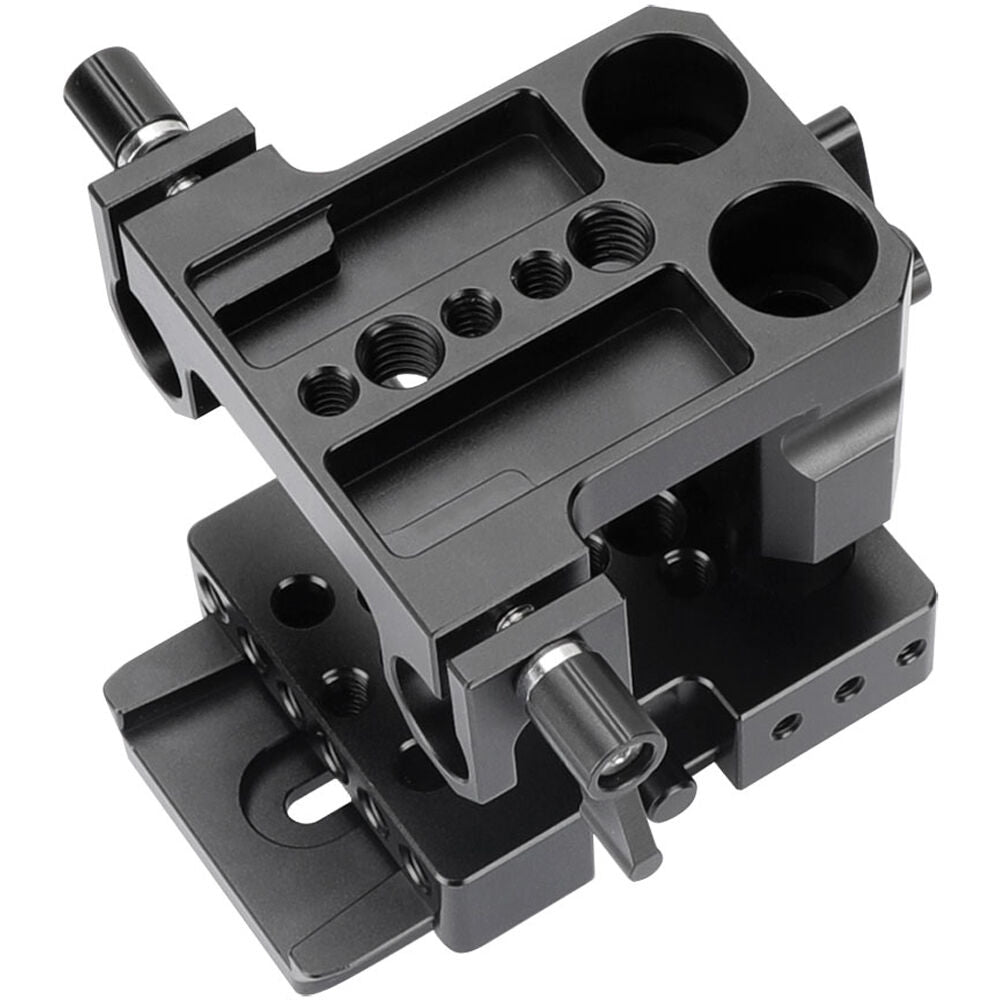

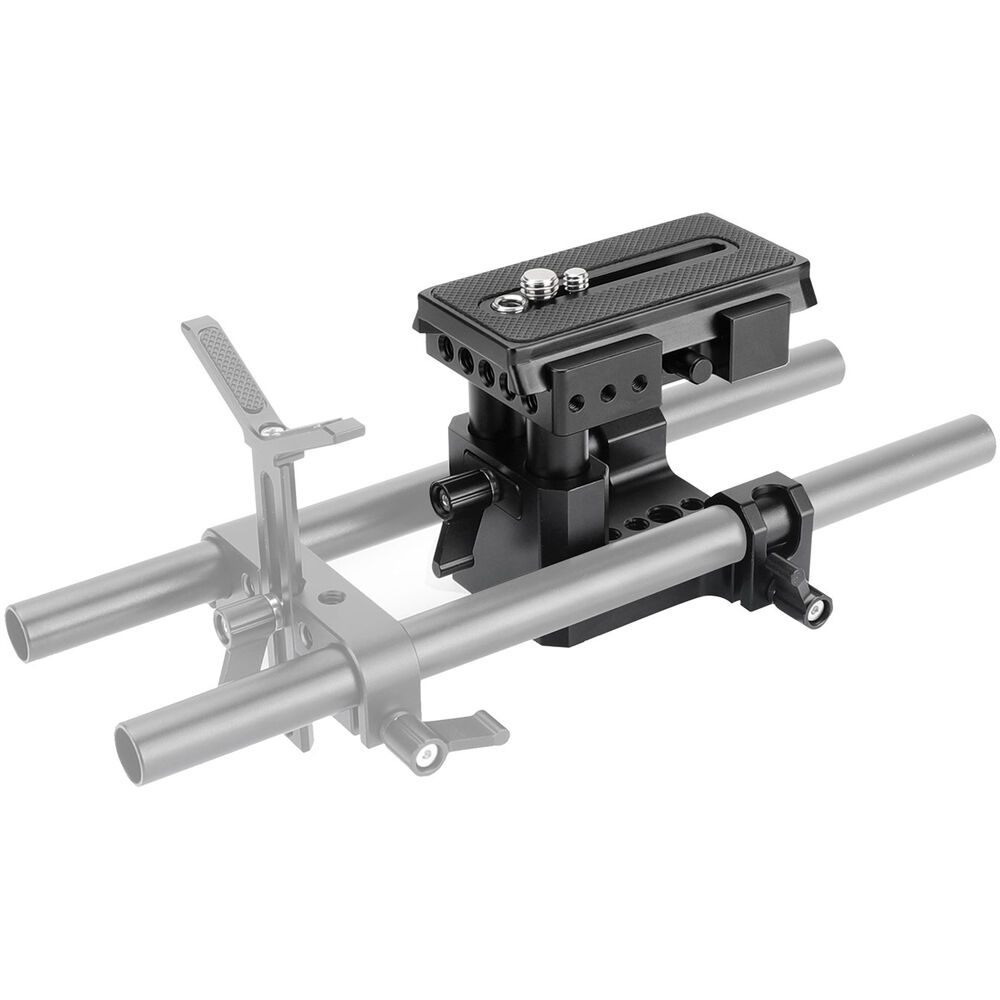

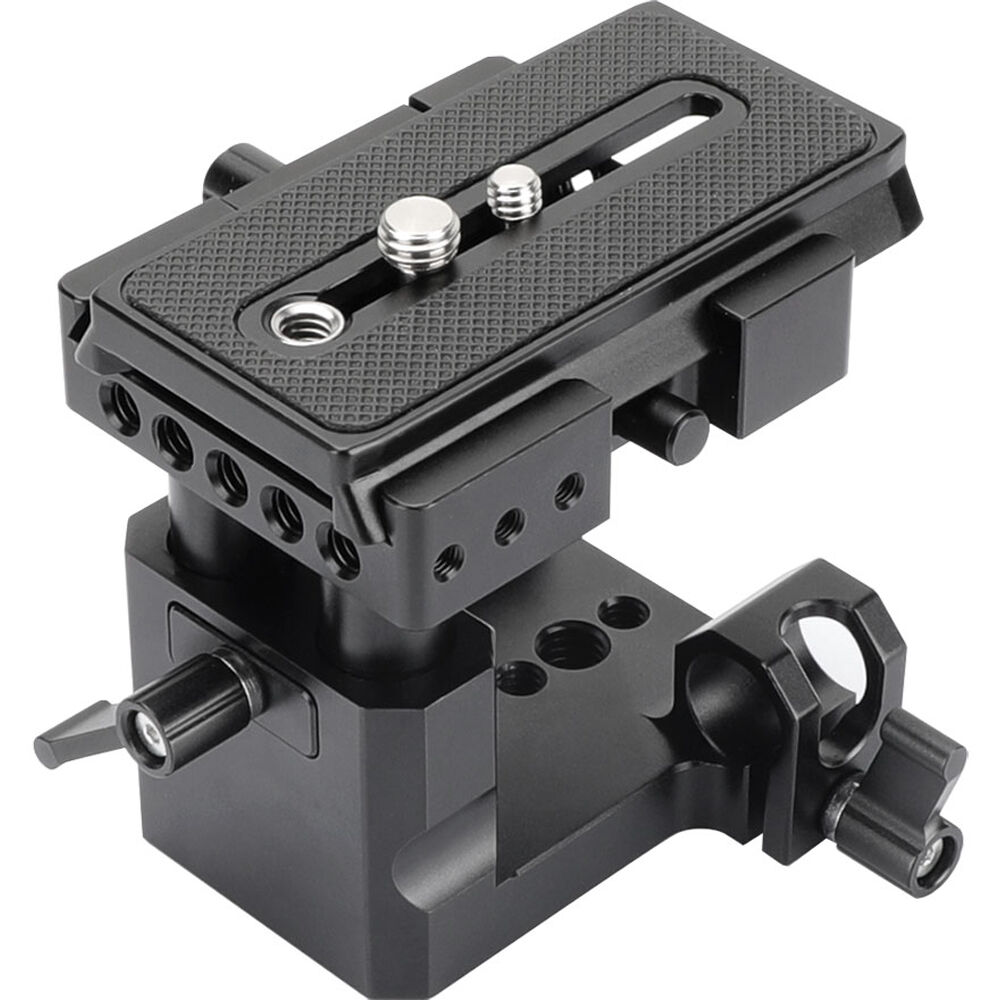

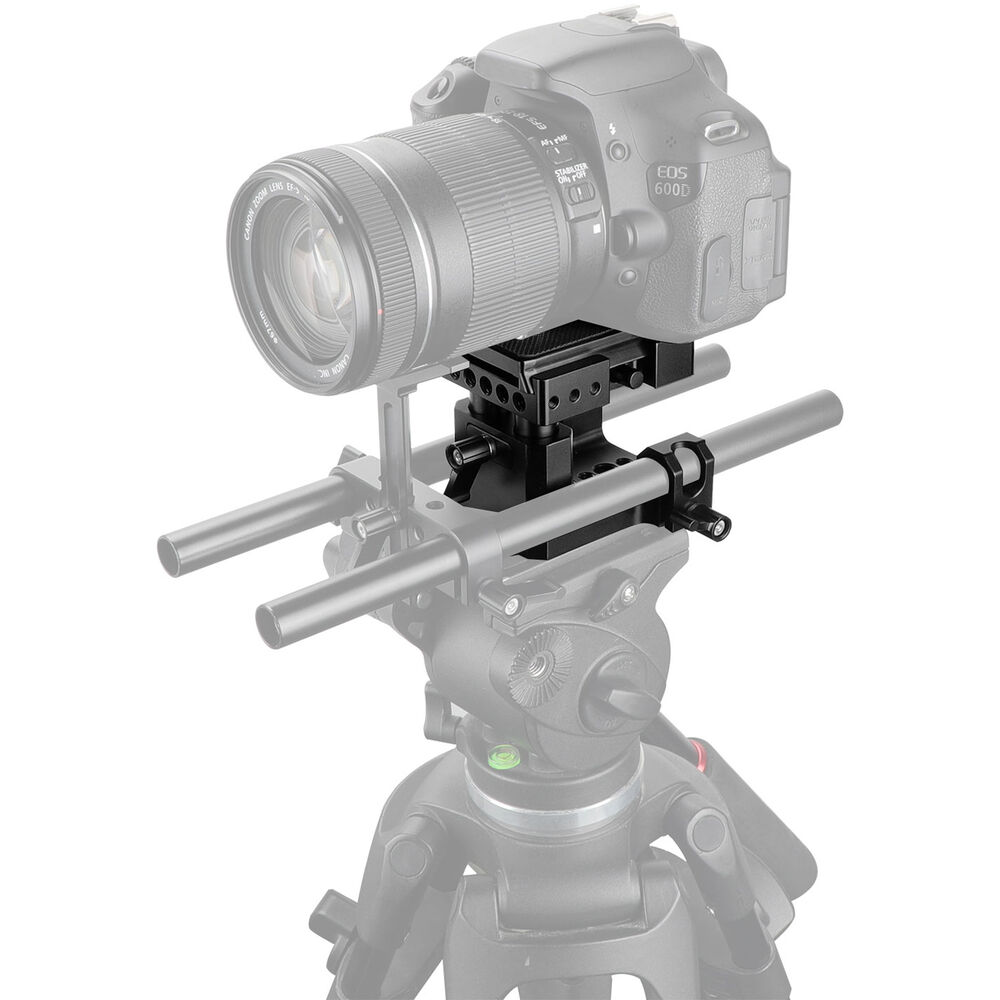

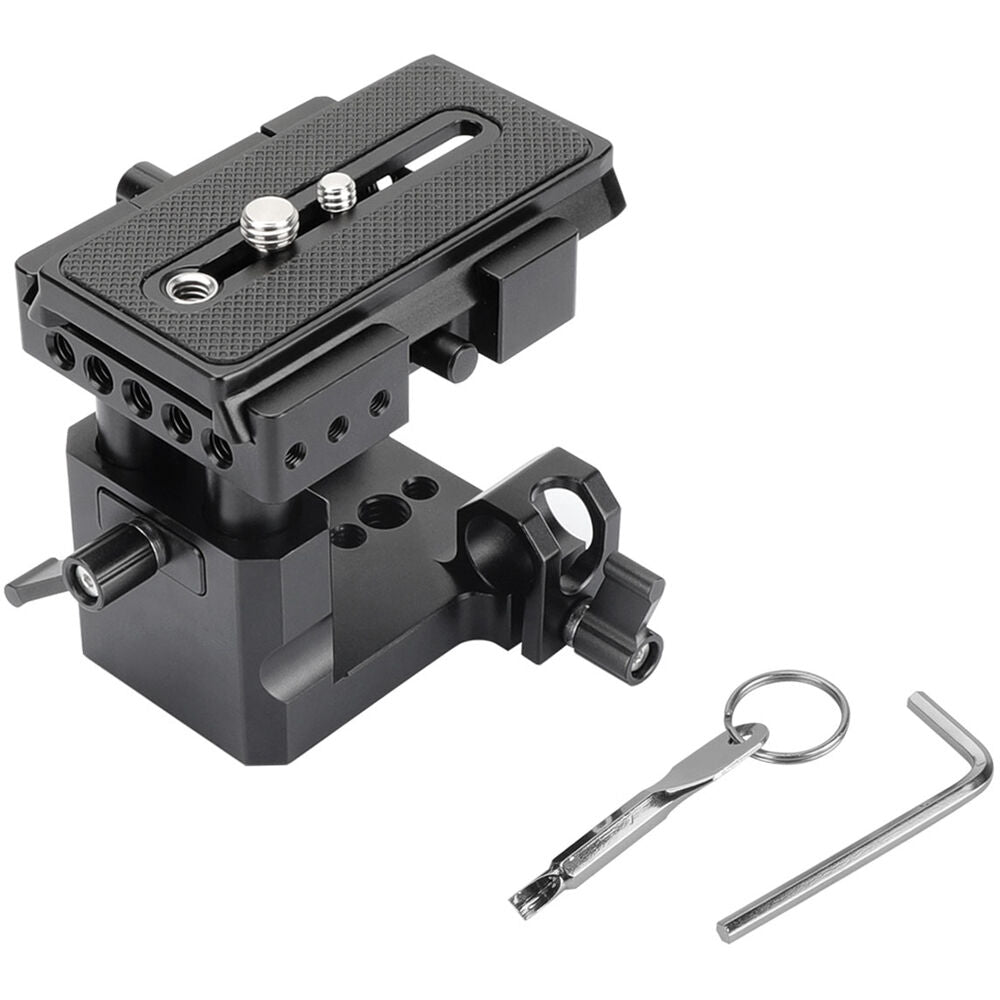

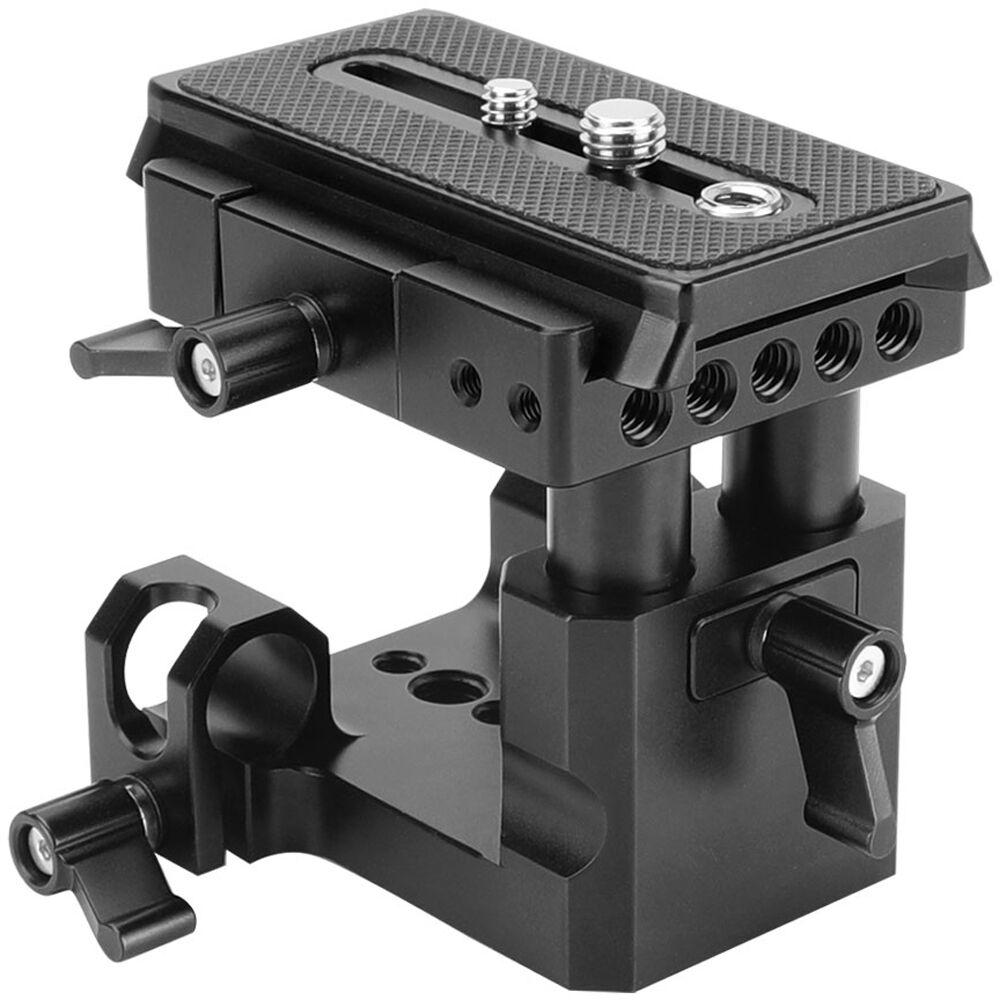

    This Quick Release 15mm Rod Clamp Mount and Top Plate Bundle from CAMVATE features a 15mm LWS rod clamp baseplate and quick release top plate for integration with Manfrotto tripod systems. The rod clamp system is height adjustable up to 1" to accommodate a follow focus system or lens hood. Various 1/4"-20, 3/8"-16, and M4 threads can incorporate lens supports and other accessories. Two screws on the quick release top plate, one 1/4"-20 and one 3/8"-16, secure to the bottom of your camera.









      Manfrotto 577, 501, 504, 701














CAMVATE C2971 Specs





        | Support Type |
        Baseplate |


        | Grip Type |
        None |






      Mounting




        | Rod Standard |
        15 mm LWS / 60 mm Spacing |


        | Battery Plate Type |
        None |


        | Accessory Mounting |
        Multiple x 1/4"-20 Female Thread, Multiple x 3/8"-16 Female Thread, 3 x M4 Female Thread |


        | Camera Mounting |
        1/4"-20 Male Screw, 3/8"-16 Male Screw |


        | Tripod Mounting |
        Baseplate: Manfrotto 501 |


        | Rod Ports |
        2 x 15 mm Rod Port |


        | Shoe Mounting |
        None |


        | Rosettes |
        None |






      General




        | Materials |
        Aluminum |


        | Dimensions |

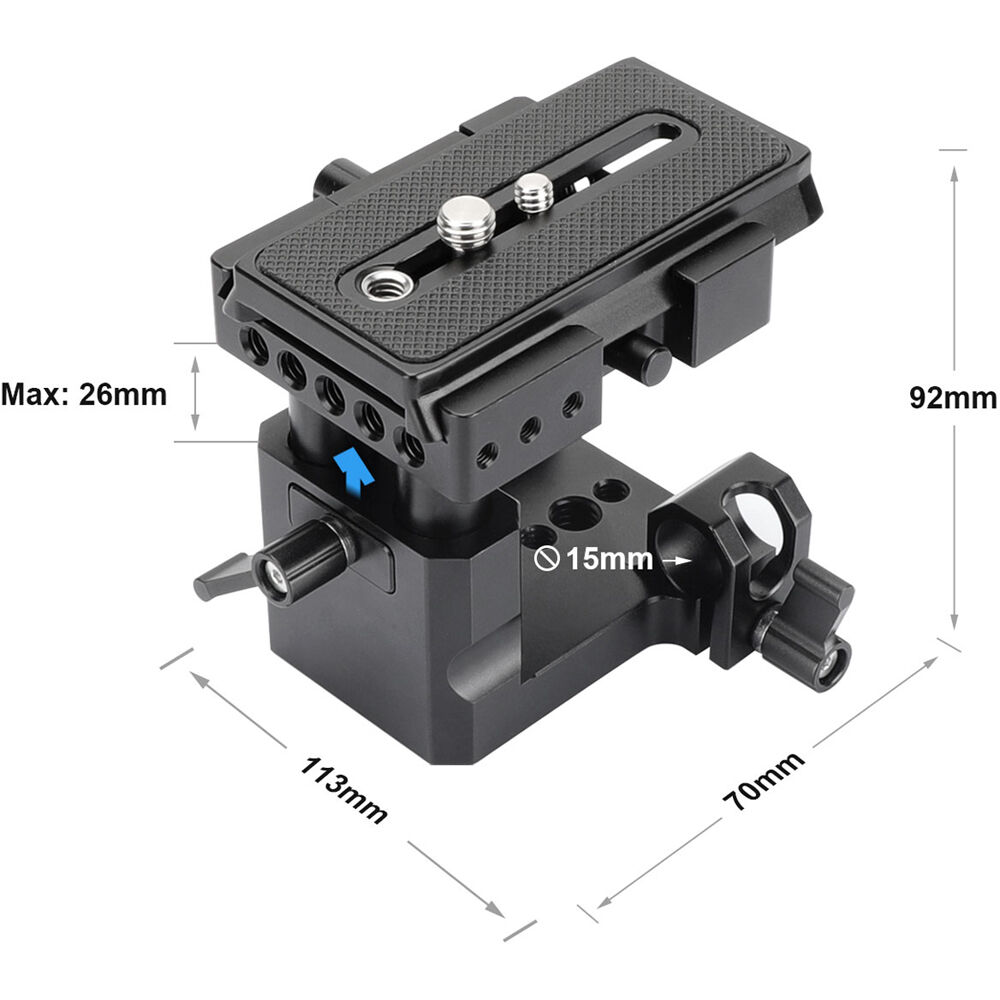

        4.4 x 3.6 x 2.8" / 113 x 92 x 70 mm Height: 1" / 26 mm (Maximum Height Adjustment) |


        | Weight |
        13.7 oz / 389 g |
