CAMVATE C2972 Overview

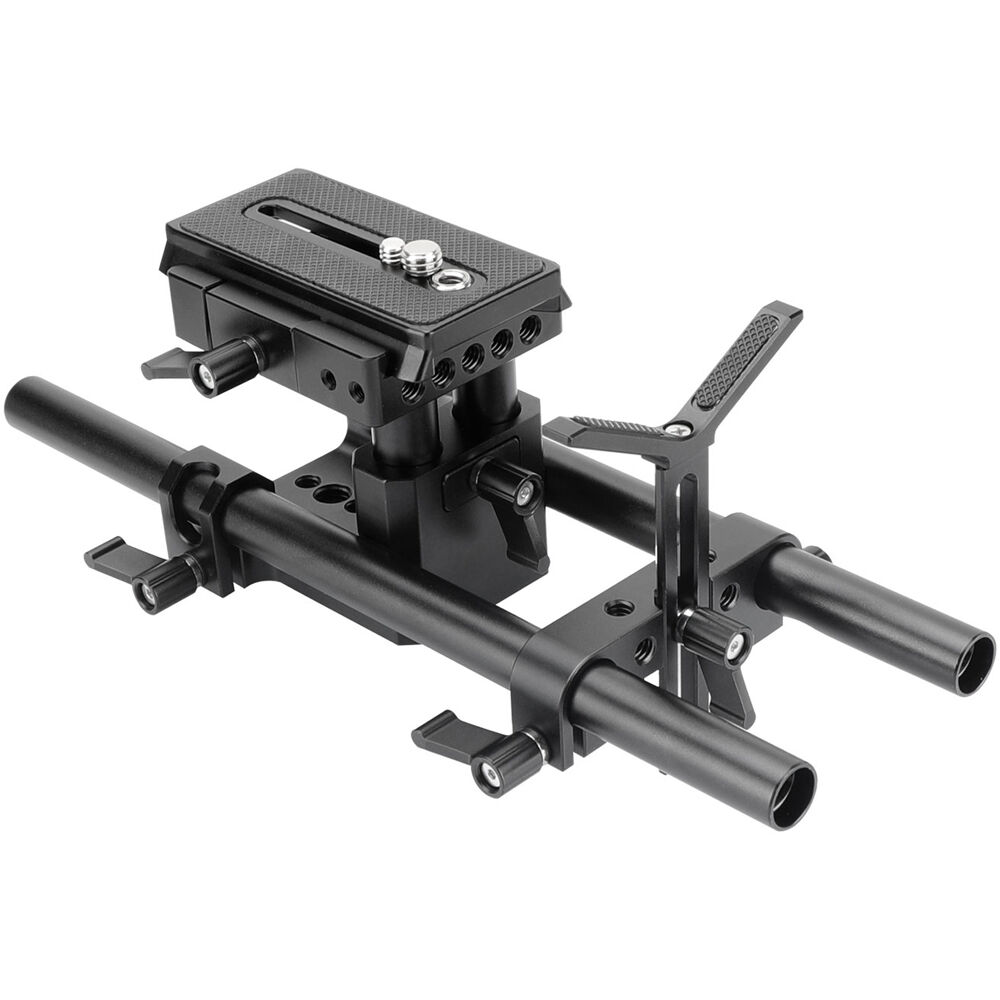

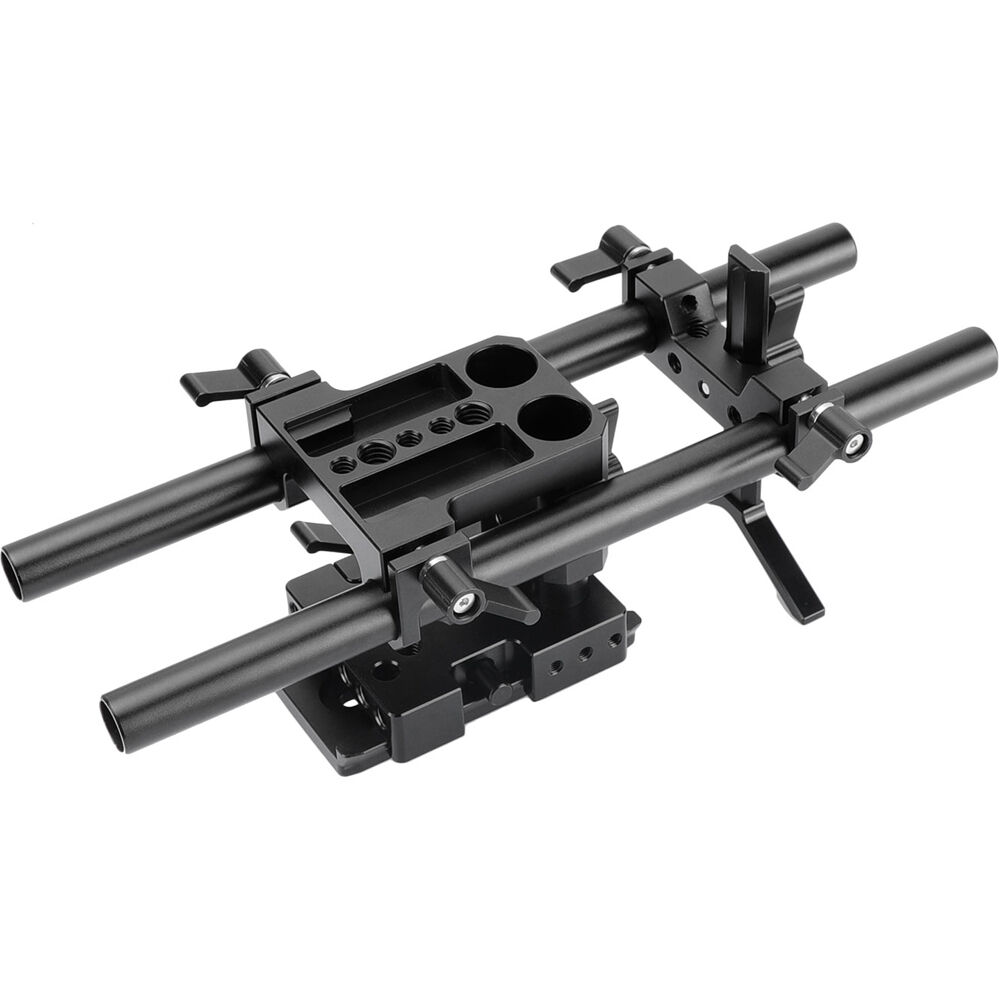

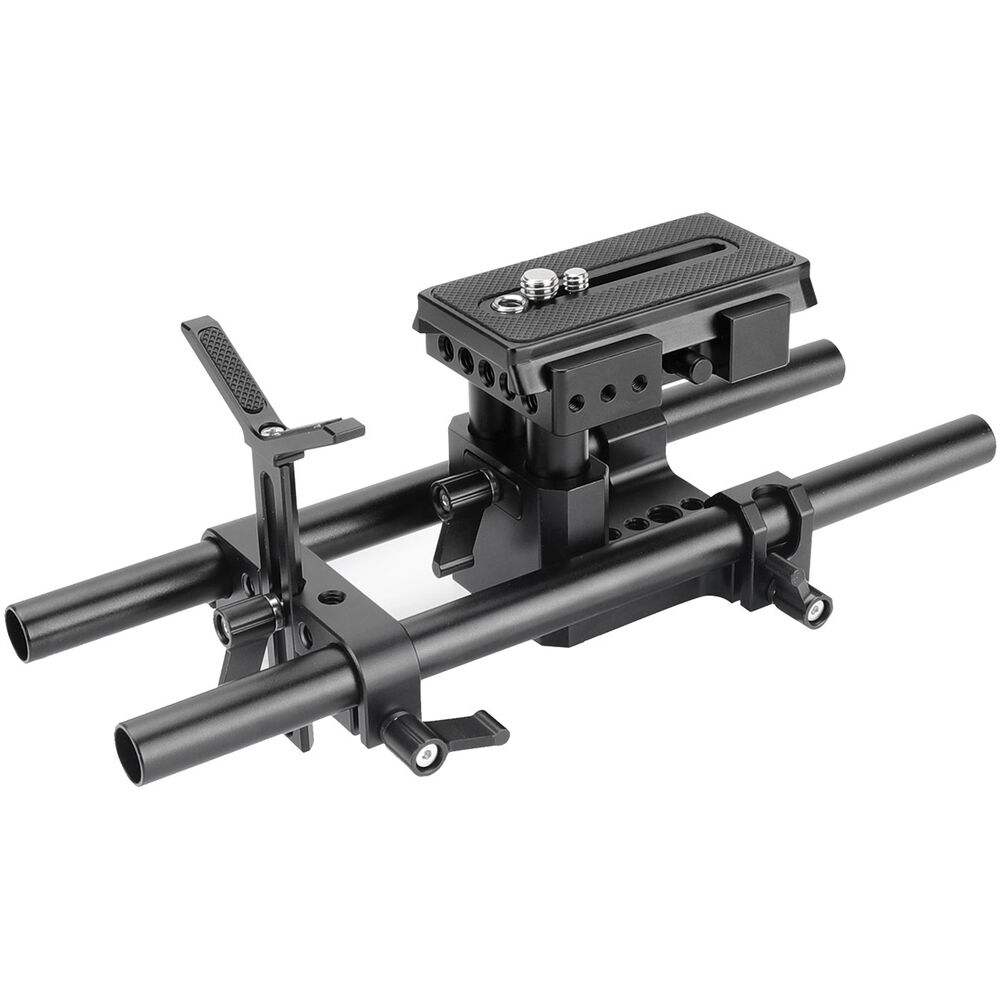

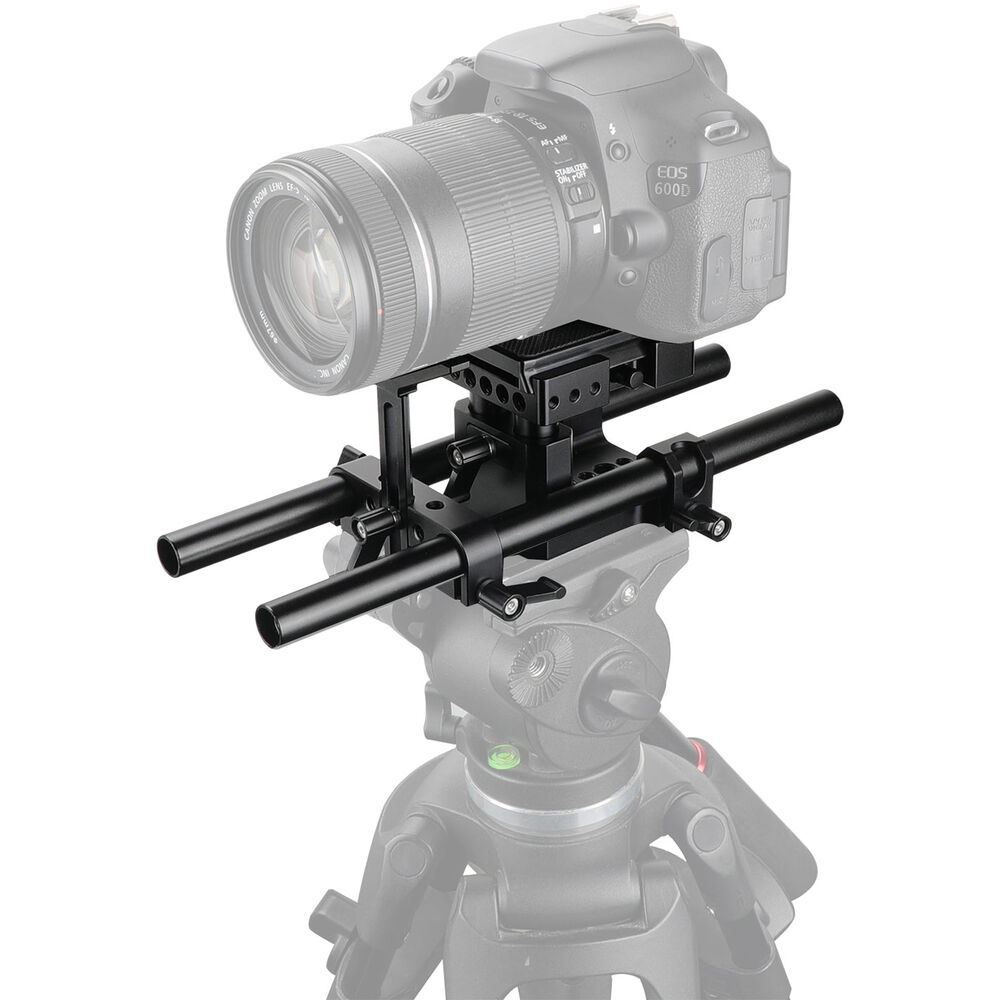

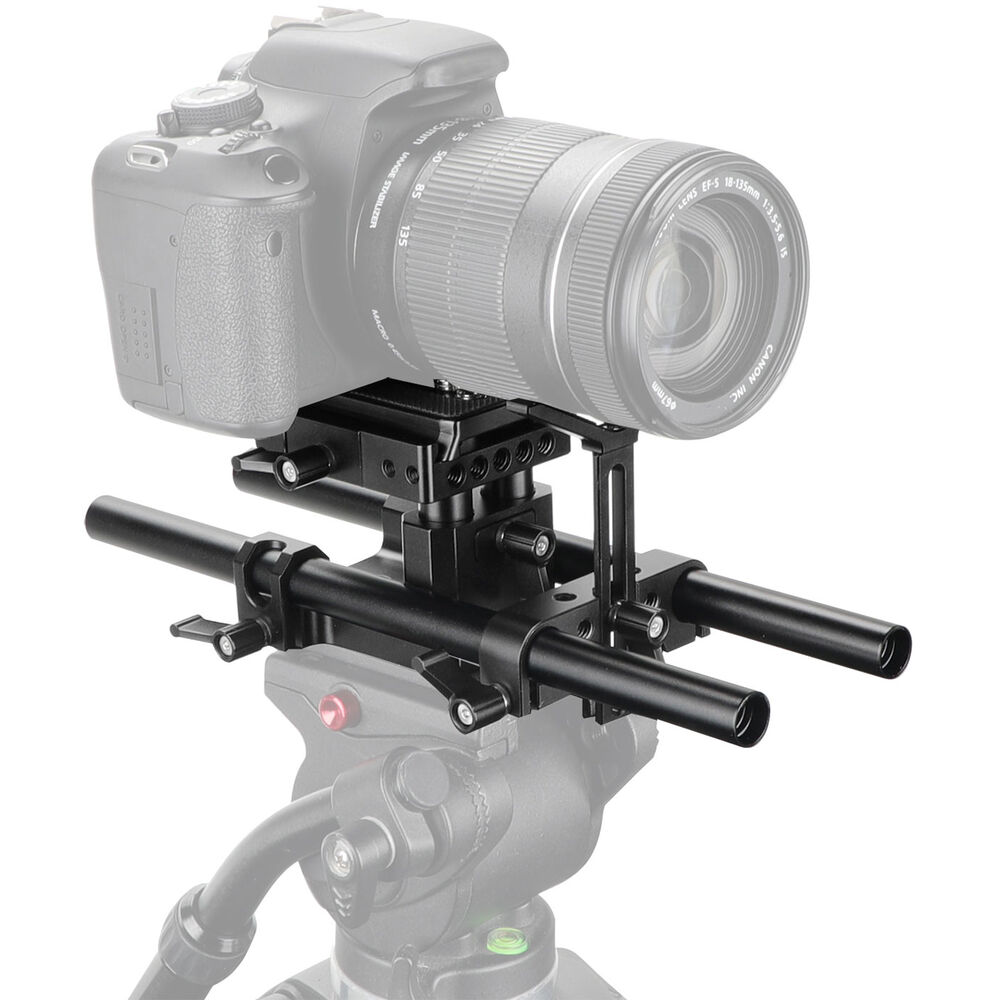

This Pro Shoulder Rig Bundle with Lens Support from CAMVATE outfits you with all the components you need to create a 15mm LWS compatible shoulder rig for your DSLR camera or camcorder. A camera plate attaches to the bottom of your recording device of choice with its built-in 1/4"-20 and 3/8"-16 screws. The plate then slides into a mounting plate featuring a 15mm LWS rod clamp, which attaches to the included aluminum rods.
Additional support for your camera's lens connection is achieved with the lens support bracket, also attached to a rod clamp for integration into the rod-mounted system. Various 1/4"-20 and 3/8"-16 threads on the mounting plate offer places to attach battery plates or articulating arms to the rig. All the components are constructed with aluminum alloy for a lightweight and durable design.

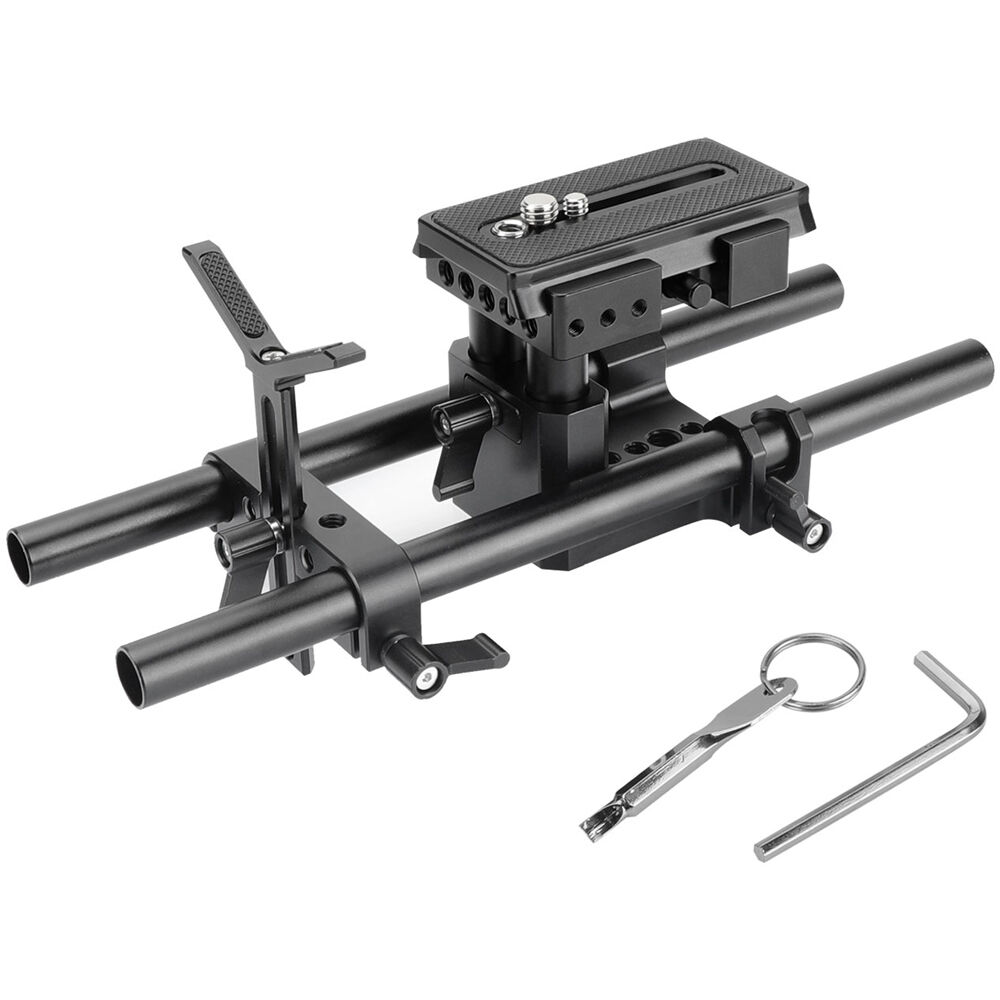

In the Box
- CAMVATE Pro Shoulder Rig Bundle with Lens Support
- Camera Mounting Plate
- Mounting Plate with 15mm LWS Rod Clamp
- 2 x 15mm Aluminum Alloy Rod (7.9")
- Lens Support Bracket with 15mm LWS Rod Clamp
- Allen Key
- Wrench
CAMVATE C2972 Specs
| Support Type |
Shoulder Support |
| Configuration |
Lens Support Bracket |
| Grip Type |
None |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Included Rods |
2 x 7.9" / 20 cm 15 mm Aluminum Rod |
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x 1/4"-20 Female Thread, Multiple x 3/8"-16 Female Thread |
| Camera Mounting |
1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Rod Ports |
2 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Materials |
Aluminum |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
20.5 oz / 580 g |
