CAMVATE C2577 Overview

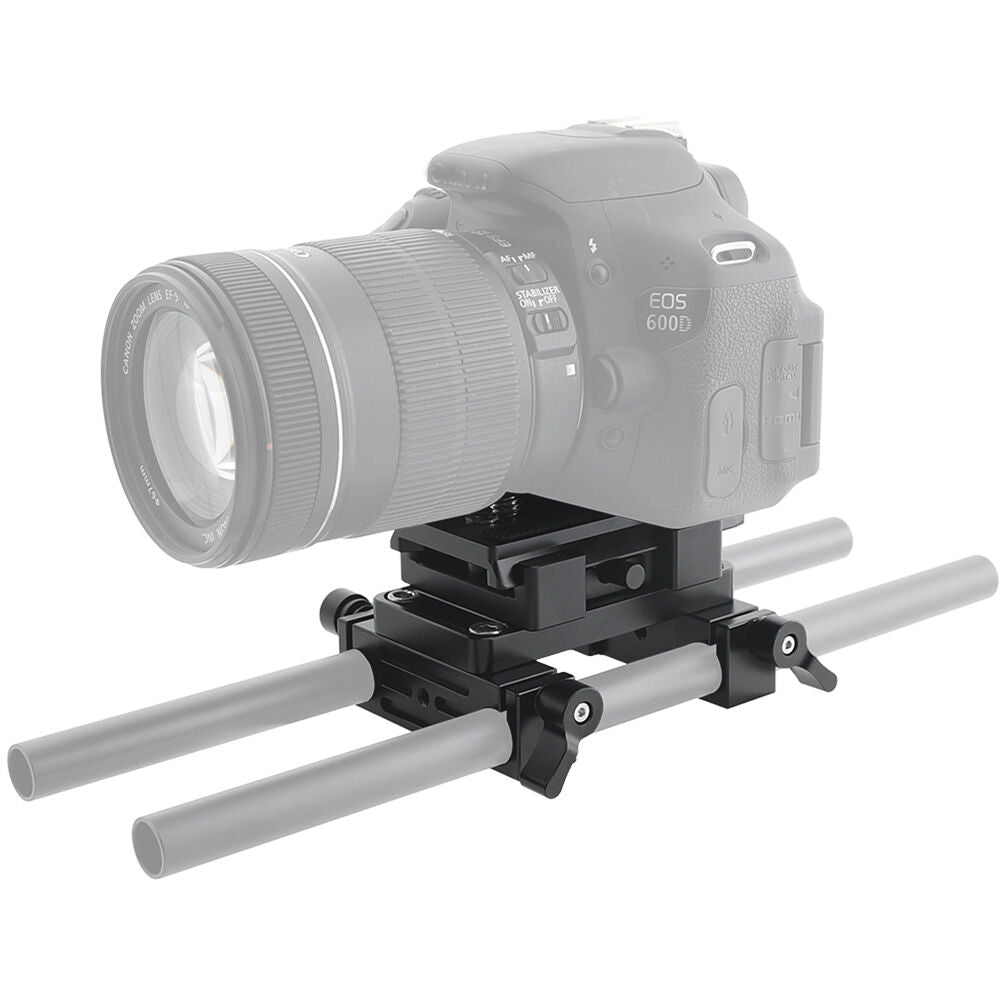

The CAMVATE Manfrotto-Type Quick Release Baseplate consists of several components connected to a single rod-mount baseplate with a camera plate compatible with Manfrotto 501, 504, 577, and 701 tripod heads. With dual 15mm LWS rod clamps, the baseplate allows you to install optional rods of various lengths and grow the baseplate into a rig with a shoulder pad, handgrips, follow focus, matte box, and other accessories, with your camera attached on top.
UPC: 757277492228

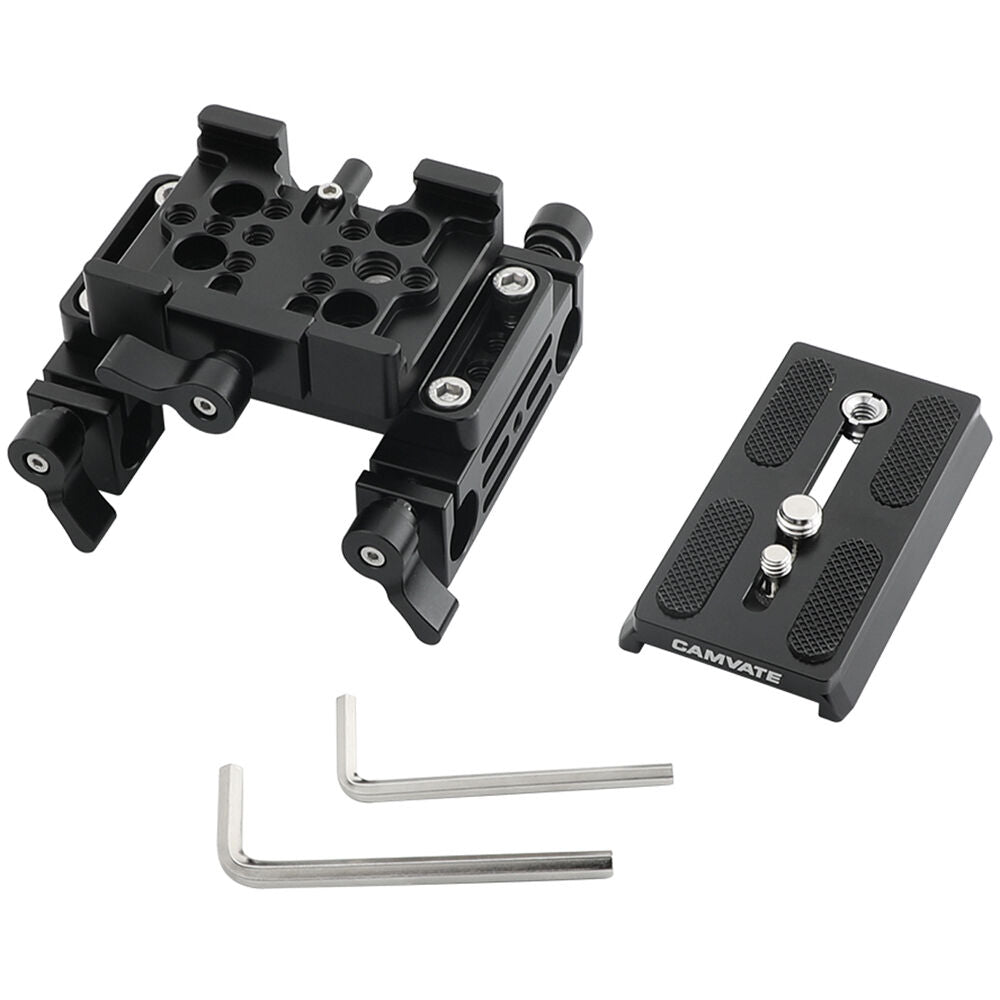

In the Box
- CAMVATE Manfrotto-Type Quick Release Baseplate with 15mm LWS Rod Support
- Quick Release Camera Plate with 1/4"-20 and 3/8"-16 Screws
- 2 x Allen Key
- Limited 3-Year Warranty
CAMVATE C2577 Specs
Support Type |
Baseplate, Rod Support System |
Grip Type |
None |
Mounting
Rod Standard |
15 mm LWS / 60 mm Spacing |
Battery Plate Type |
None |
Accessory Mounting |
None |
Camera Mounting |
Quick Release Plate with 1/4"-20 Screw, 3/8"-16 Screw |
Rod Ports |
4 x 15 mm Rod Port |
Shoe Mounting |
None |
Rosettes |
None |
General
Construction |
Aluminum |

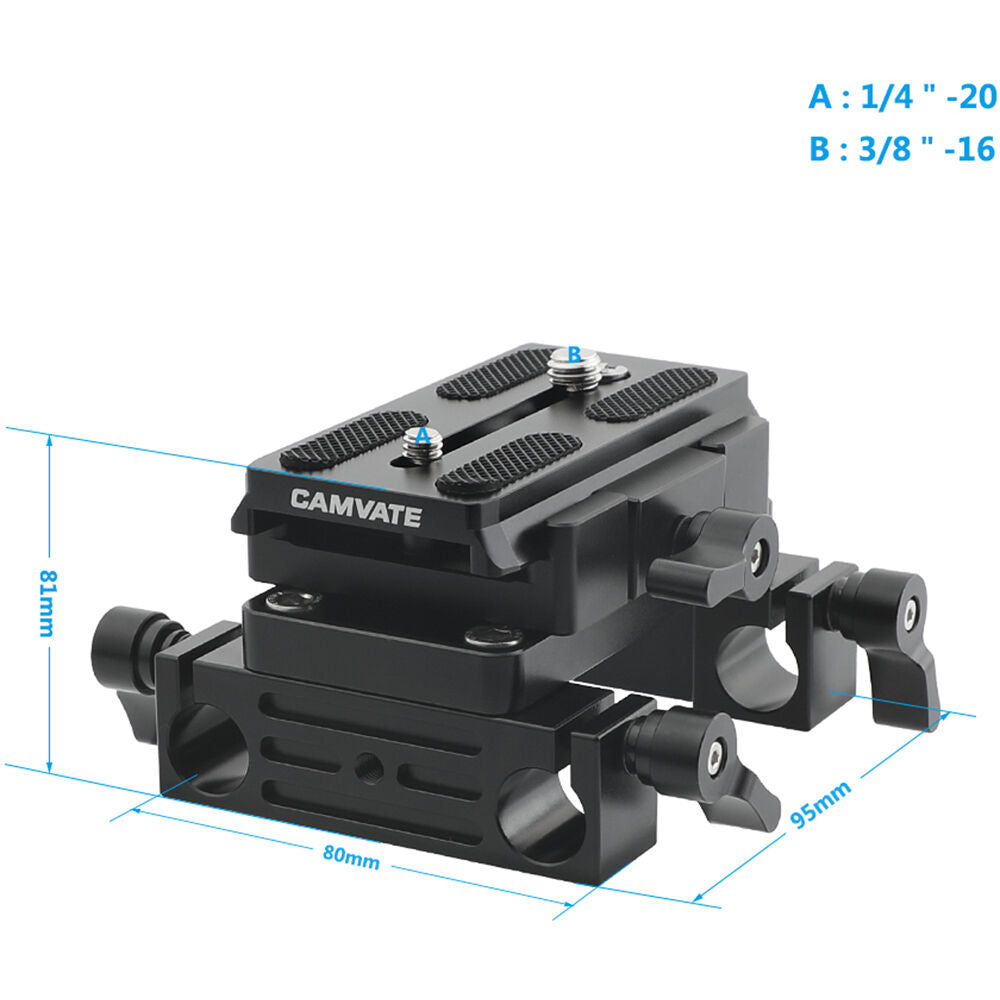

Dimensions |
Length: 3.7" / 95 mm Height: 3.2" / 81 mm |
Weight |
1 lb / 450 g |
Packaging Info
Package Weight |
1.165 lb |
Box Dimensions (LxWxH) |
6.4 x 5 x 3.2" |
