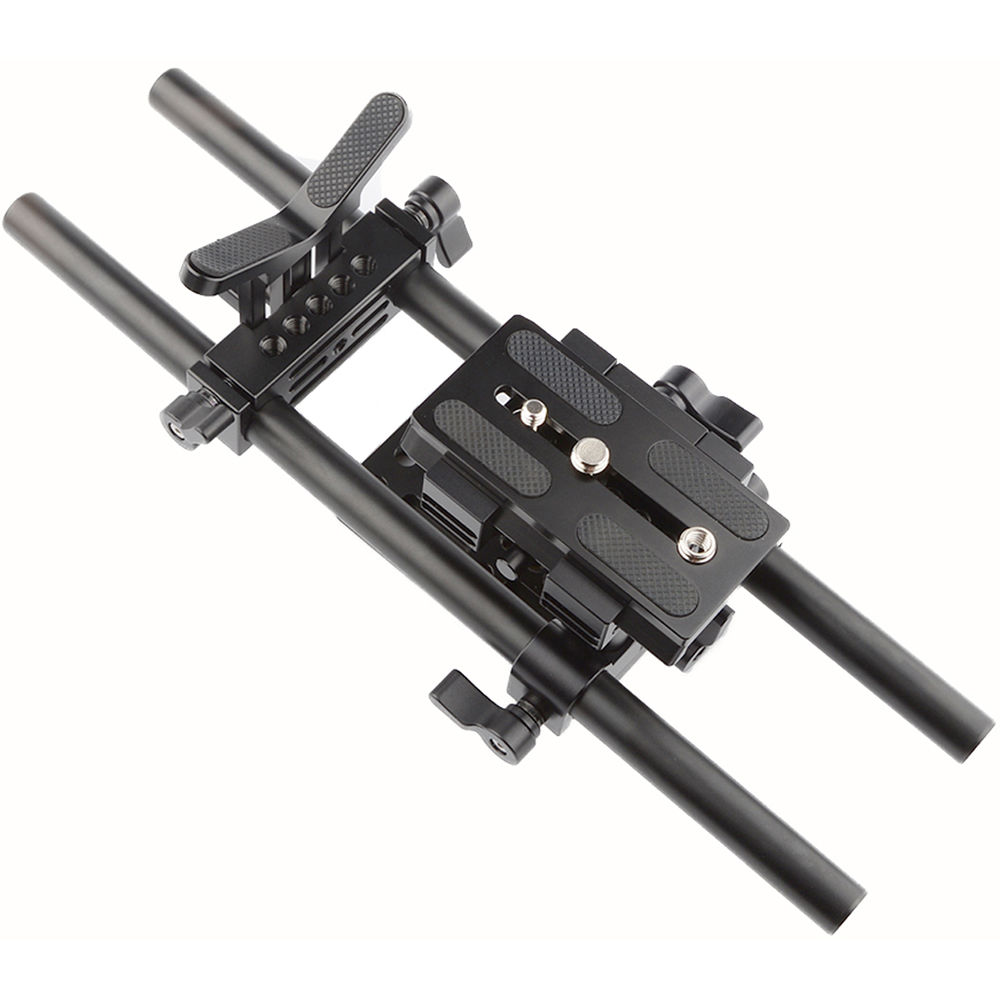

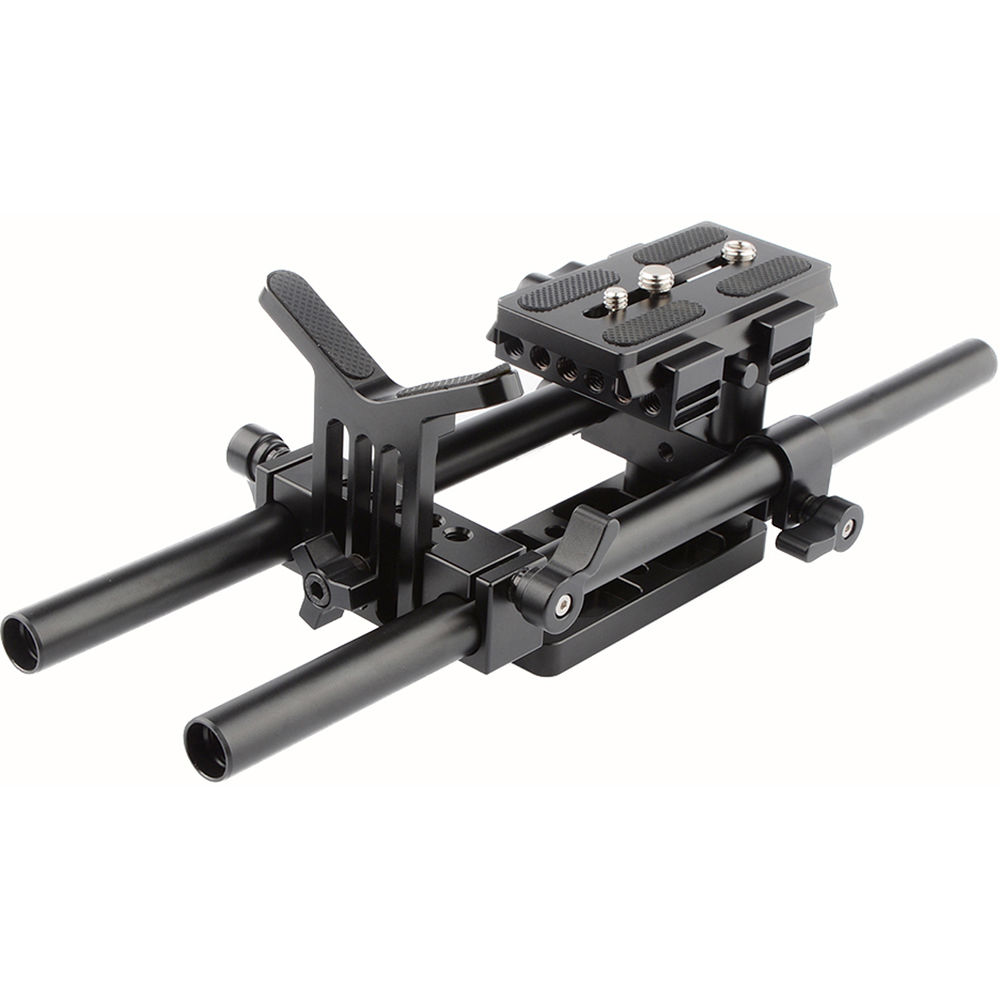

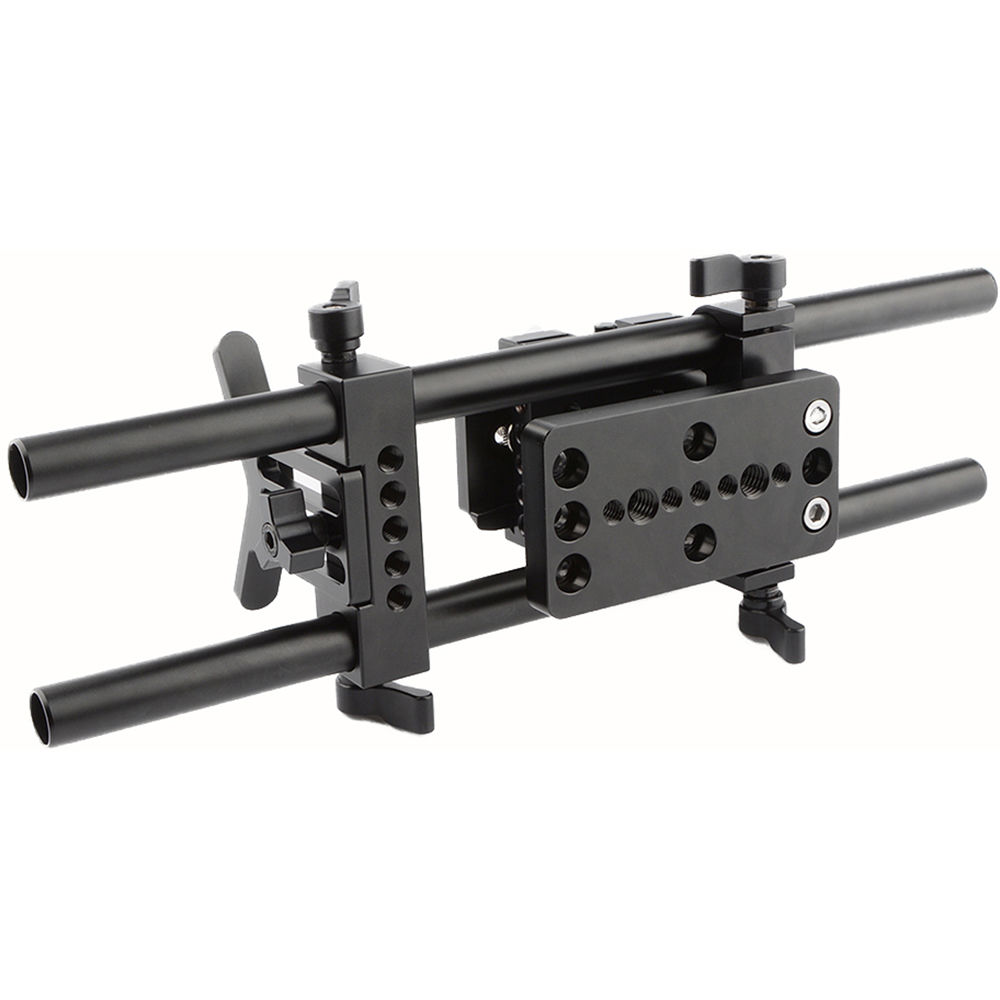

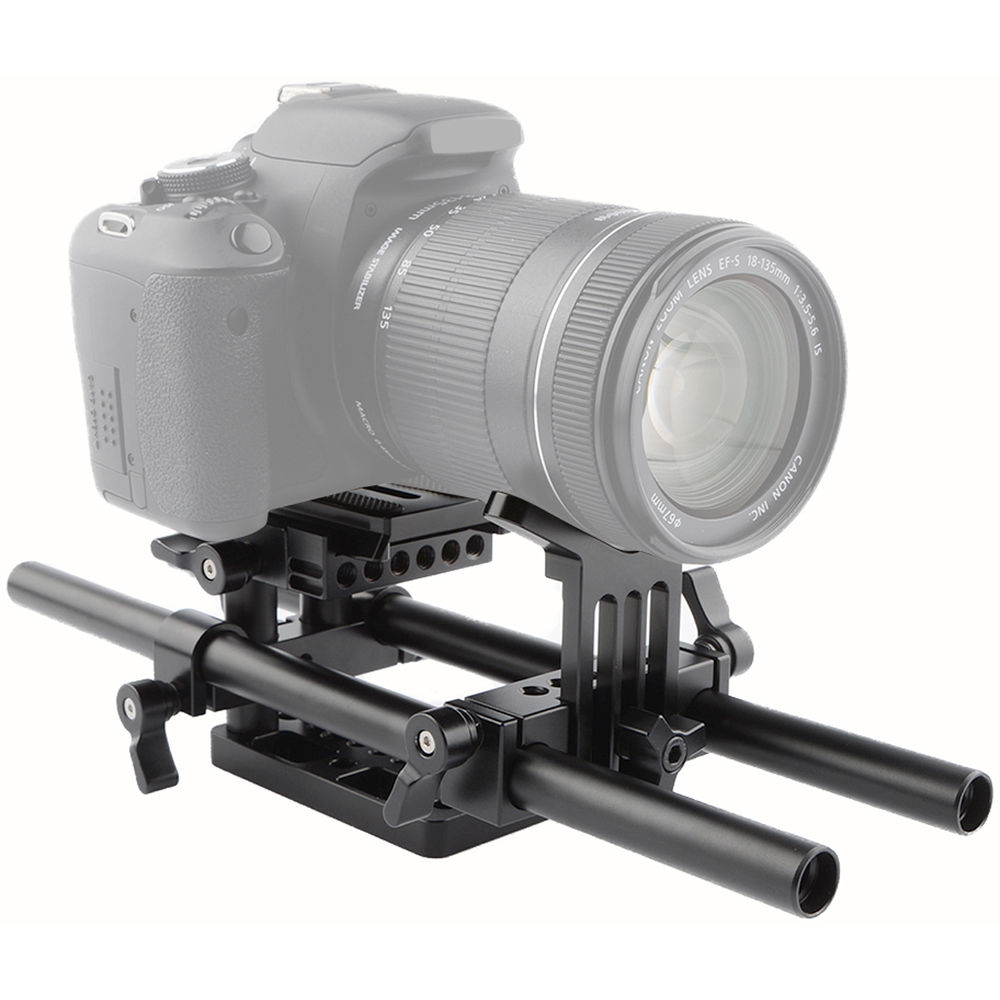

1/4"-20 and 3/8"-16 Mounting ThreadsTwo 15mm Rod ClampsIncludes 1/4"-20 and 3/8"-16 ScrewsLens Support The DSLR Shoulder Mount Rig with Manfrotto Quick Release Plate & Lens Support from CAMVATE features 1/4"-20 and 3/8"-16 mounting threads for mounting onto separately available tripods, as well as two 15mm rod clamps for enhanced stability. The Manfrotto QR plate features 1/4"-20 and 3/8"-16 mounting screws for attaching a camera. The Y-shaped lens support bracket features rubber pads on top for eliminating lens vibration. It is height adjustable up to 2.36" and fits a 50 to 140mm lens diameter range. The rig is equipped with two 11.8" rods which provide mounting options for accessories such as a matte box or follow focus, and the 15mm diameter spacing holes support any separately available 15mm rod rigs.
Portable pro rig for shoulder mount rig Fits DSLR cameras and camcorders with a 1/4"-20 or 3/8"-16 mounting thread Adjustable Y-shaped lens support bracket Easy-to-assemble and durable construction Aluminum alloy material UPC: 756790474483
| Camera Mounting Screws | 1/4"-20 and 3/8"-16 |
| Mounting Threads | 1/4"-20 and 3/8"-16 |
| Rod Standard | 15 mm |
| 15mm Rod Length | 11.8" / 30 cm |
| Hole Spacing | 3.36" / 60 mm |
| Height Adjustable | Up to 3.36" / 60 mm |
| Lens Diameter | 50 to 140mm |
| Material | Aluminum Alloy |
| Weight | 1.5 lb / 671.5 g |
| Package Weight | 1.795 lb |
| Box Dimensions (LxWxH) | 11.9 x 5.2 x 4" |

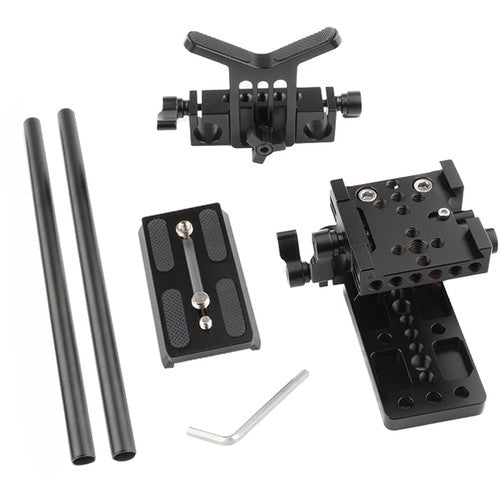

In the Box
- CAMVATE DSLR Shoulder Mount Rig with Manfrotto Quick Release Plate & Lens Support
- 2 x 15mm Rod (11.8")
- Lens Support Bracket with 15mm Rod Clamp
- Tripod Mounting Plate System with 15mm Rod Clamp
- Manfrotto-Type Quick Release Plate
- Allen Key
- Limited 3-Year Warranty
