CAMVATE Double-Sided V-Lock Mounting Plate Power Supply Splitter

Dual-Battery Mount Plate for V-Lock

Battery Quick Release

Two D-Tap Ports

5/7.2/12/14.8V D-Tap Output

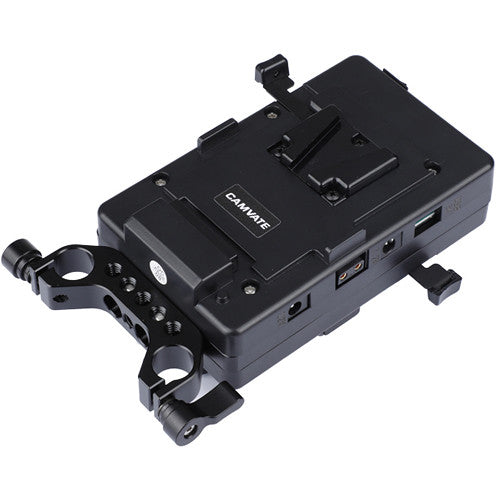

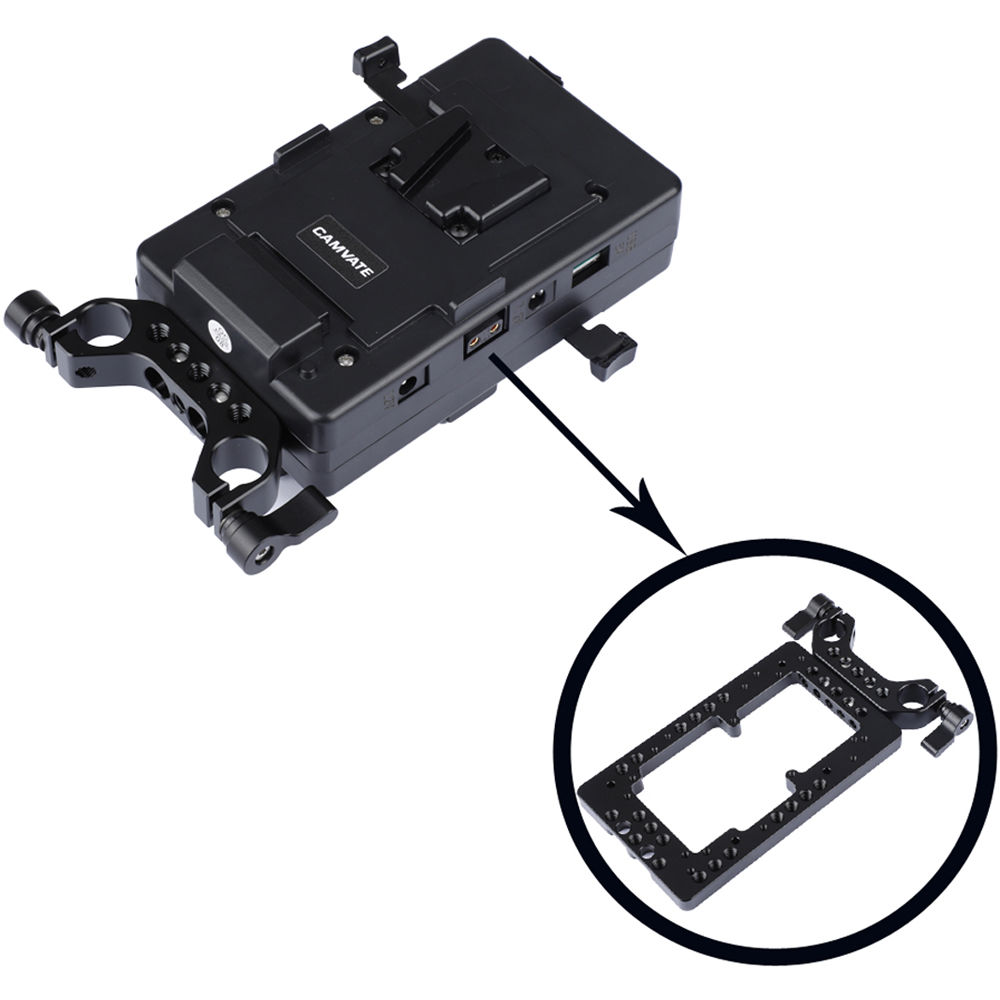

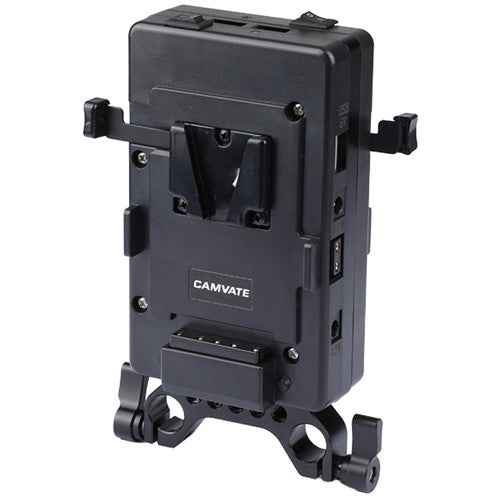

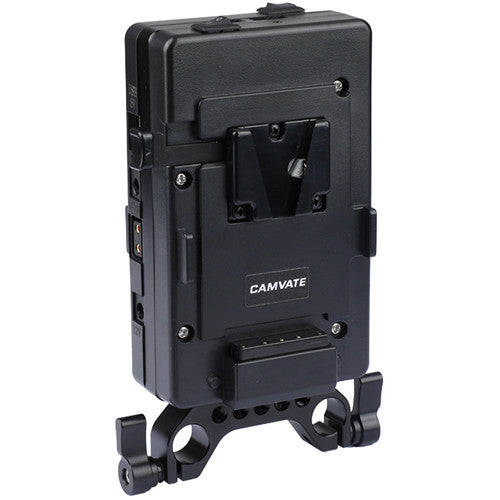

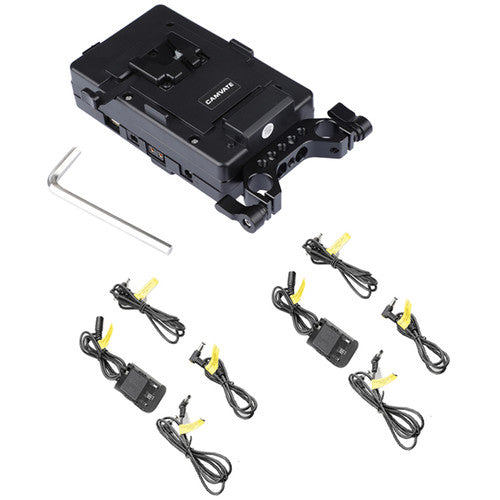

The V-Lock Mounting Plate Power Supply Splitter from CAMVATE is a quick release plate for two V-mount batteries. It features a USB, a D-Tap, and two DC barrel output ports on each side. The D-Tap ports provide 12, 7.2, 5, and 14.8V output voltages. The 1/4"-20 and M3 holes and a 15mm rod clamp give you flexible options for rig expansion. This battery splitter can mount directly onto the back of an URSA Mini camera. There are eight power cable adapters included, two with LP-E6 dummy batteries.

15mm LWS clamp bracket 12V output voltage for a monitor screen 7.2V output voltage for a Canon 6D, 7D, 60D, 70D, or 5D Mark II/III 5V output voltage for a recorder, H4N microphone, and frequency divider LP-E6 dummy battery for Canon EOS 6D, 7D, 60D, 70D, and 5D Mark II/III cameras UPC: 711202832985

Output Voltage

12 VDC 7.2 VDC 5 VDC (USB Type-A) 14.8 VDC (D-Tap)

Camera Power Method	Battery Plate Mount Type
Dummy Battery	Canon LP Series
Battery Plate Type	V-Mount
Accessory Mounting	1/4"-20 Female, M3 Female
Material of Construction	ABS Plastic, Aluminum

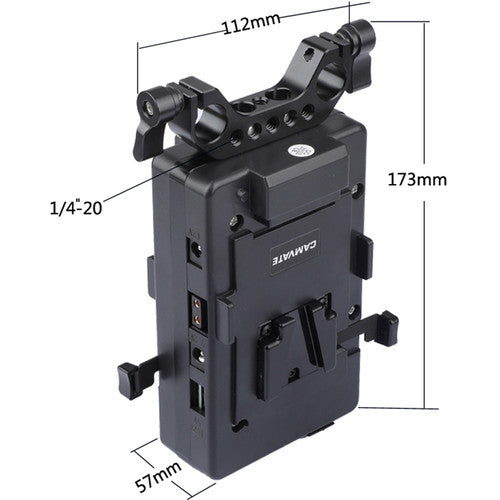

Dimensions	6.81 x 4.41 x 2.24" / 173 x 112 x 57 mm
Weight	16.93 oz / 480 g

Package Weight	1.765 lb
Box Dimensions (LxWxH)	8.2 x 4.5 x 3.4"
