CAMVATE C2381 Overview

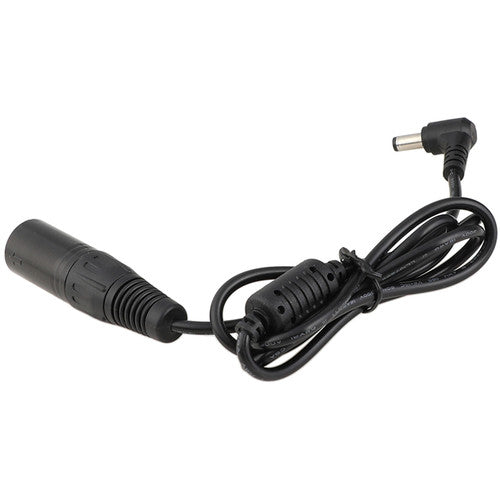

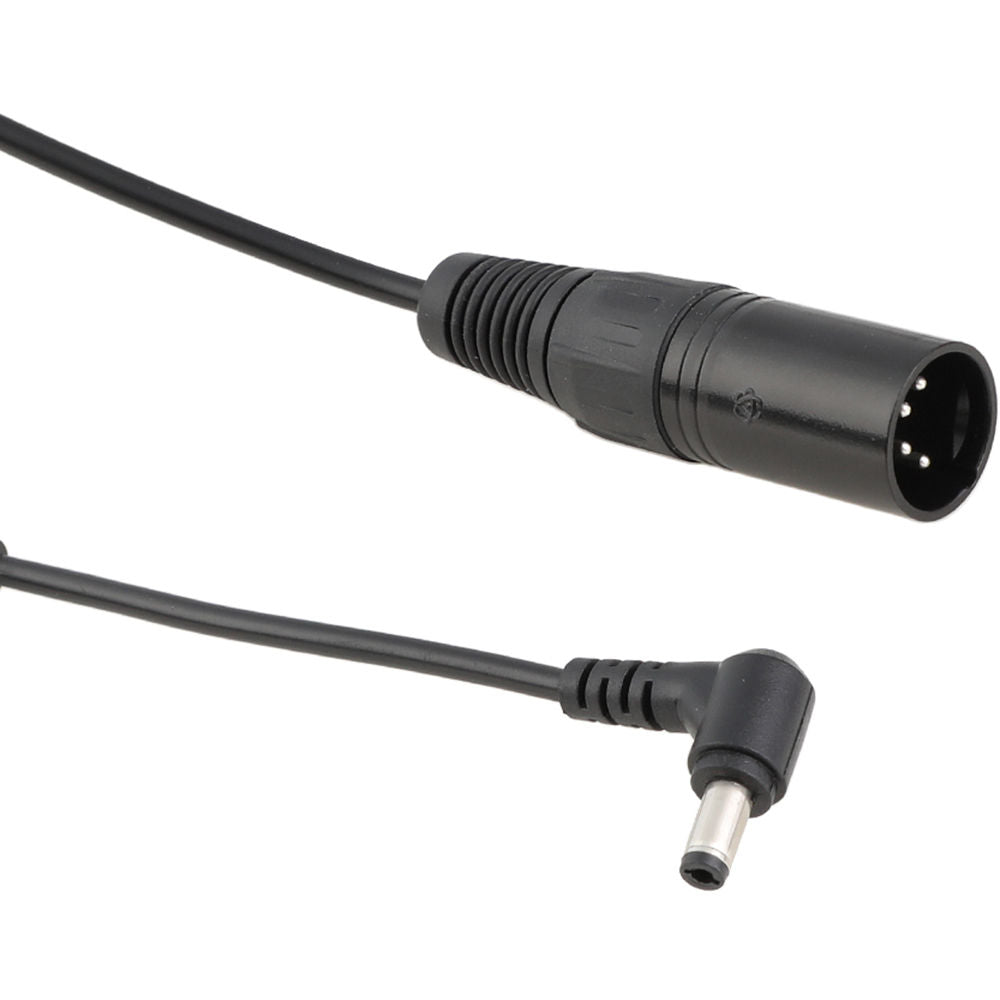

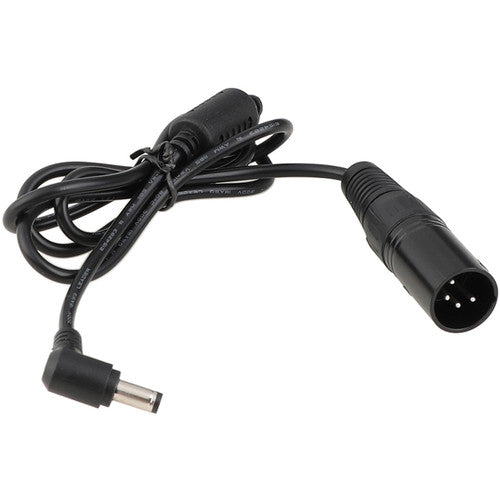

Power your Blackmagic Design cameras or cine accessories requiring a 12 VDC input and having a 2.5mm power port, from a 4-pin XLR power source with this CAMVATE 4-Pin XLR Male to 2.5mm DC Plug Power Cable. Simply plug the male connector at one of this 39.4" long cable into a 12 VDC 4-pin XLR female power port, and the cable delivers 12 VDC power from the 2.5mm coaxial connector at the other end.
Note:
Please note, this cable is neither regulated nor polarity protected.
This 24" long cable features a 2.5mm coaxial power connector on one end of the cable and a 4-pin female XLR on the other. This allows you to power a device that uses a 4-pin XLR connector while using one of the optional IndiPro Tools POWER POD Dual and Quad (7.2 and 14.4V) battery mounting plates.
The cable has been polarity tested with the optional IndiPro Tools POWER POD Dual and Quad LP-E6.
Please note that this cable is not power regulated and will pass whatever voltage through it you connect the cable to.
The cable is rated to handle 19V at 5A.
UPC: 756790475077
In the Box
- CAMVATE 4-Pin XLR Male to 2.5mm DC Plug Power Cable (39.4")
- Limited 1-Year Warranty
CAMVATE C2381 Specs
Connector 1 |
1 x DC Barrel (Right-Angle) |
Connector 2 |
1 x 4-Pin XLR Male |
Barrel Size |
2.5 mm |
Voltage Control |
Unregulated |
LED Indicators |
No |
Cable Length |
39.4" / 1 m |
Weight |
2.7 oz / 75.5 g |
Packaging Info
Package Weight |
0.185 lb |
Box Dimensions (LxWxH) |
7.15 x 4.75 x 1" |
