Camplex CMX-TS04ST-0025 Overview
High quality and cost-effective Camplex CMX-TS series tactical fiber cables are designed for broadcast and pro-AV deployment applications and meet all tactical needs for applications requiring an outdoor rated crush and impact resistant design. The tough thermoplastic polyurethane core-locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field.
Camplex CMX-TS ruggedized multi-channel fiber optic cables are designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. All products are 100% tested and a complete set of test documentation of your cable is available upon request.
- Indoor/Outdoor rated jacket.
- Wide temperature range (typically -55°C to 85°C)
- 500um primary acrylate buffer with 900um secondary hard buffer
- Excellent crush and impact resistance due to their polyurethane core-locked outer jacket
- Designed to withstand crush and impact after deployment
- Strong, lightweight and extremely durable cable
In the Box

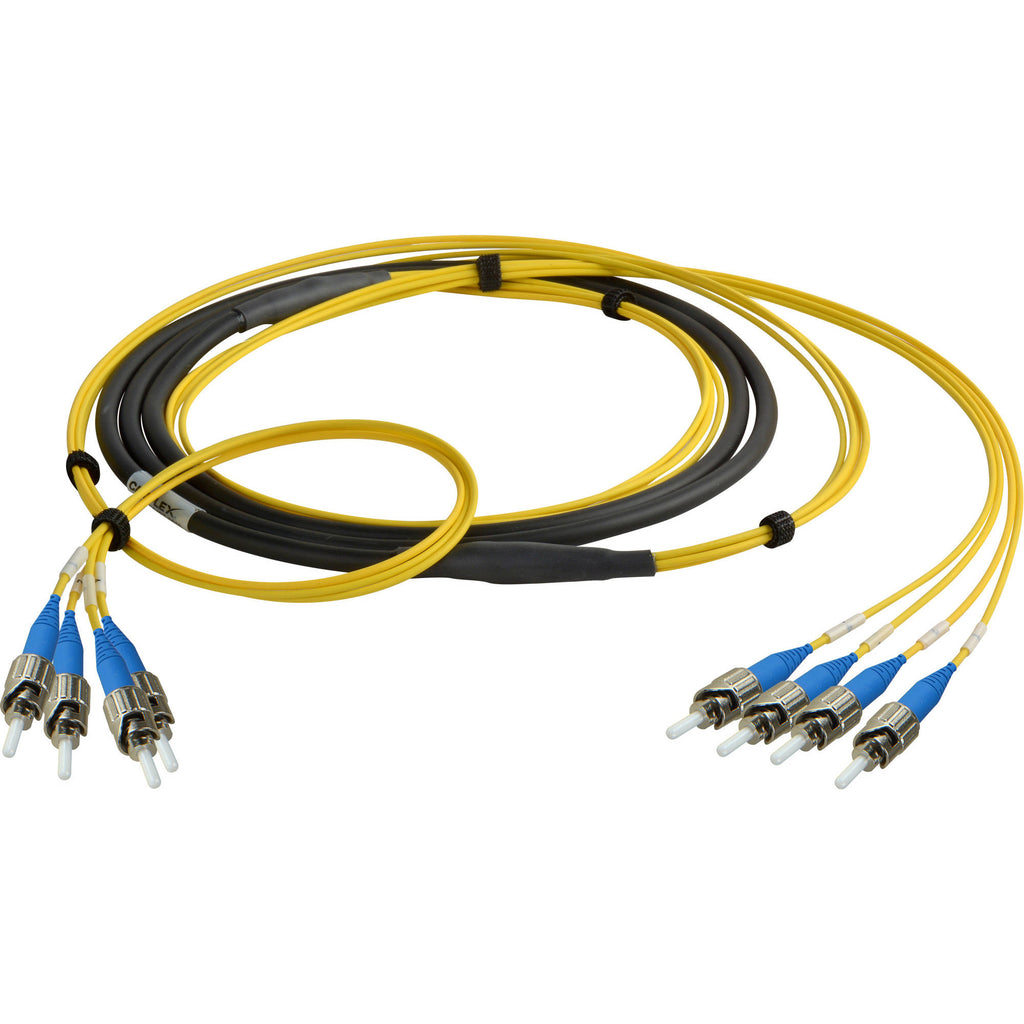

- Camplex Four-Channel ST Single-Mode Fiber Optic Tactical Snake (25')
Camplex CMX-TS04ST-0025 Specs
General
| Network Cable Type |
Network cable |
| Type of Fiber Optics |
Singlemode |
| Jacket Material |
Thermoplastic polyurethane |
| Fiber Qty |
4 |
| Core / Cladding Diameter |
9 / 125 micron |
| Features |
Indoor, outdoor, tight buffered, crush-resistant, impact-resistant |
| Length |
25 ft |
Connectivity
| CONNECTOR |
4 x ST single-mode - male |
| Connector (Second End) |
4 x ST single-mode - male |
Environmental Parameters
| Min Operating Temperature |
-67 °F |
| Max Operating Temperature |
185 °F |
