Description
Camplex CMX-FMCH002 Overview
Extend full 18Gb uncompressed HDMI signals over long distances via LC fiber optic cables with the Camplex FMCH002 4K/2K HDMI 2.0 Over Fiber Extender Set with 10G Ethernet and RS-232. This unit fully supports HDR 18Gbps 4:4:4 for resolutions up to 4096 x 2160 @60Hz while also offering RS232 machine control. The feature set of the Camplex FMCH002 also includes the ability to utilize a transmitter and receiver set as a point-to-point HDMI fiber extender or use it in conjunction with a 10G ethernet switch in a point to multipoint matrix.

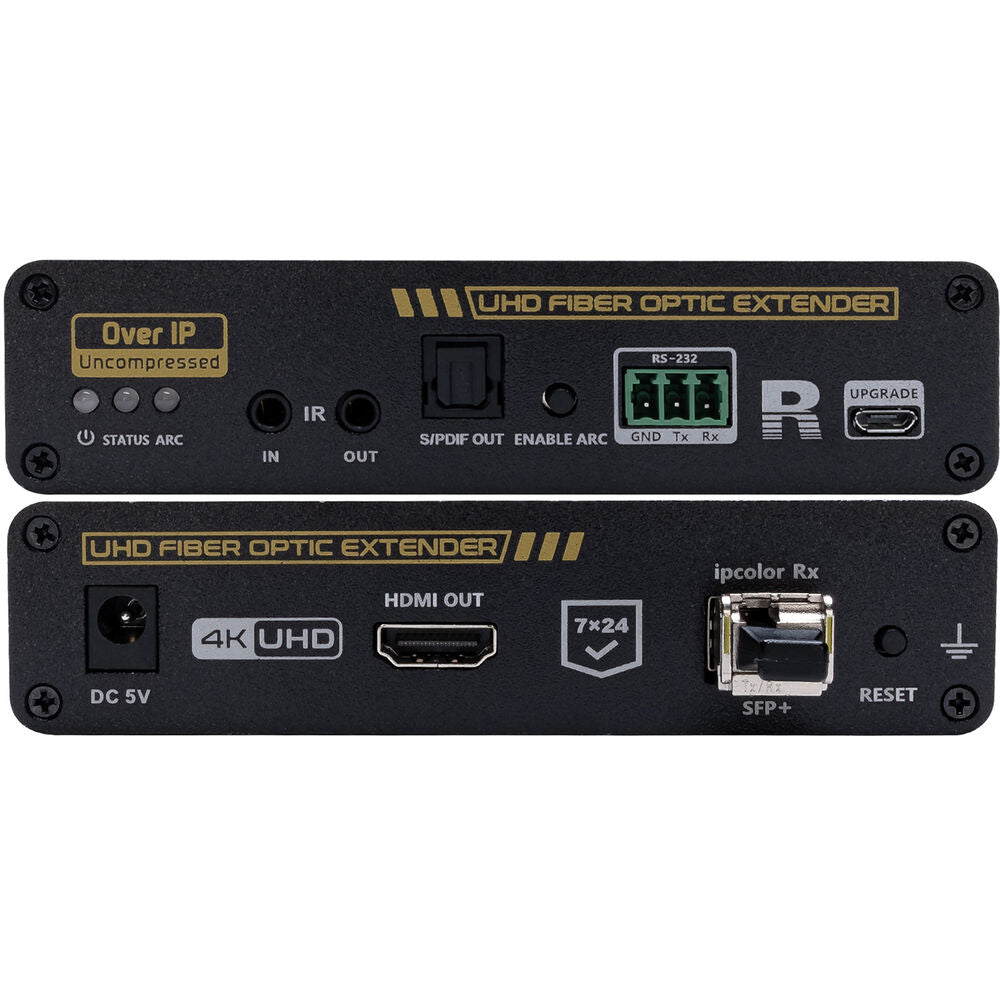

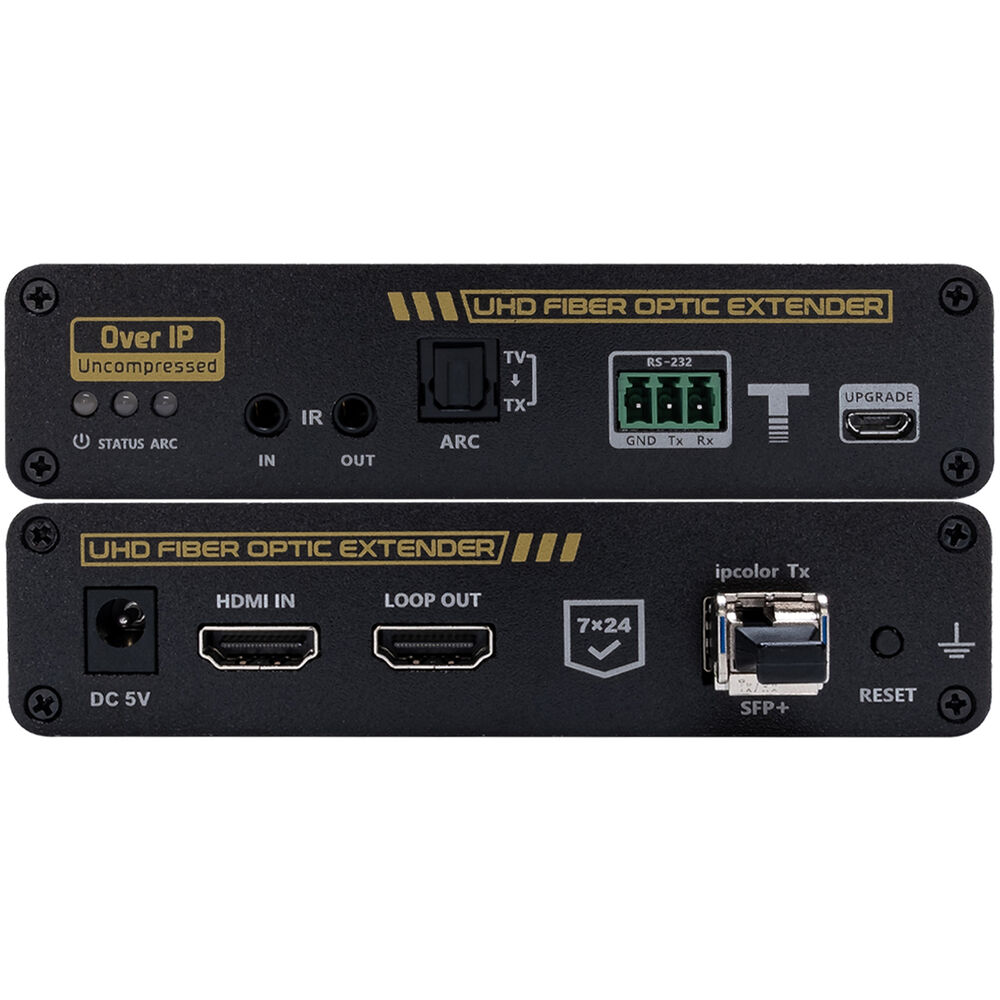

Transmitters feature a looping HDMI output for monitoring purposes and Receivers have Toslink audio outputs. Each kit includes LC Fiber SFP modules and power supplies. The entire system supports EDID pass-through as well as HDCP 2.2 to ensure display and projection compatibility. The Camplex FMCH002 is the right solution for multi-camera productions at outside venues, theater, and live event projection systems and more.
- Supports HDR 18gbps 4:4:4
- Up To 24.8 miles Over Single Mode Single Optic Fiber Cable
- HDMI Loop-Out & Audio Separation
- Zero Latency & Compression
- Arc/EARCBi-Directional IR
In the Box

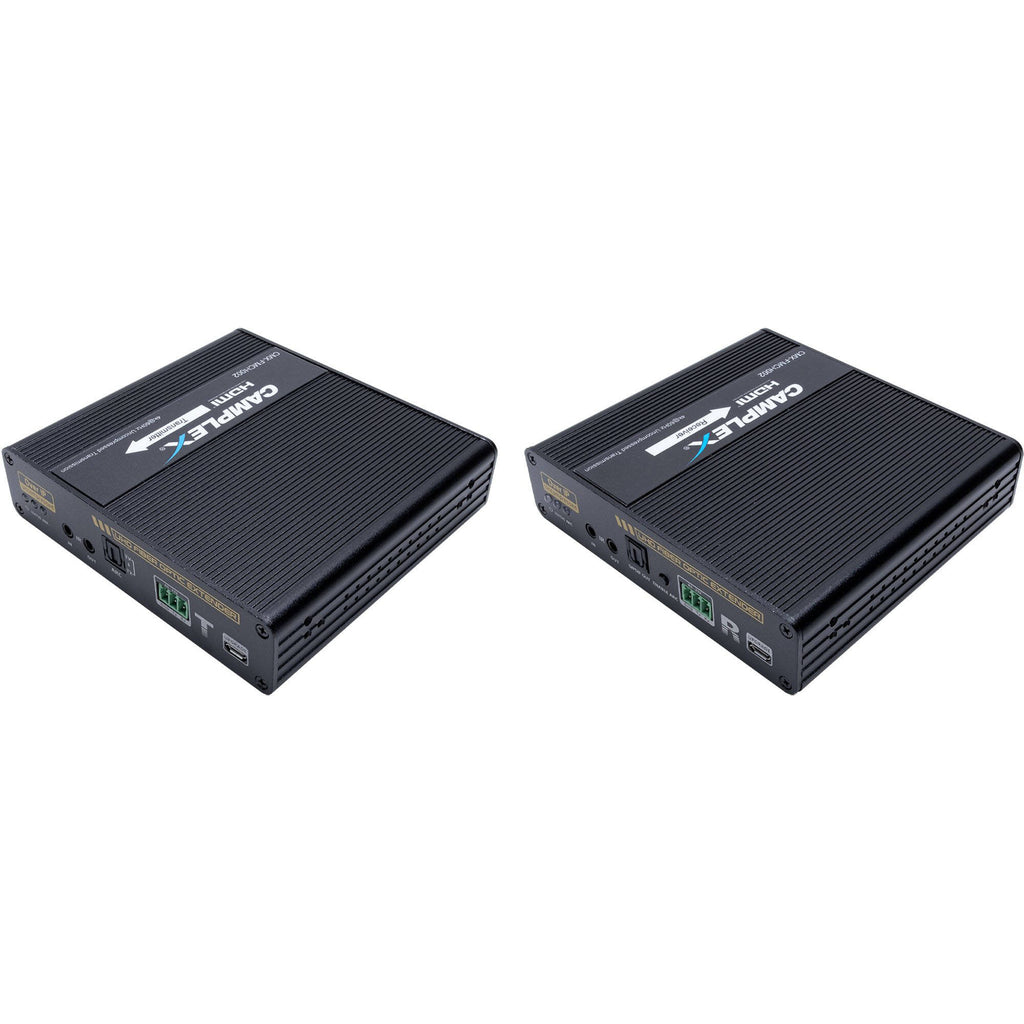

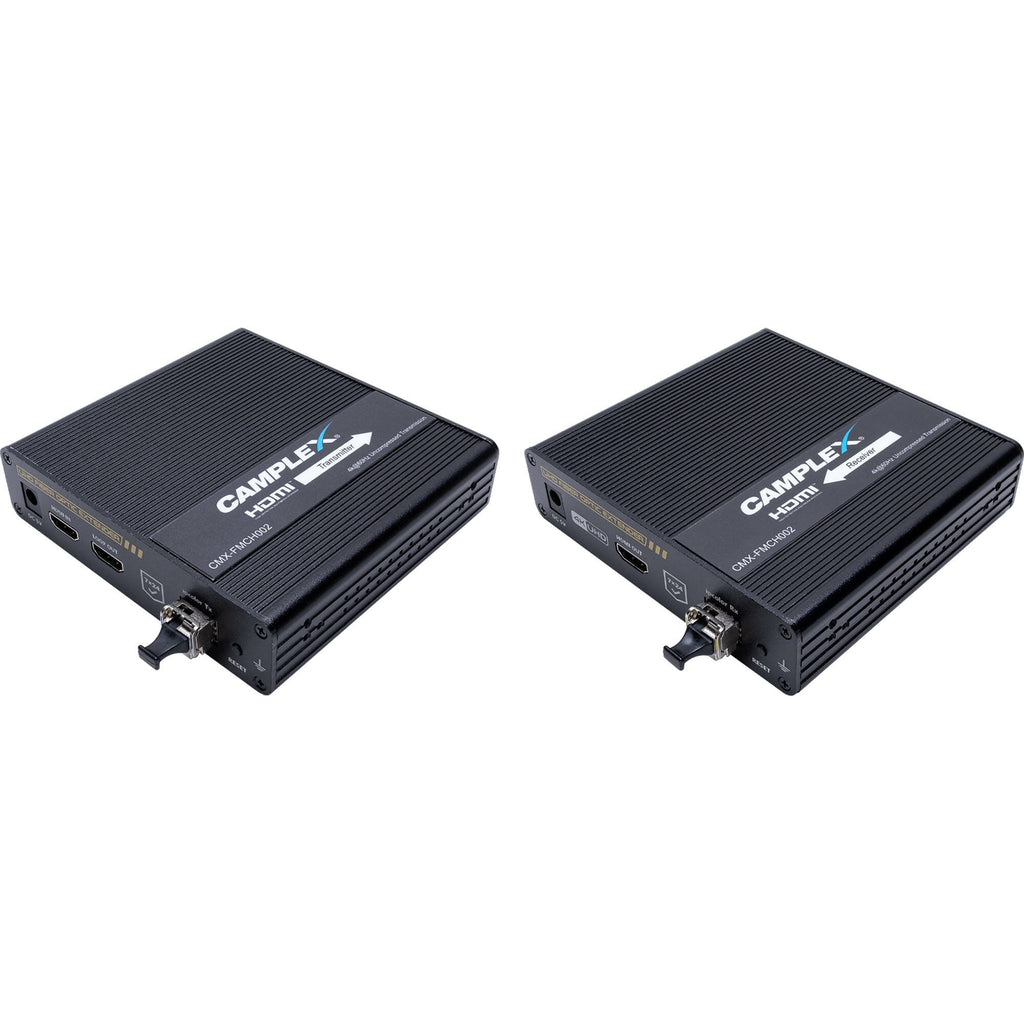

- Camplex 4K/2K HDMI 2.0 Over Fiber Extender Set with 10G Ethernet and RS-232 (24.8 Miles)

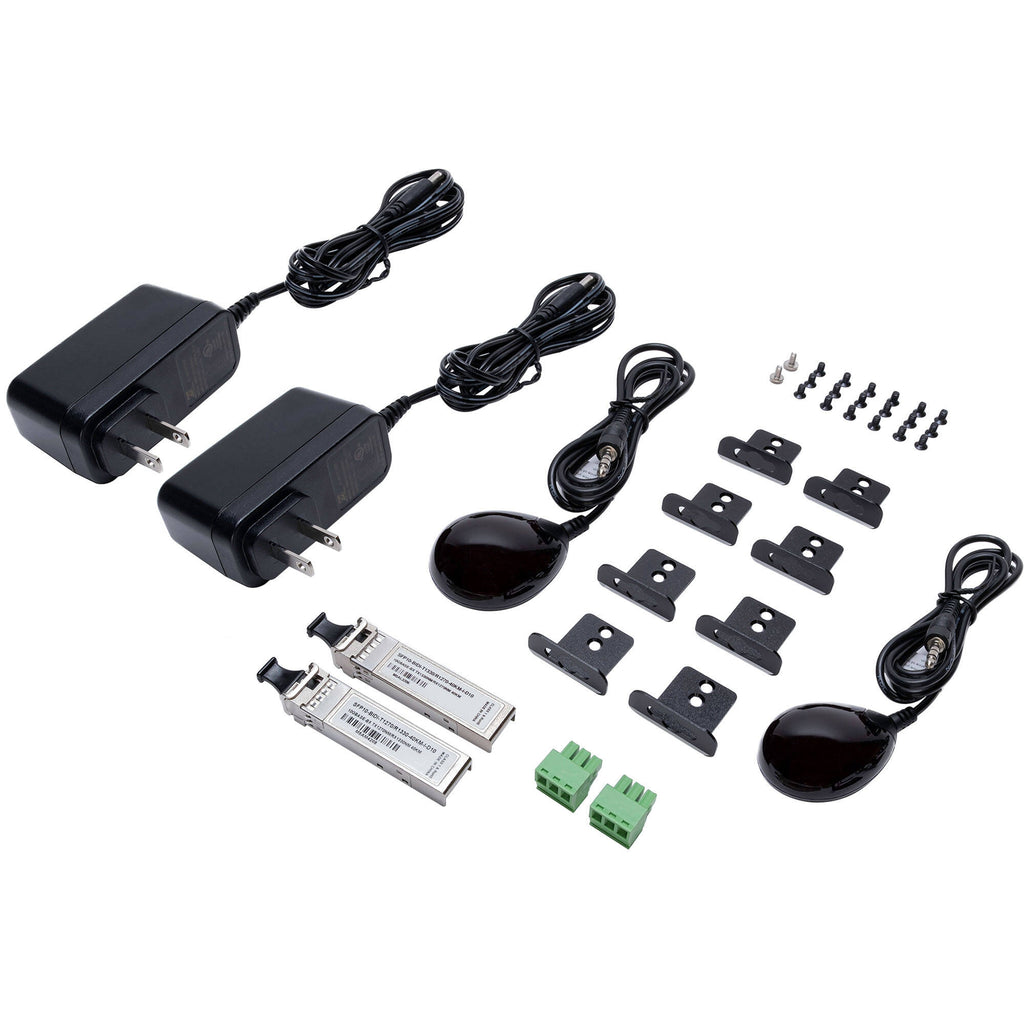

- 2 x 5 VDC Power Supply
- SFP+ Optical Module (T1270NM/R1330NM)
- SFP+ Optical Module (T1330NM/R1270NM)
- IR Blaster Extension Cable
- IR Blaster Receiver Cable
- 8 x Mounting Bracket
- 16 x Black counter Sunk Screw
- 2 x Silver Screw
- 2 x Phoenix Plug
Camplex CMX-FMCH002 Specs
| Inputs | 1 x HDMI (HDMI 2.0) |
| Outputs | 1 x HDMI (HDMI 2.0) 1 x SFP+ |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 |
| Inputs | 1 x SFP+ |
| Outputs | 1 x HDMI (HDMI 2.0) |
| Receiver Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-422 |
| HDCP Support | Version 2.2 |
| EDID Support | Yes |
| Max Transmission Distance | 24.9 Miles / 40 km |
| Supported Cable Types | Single-Mode Fiber |
| Transmitter Power Connector | 1 x Barrel Input |
| Receiver Power Connector | 1 x Barrel Input |
