Description
- 24" IPS Backlit LCD Panel
- UHD 3840 x 2160 Native Resolution
- 1000:1 Contrast Ratio
- 178° Viewing Angle
- 400 cd/m ² Brightness
- 2 x HDMI 2.0 Inputs
- 4 x 3G-SDI Inputs
- 4 x 3G-SDI Outputs

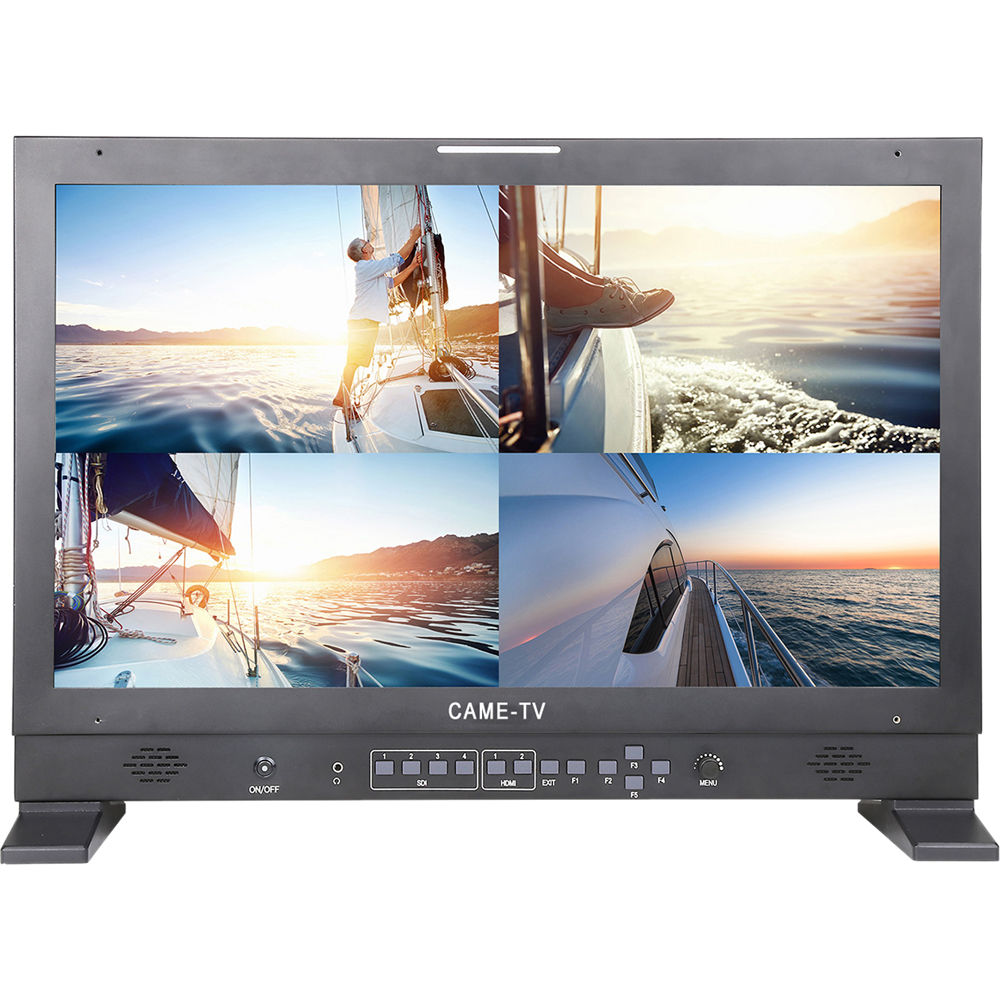

- PIP & PBP Capable
- V-Mount/Gold Mount System

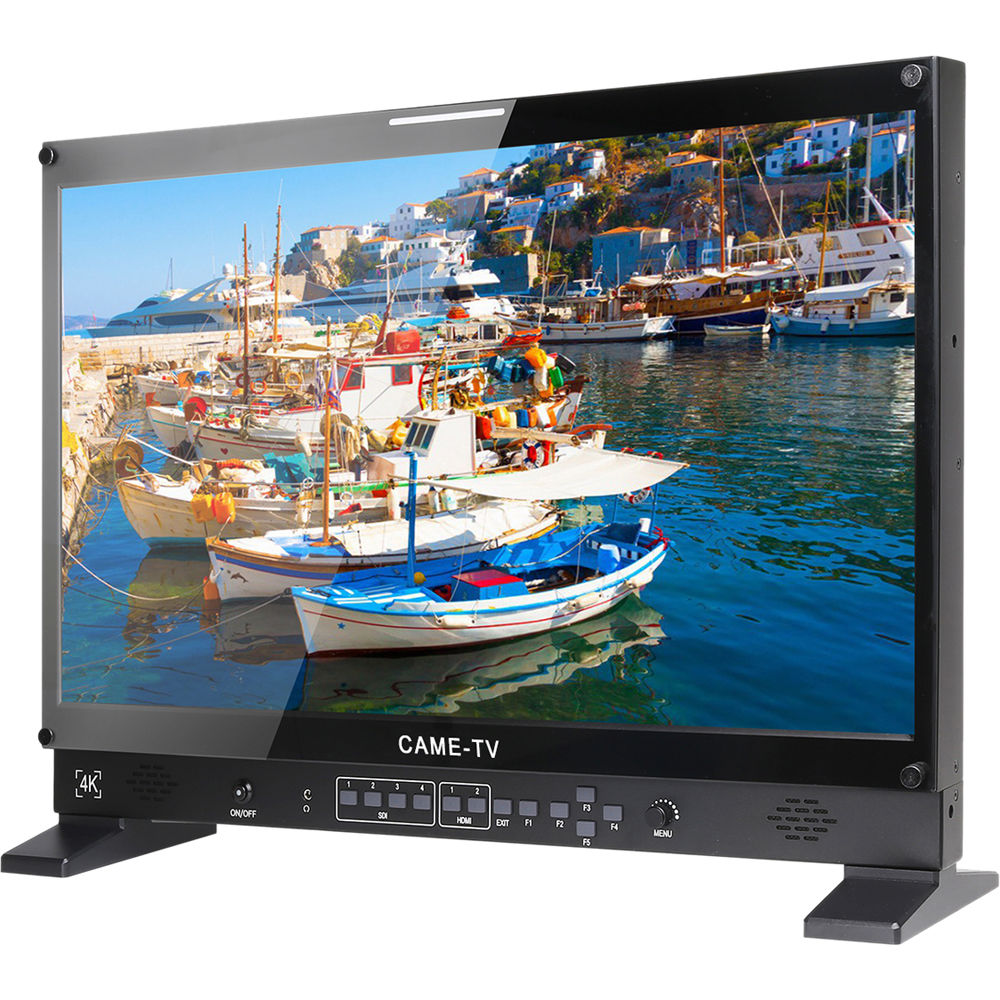

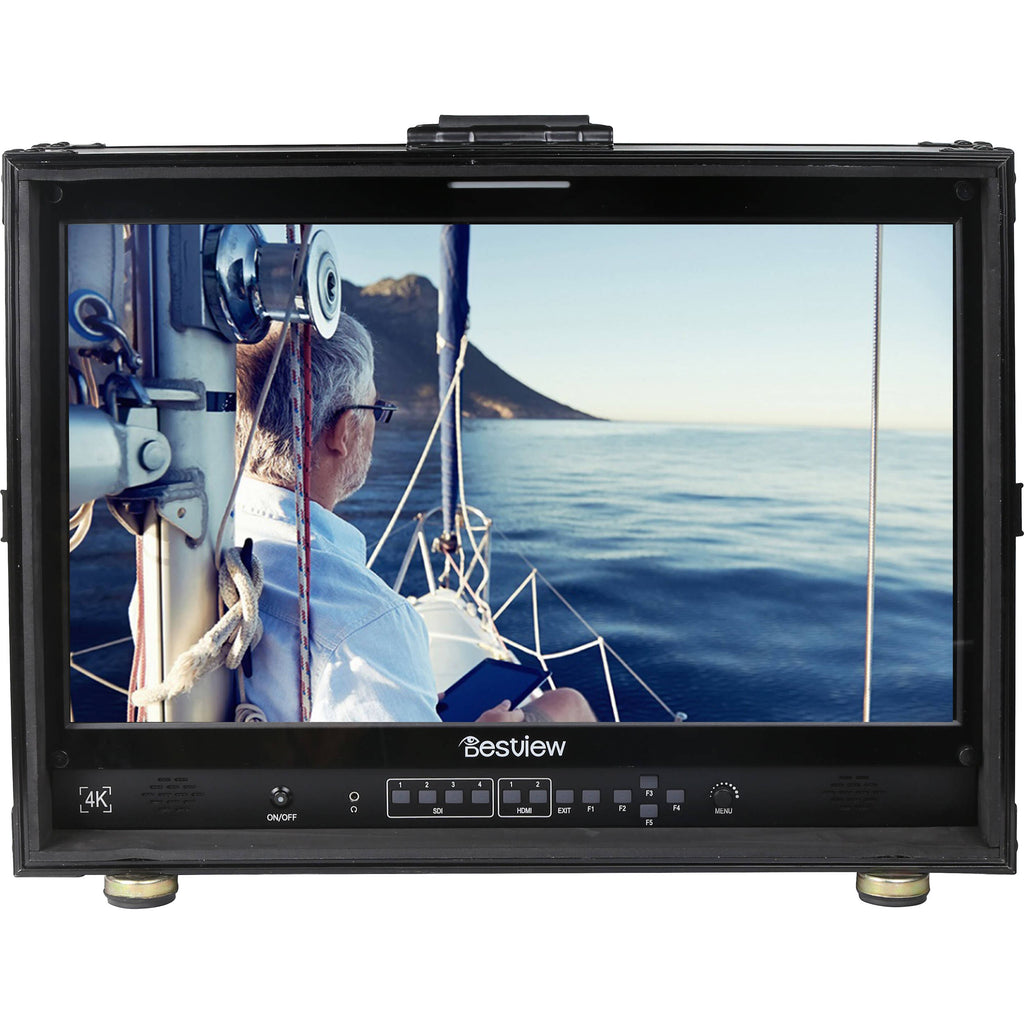

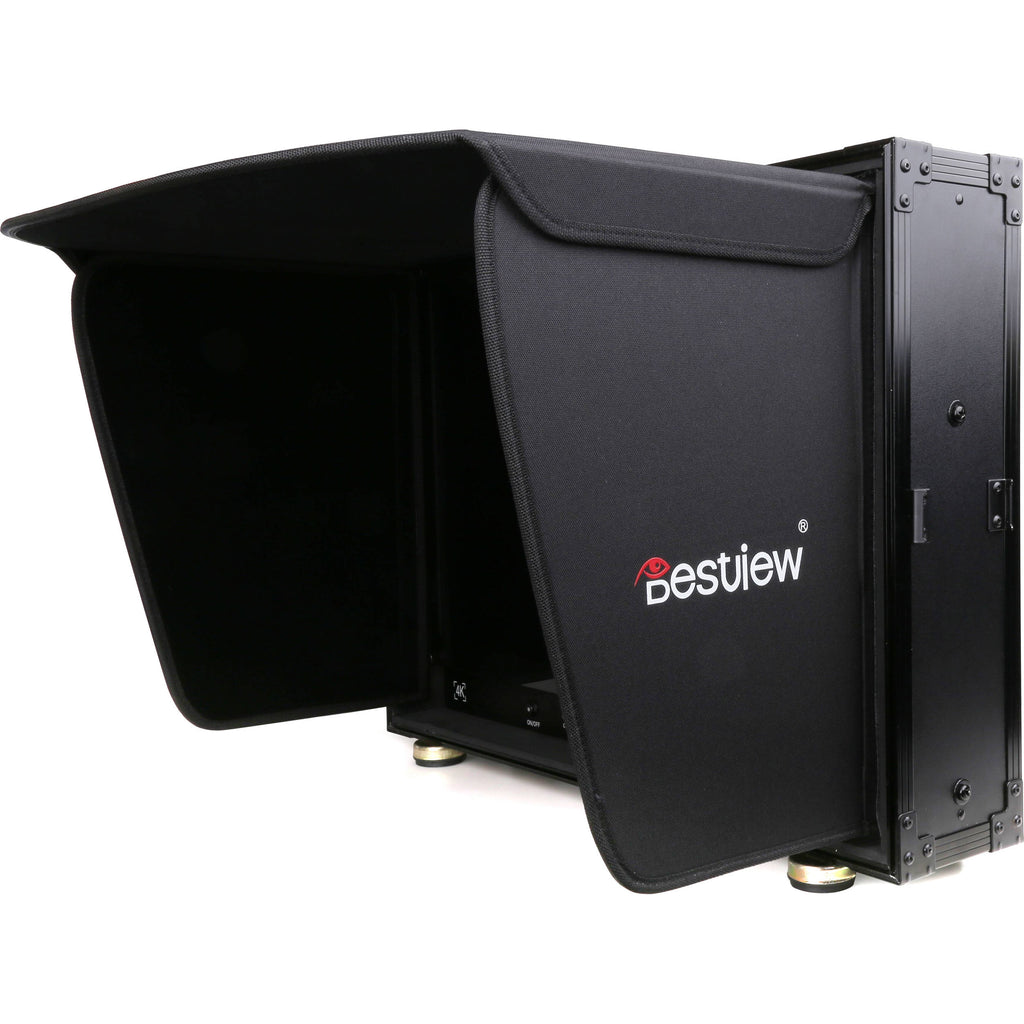

The 24" Portable Case 4K HDMI/3G-SDI Monitor from CAME-TV offers a UHD 3840 x 2160 native resolution in an IPS backlit LCD panel featuring a 178° viewing angle, 400 cd/m² brightness, and 1000:1 contrast ratio. The monitor's connectivity interface includes two HDMI 2.0 inputs, as well as four 3G-SDI inputs and four 3G-SDI outputs. An integrated sun hood blocks out stray reflections to reduce glare when viewing footage in the field.
- Monitor controls integrated to the inside of case
- PiP and PbP capable
- Battery information display
- Gamma selection (1.8/2.0/2.2/2.4)
- V-mount and Gold mount dual power supply system
- Six-channel switchable source signal
- Professional color calibration; supports Rec. 709
- Acrylic panel protection
- Software functions include peaking filter, check field, center mark (five colors), safe area, underscan, ratio, check field (B/W/R/G/B), image flip (U/D and R/L), and noise reduction
UPC: 614993189408
In the Box
CAME-TV Portable Case 4K HDMI/3G-SDI Monitor (24")
CAME-TV 4K-C24F specs
| Diagonal Size | 24" / 60.96 cm |
| Display Area | 15.04 x 8.42" / 38.2 x 21.4 cm |
| Display Ratio | 16:9 |
| Resolution | 3840 x 2160 |
| Response Time | TR/TD: 10/15 typical |
| OSD | Push-button control |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 |
| View Angle | L/R: 178° (89/89°) U/D: 178° (89/89°) |
| Backlight Life | 50,000 hours approx. |
| Input Signal | 2 x HDMI 4 x 3G-SDI |
| Output Signal | 4 x 3G-SDI |
| Supported Resolutions | HDMI: 720 x 480i/p: 59.94, 60 720 x 576i/p: 50 1280 x 720p: 50, 59.94, 60 1920 x 1080i: 50, 59.94, 60 1920 x 1080p: 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 3840 x 2160p: 24, 25, 30, 60 4096 x 2160p: 24 3G-SDI: 720 x 480i: 59.94, 60 720 x 576i/p: 50 1280 x 720p: 50, 59.94, 60 1920 x 1080i: 50, 59.94, 60 1920 x 1080p: 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 |
| Audio | 2-channel output |
| Power | 110-265 VAC, 50-60 Hz 12 VDC, 2 A |
| Max Power Consumption | 26 W, typical |
| Operating Temperature | 14 to 140°F / -10 to 60°C |
| Storage Temperature | -4 to 176°F / -20 to 80°C |
| Operating Humidity | 10-90% non-condensing |
| Storage Humidity | 5-90% non-condensing |
| Certifications | FCC, CE, RoHS, and KCC |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 39.1 lb |
| Box Dimensions (LxWxH) | 26.0 x 20.0 x 13.0" |
