Description
CAME-TV L2-PLUS Overview

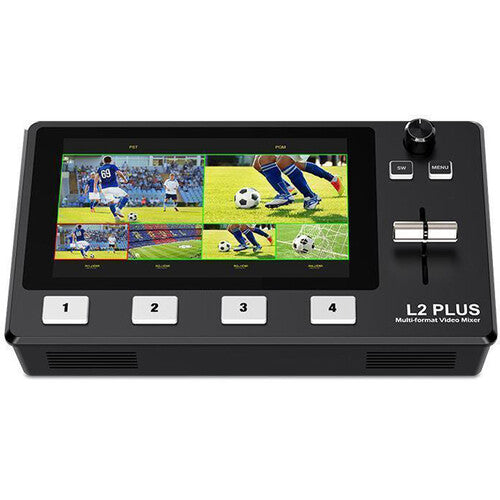

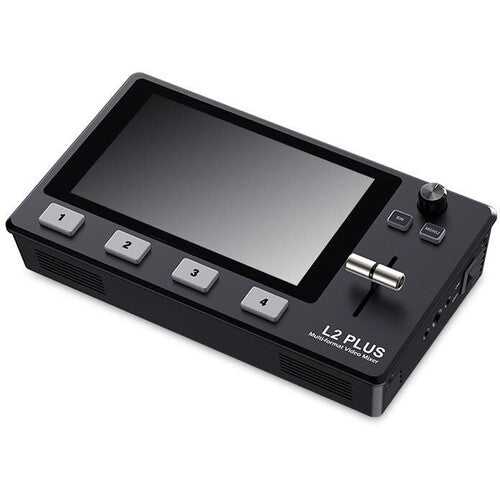

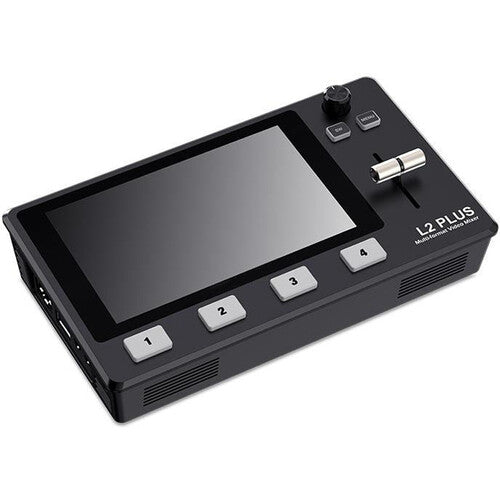

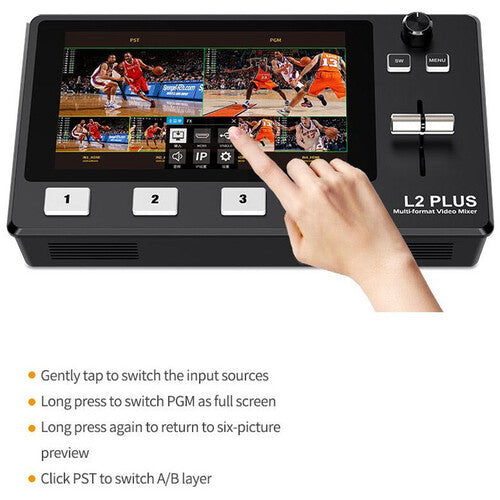

Designed for multicamera livestreaming to the internet for broadcast, education, or business applications, the compact Multicamera HDMI/USB Video Mixer Switcher with 5.5" Touchscreen LCD from CAME-TV is a four-input live production switcher with an integrated LCD monitor and control panel. Switch between the four HDMI type A inputs to live-switch up to 1080p60 resolution for a video presentation, interview, or gaming feed. The T-bar supports 15 transitions, and the 5.5" touchscreen display can be configured to view and output nine PiP (Picture-in-Picture) modes.

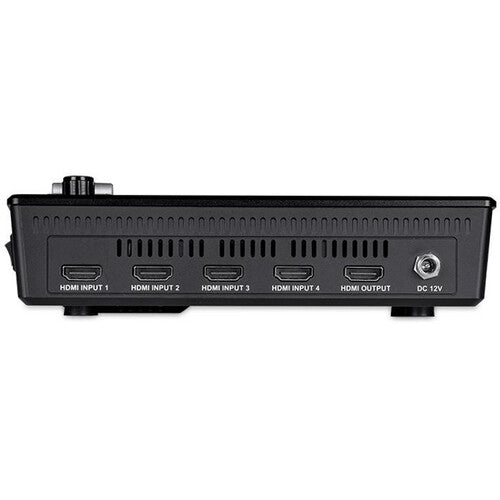

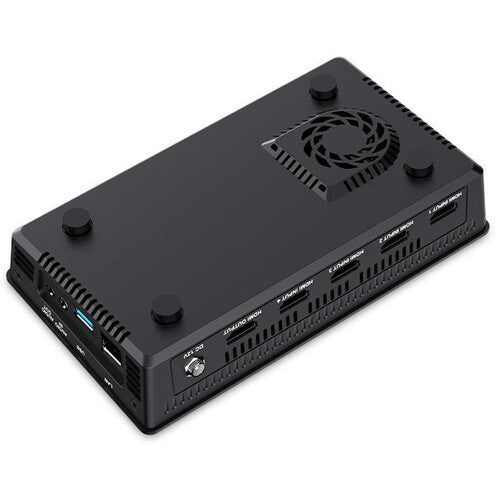

The HDMI type A output is for an external monitor for program and preview output. A USB 3.0 Type-A output allows you to plug into a computer and stream up to 1080p60 video using third-party software. An RJ45 Ethernet port is used for system management and remote control of up to eight IP PTZ cameras. The control surface features a headphone jack, and an analog audio input allows you to embed your own audio via a mic or other audio sources.
In the Box
- CAME-TV Multicamera HDMI/USB Video Mixer Switcher with 5.5" Touchscreen LCD
- Limited 1-Year Manufacturer Warranty
CAME-TV L2-PLUS Specs
| Switching Type |
Pushbutton
|
| Number of Video Input Sources |
4
|
| Video Inputs |
4 x HDMI Female
|
| Input Video Format |
HDMI
1080p at 24/25/30/50/60 fps 1080i 50/60 fps 720p 50/60 fps |
| Audio Inputs |
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
|
| Input Audio Format |
Analog
|
| Embedded Audio Input |
HDMI
|
| Video Output Channels |
2
|
| Video Outputs |
1 x HDMI Female (Program)
1 x USB-A (USB Video) Female (Program) |
| Output Video Format |
HDMI
1080p at 24/30/50/60 fps 720p 50/60 fps XGA (1024 x 768) 60 fps 1280 x 768 SXGA (1280 x 1024) 1360 x 768 USB-A 1080p at 24/25/30/50/60 fps 720p 50/60 fps SXGA (1280 x 1024) 60 fps 1360 x 768 60 fps |
| Audio Outputs |
1 x 1/8" / 3.5 mm TRS Analog Female (Loop Output)
|
| Output Audio Format |
Analog
|
| Embedded Audio Output |
HDMI
USB-A |
| Other I/O |
1 x RJ45 Control, LAN, PTZ Input/Output
|
| HDCP Support |
No
|
| Display Size |
5.5"
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1 x Barrel (12 VDC at 2 A) Input
|
| Power Consumption |
Device: 21 W
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
5 to 85%
|
| Dimensions |
7.5 x 4.3 x 1.7" / 191 x 110 x 43 mm
|
| Weight |
1.3 lb / 610 g
|
| Package Weight |
2.31 lb
|
| Box Dimensions (LxWxH) |
9.5 x 7.1 x 3.25"
|
