Description
CAME-TV CRYSTAL-V Overview

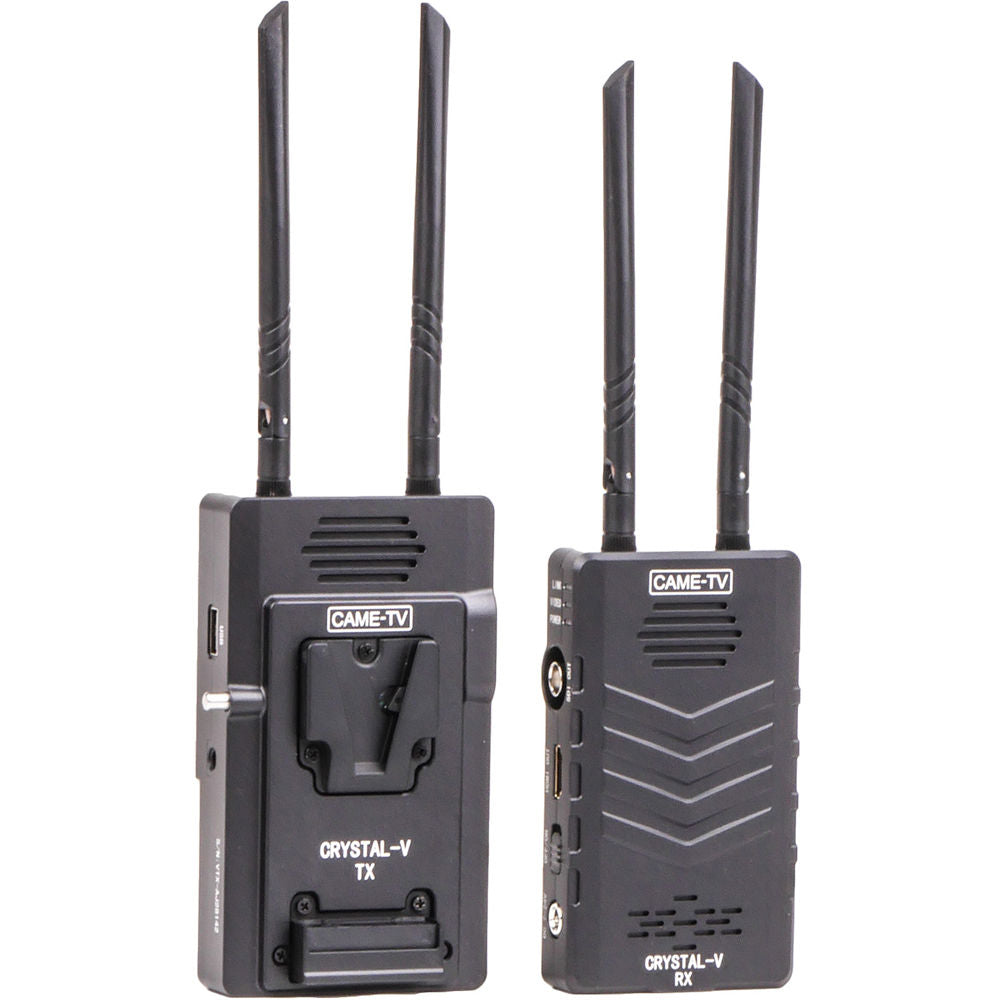

The Crystal V Wireless Full HD Video Transmission System from CAME-TV allows you to wirelessly connect your camera to a monitoring device with a 5 GHz signal. The system supports video input via HDMI up to UHD 4K, input via SDI up to 1080p60, and offers an effective line-of-sight transmission of up to 1080p60 video at up to 1640'.

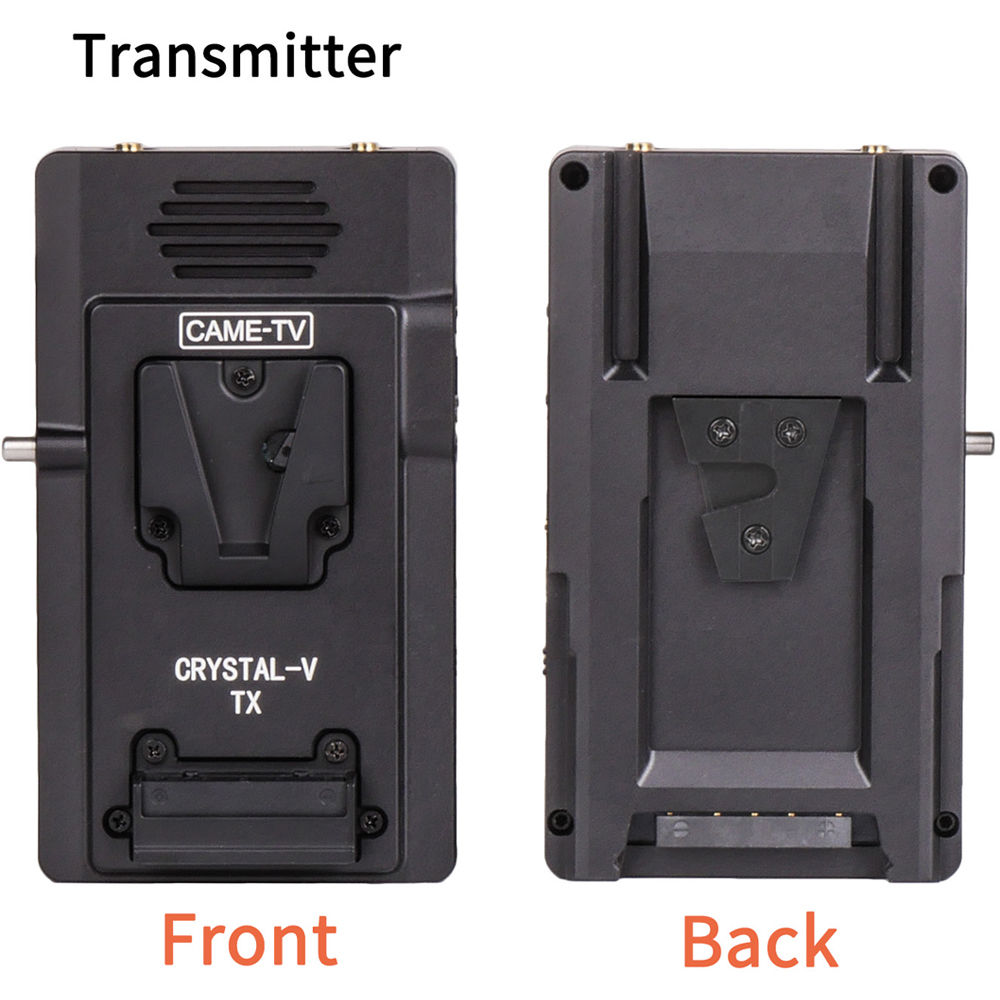

The transmitter is powered via its V-mount battery plate, and an L-series battery plate is included if you'd prefer to swap out the V-mount plate. The transmitter also has a V-mount plate on the other side that can be used to mount it onto a V-mount camera so a V-mount battery can power both the camera and the transmitter.

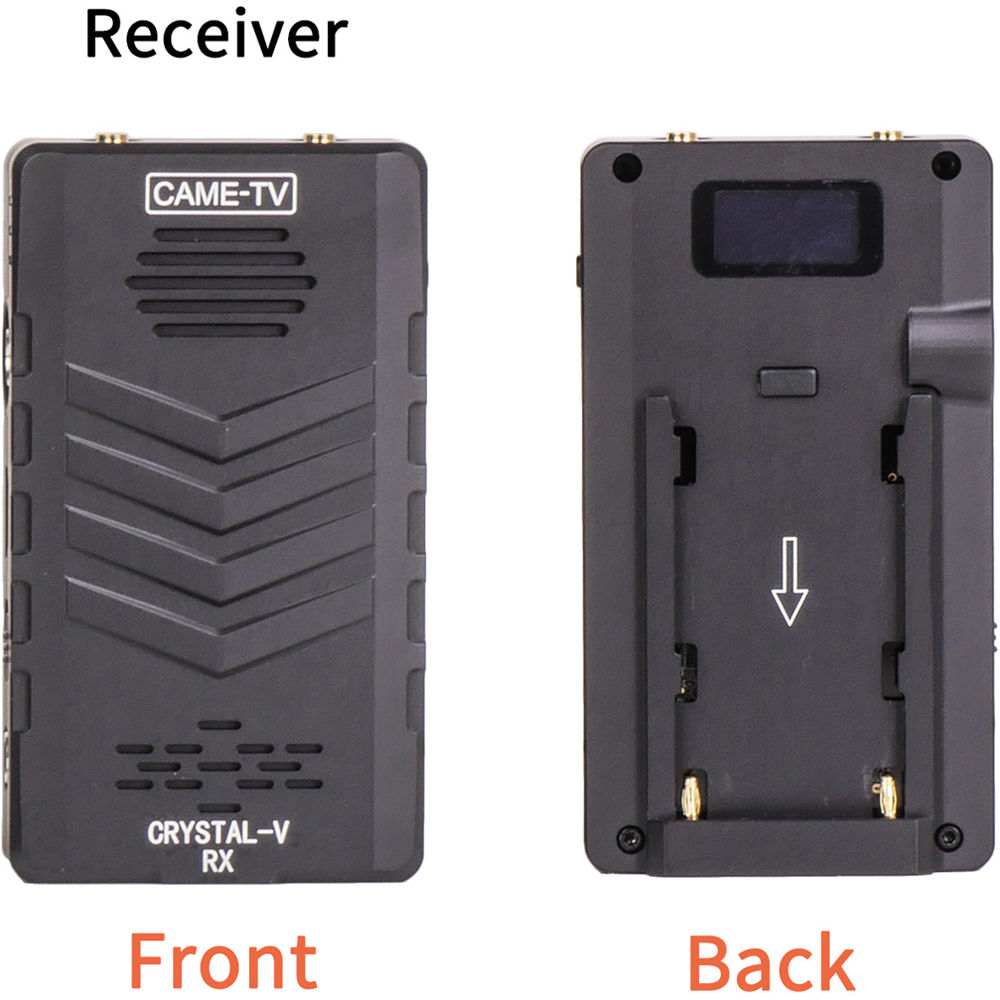

The receiver is powered via an L-series battery plate, and both can alternately be powered with a separately available 2.1mm DC barrel power source. Each unit comes with two removable antennas to extend their transmission range, a shoe mount, and a 1/4"-20 double-threaded screw adapter.

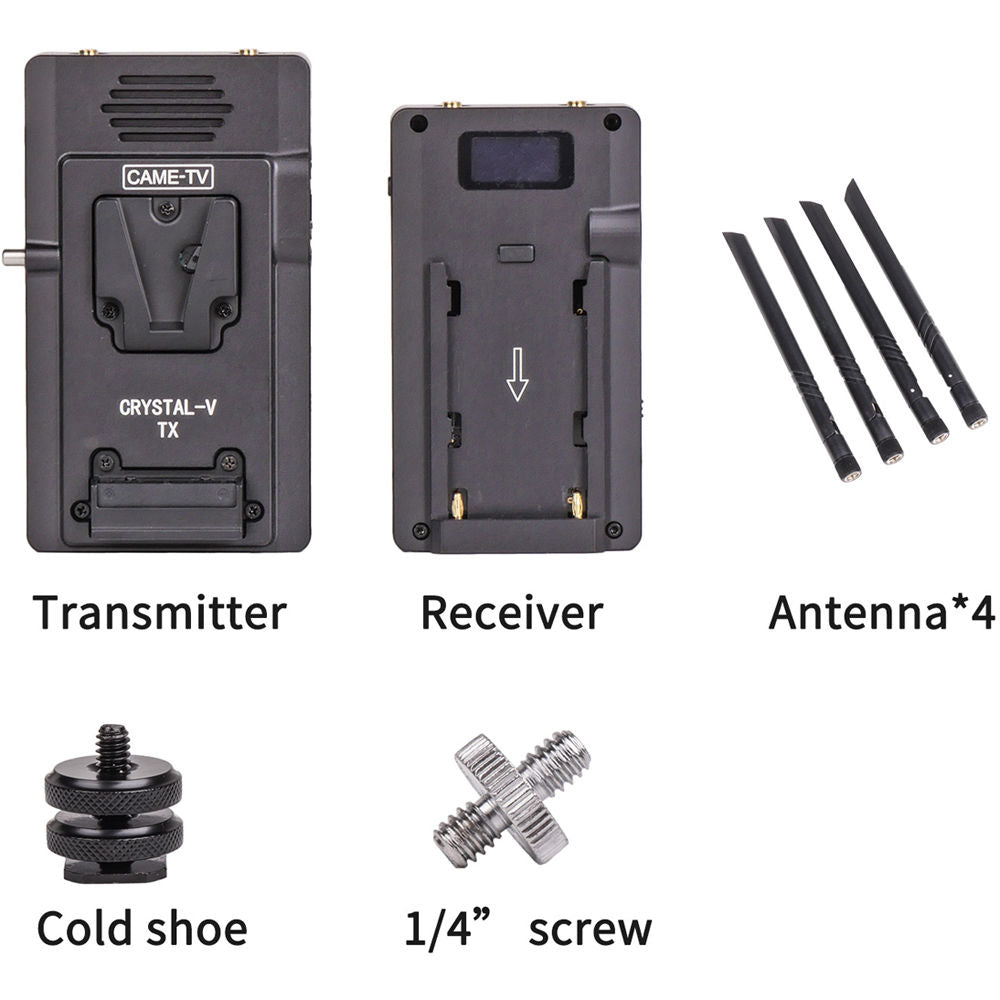

In the Box
- CAME-TV Crystal V Wireless Full HD Video Transmission System
- 4 x Antenna
- Transmitter L-Series Battery Plate
- Shoe Mount
- 1/4"-20 Double Screw Adapter
- Limited 1-Year Warranty
CAME-TV CRYSTAL-V Specs
| Wireless Range | 1640.42' / 500 m |
| Frequency Range | US: 5.18 to 5.8 GHz |
| RF Power | 4 dBm |
| Wi-Fi | Yes |
| Transmitter Antenna Ports | 2 x RP-SMA |
| Receiver Antenna Ports | 2 x RP-SMA |

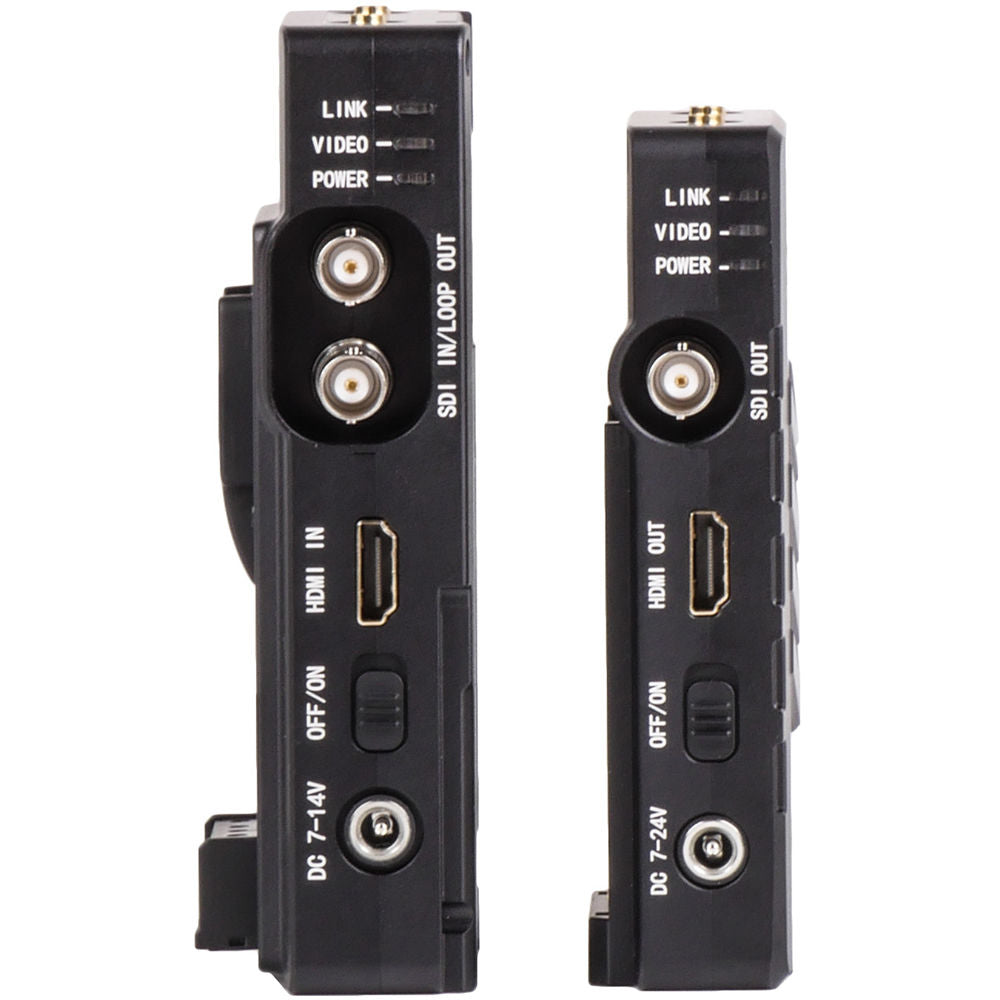

| Transmitter Video Connectors | 1 x BNC (3G-SDI) Input 1 x HDMI Input 1 x BNC Loop Output |
| Receiver Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Transmitter Other I/O | 1 x USB Type-A Output |
| HDCP Support | None |
| Video Format | SDI/BNC: 1080p at 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps 576p at 50 fps 480p at 60 fps HDMI: UHD 4K at 30 fps 1080p at 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps 576p at 50 fps 480p at 30 fps |
| LUT Support | None |
| Transmitter Built-In Battery | None |
| Receiver Built-In Battery | None |
| Transmitter Battery Support | 1 x V-Mount |
| Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
| Transmitter Power Connector | 1 x Barrel (7 to 24 VDC) Input |
| Receiver Power Connector | 1 x Barrel (7 to 24 VDC) Input |
| Transmitter Power Consumption | 12 VDC at 510 mA (6.12 W) |
| Receiver Power Consumption | 12 VDC at 550 mA (6.6 W) |
| Operating Temperature | 14 to 149°F / -10 to 65°C |
| Transmitter Mounting | 1 x 1/4"-20 Female |
| Receiver Mounting | 1 x 1/4"-20 Female |
| Transmitter Dimensions | 4.92 x 2.76 x 0.79" / 12.5 x 7 x 2 cm |
| Receiver Dimensions | 5.51 x 3.15 x 0.98" / 14 x 8 x 2.5 cm |
| Transmitter Weight | 8.8 oz / 250 g |
| Receiver Weight | 12.3 oz / 350 g |
| Package Weight | 2.165 lb |
| Box Dimensions (LxWxH) | 8.9 x 6.7 x 2.8" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
