Description

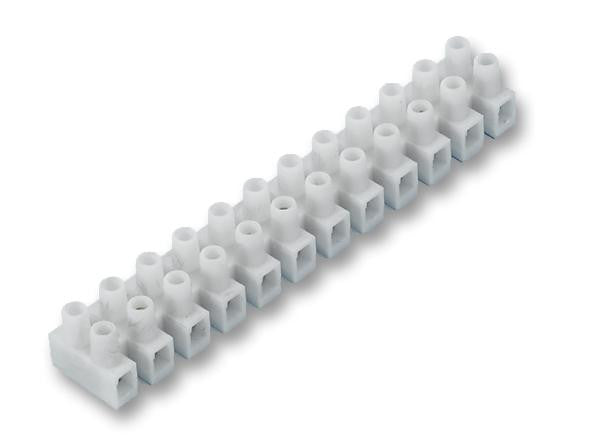

The CTSN434/12/F is a 12-pole 450V/57A pluggable Terminal Block with UL94-V2 self extinguishing PA6 or UL94-V0 self extinguishing PA6.6, nickel plated brass conducting bush, Zinc plated steel M3.5 terminal screws, 12.3mm pitch. Screws are 6µ Zinc, colour passivated and tropicalised, and only come along one side of the connector.
- 4.3mm Insert diameter
- 3.5mm Fixing hole diameter
Applications
Industrial
Product details
| No. of Rows | 1 Row |
| Wire Size AWG Max | 10AWG |
| Rated Current | 57A |
| No. of Positions | 12Ways |
| Product Range | CTSN434 Series |
| Pitch Spacing | 12mm |
| Wire Size AWG Min | - |
| Rated Voltage | 750V |
Other details
| Brand | CAMDENBOSS |
| Part Number | CTSN434/12/F |
| Quantity | Each |
| Technical Data Sheet EN |  |
