Description

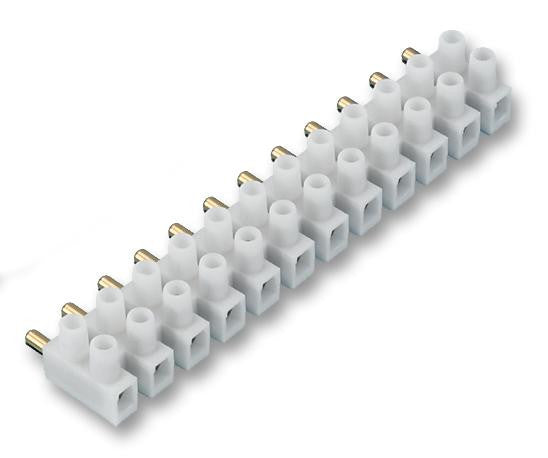

The CTSN433/12/M is a 12-pole 450V/24A pluggable Terminal Block with UL94-V2 self extinguishing PA6 or UL94-V0 self extinguishing PA6.6, nickel plated brass conducting bush, Zinc plated steel M3 terminal screws, 10.25mm pitch. Screws are 6� Zinc, colour passivated and tropicalised, and only come along one side of the connector.
- 3.4mm Insert diameter
- 3.2mm Fixing hole diameter
Applications
Industrial
Product details
| No. of Rows | 1 Row |
| Wire Size AWG Max | - |
| Rated Current | 10A |
| No. of Positions | 12Ways |
| Product Range | CTSN433 Series |
| Pitch Spacing | 9.95mm |
| Wire Size AWG Min | - |
| Rated Voltage | 450V |
Other details
| Brand | CAMDENBOSS |
| Part Number | CTSN433/12/M |
| Quantity | Each |
| Technical Data Sheet EN |  |
