Description

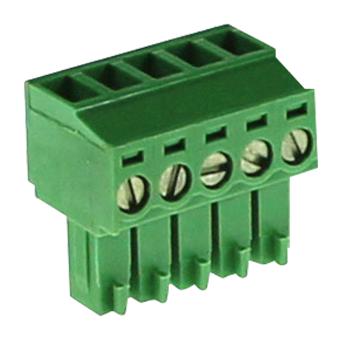

The CTB922HD/5 from Camdenboss is a 5 pole female pluggable rising clamp terminal block with 3.5mm pin spacing. This professional rising clamp terminal block is suitable for wire size ranging from 26AWG to 16AWG.
- Rated voltage of 200V and rated current of 10A
- Dimension is 17.5mm x 7mm x 9mm (L x W x H)
- Polyamide (PA66) moulded material in green colour housing
- Closed header, polarised moulding and guided pin alignment
- Tinned phosphor bronze terminal
- Nickel copper flash brass rising clamp
- Tin plated M2 steel captive screws with 0.3Nm torque
- Working temperature range from -33°C to +120°C
- Flammability rating meets UL94 V-0
- cULus approved
Industrial
Other details
| Brand | CAMDENBOSS |
| Part Number | CTB922HD/5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
