Description

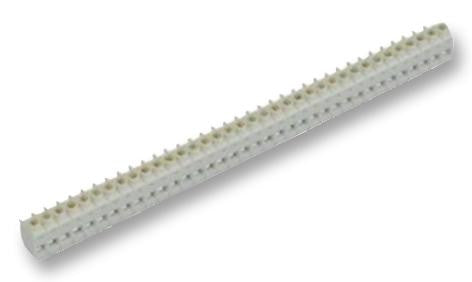

The CTB7300/36F is a 36-pole 250V/16A female header pluggable Terminal Block with UL94-V0 flame retardant PC grey moulding, tinned nickel plated brass pin/terminal, zinc plated steel rising clamp, M2.5 steel zinc plated captive screw, 5mm pitch, professional rising clamp terminal. It features anti solder wicking and guided pin alignment. It accepts 0.2 to 2.5mm� (24 to 12AWG) solid and stranded cable.
- For vertical or 90� mounting
- >=2.5kV Dielectric strength
- 4kV Impulse withstand voltage
- 0.4Nm Torque
Applications
Industrial
Product details
| Wire Size AWG Max | - |
| Wire Connection Method | Screw |
| Rated Current | 13.5A |
| No. of Positions | 36Ways |
| Conductor Area CSA | 4mm� |
| Product Range | CTB7300 Series |
| Pitch Spacing | 5mm |
| Wire Size AWG Min | - |
| Rated Voltage | 380V |
Other details
| Brand | CAMDENBOSS |
| Part Number | CTB7300/36F |
| Quantity | Each |
| Technical Data Sheet EN |  |
