Description

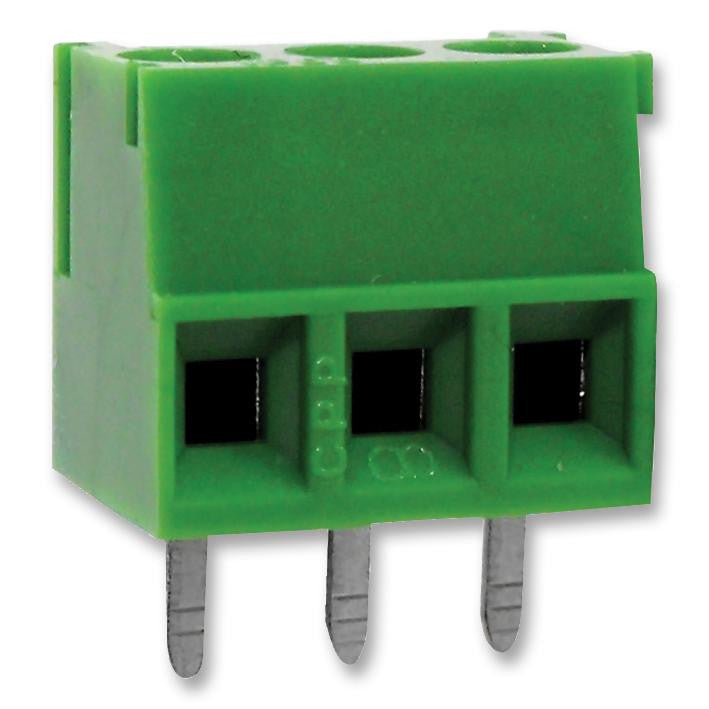

The CTB0305/3 is a 3-pole 3.5mm ultra low profile rising Clamp Terminal Block moulded in green UL94-V0 flame retardant PA (polyamide), brass contact with nickel-plated. 2 and 3 pole double interlocking mechanism for increased strength and guided pin alignment. 300V 10A rated, 2.5kV dielectric strength, 6kV impulse withstand voltage, M2 steel zinc plated and 0.3Nm screw/torque.
- 4 to 12-pole Pre-assembled
- Professional rising clamp terminals
- 0.2 to 1.5mm� (30 to 16AWG) Solid cable
- 0.2 to 1mm� (30 to 16AWG) Stranded cable
- Captive screws
Applications
Industrial
Product details
| Wire Size AWG Max | 16AWG |
| Contact Plating | Nickel Plated Contacts |
| Connector Type | Terminal Block, PCB |
| Product Range | CTB0305 Series |
| Contact Material | Brass |
| Pitch Spacing | 3.5mm |
| Wire Size AWG Min | 30AWG |
| Connector Mounting | PCB Mount |
Other details
| Brand | CAMDENBOSS |
| Part Number | CTB0305/3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
