Description

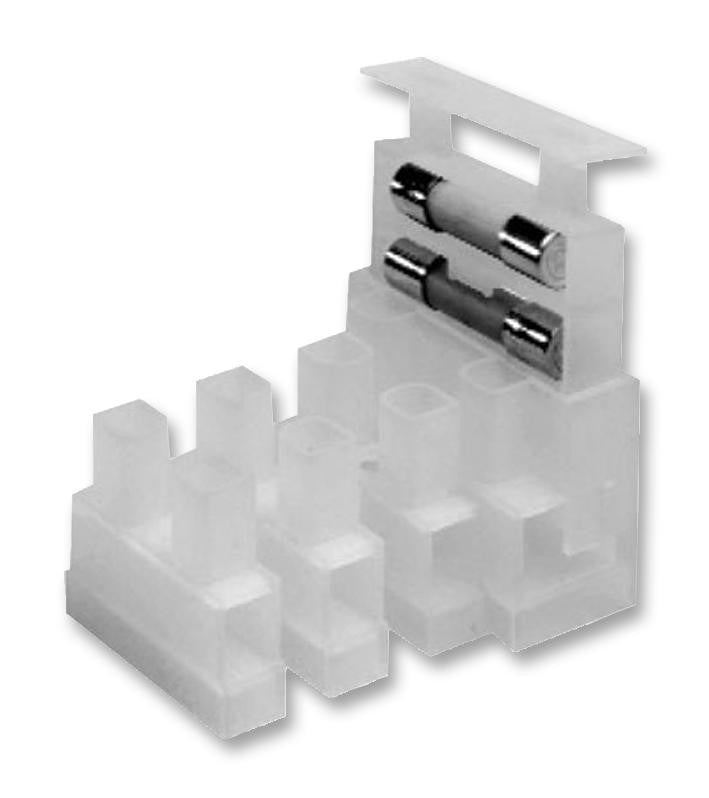

The CFTBN/3 is a 3-pole 450V/20A Fused Terminal Block with UL94-V0 flame retardant PA moulding, nickel plated brass terminal, phosphor bronze fuse clip, stainless steel wire protector, M3 screw, earth screw facility, wire protector on fused pole. It features anti rotation spigot, wire protectors on earth pole, 16mm fixing pitch and easily cut to size. It accepts 4mm� (2.5mm� with wire protector) cable entry. It meets creepage and clearance requirements of IEC (8mm). UL, IMQ, VDE, CE, SEMKO, FIMKO approved, on non earth version.
- 250VAC/13A Fuse holder rating
- IP20 Finger protection rating
Applications
Industrial
Product details
| Wire Size AWG Max | - |
| Wire Connection Method | Screw |
| Rated Current | 20A |
| No. of Positions | 3Ways |
| Conductor Area CSA | 4mm� |
| Product Range | - |
| Wire Size AWG Min | - |
| Fuse Size Held | 5mm x 20mm |
| Rated Voltage | 450V |
Other details
| Brand | CAMDENBOSS |
| Part Number | CFTBN/3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
