Description
Cambo f/5.6 Overview

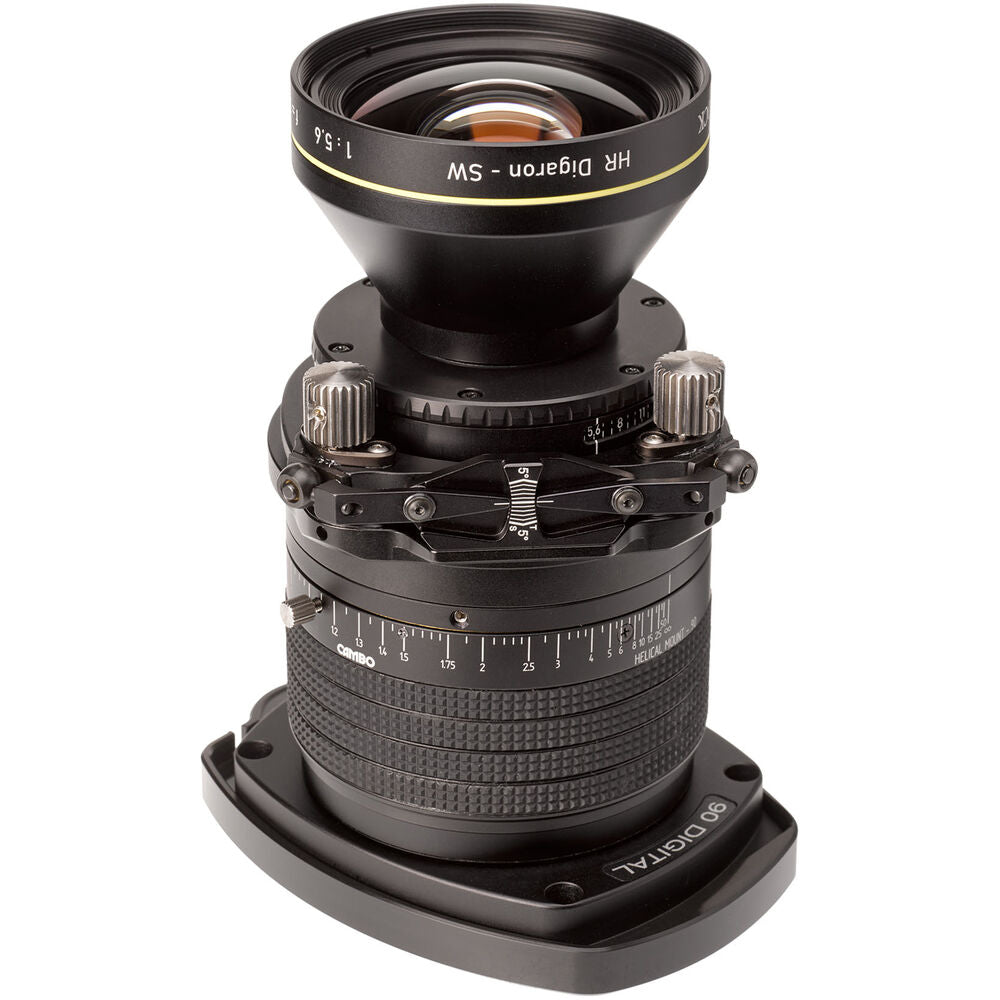

The Cambo WTSA-892X Long Barrel Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/90 HR-SW Digaron lens with Aperture Only mounted in a helical focusing mount. This combination allows for use on the PhaseOne XT camera body without vignetting.
This version has a long barrel construction. without rear extension unit. It also features a helical mount with a 25mm displacement for close-up focusing.
This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs up to 5 degrees tilt up and down and 5 degrees swing left and right, while both swing and tilt can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.
Shortest focal distance to object: 0.5m
Lens image circle: 120mm
Angle of View: 67°
Filter size: 72mm
This lens can be used on the Phase One XT camera System without electronic communication (i.e. no lens of shift information transmitted between camera and lens).
This combination allows for use on the PhaseOne XT camera body without vignetting.
Cambo f/5.6 Specs
| Focal Length | 90mm |
| Maximum Aperture | f/5.6 |
| Minimum Aperture | f/45 |
| Image Circle | 120mm at f/5.6 |
| Flange Focal Distance | 109.4 mm |
| Filter Size | 72 mm (Front) |
| Dimensions | ø: 3 x L: 4.2" / ø: 75 x L: 107 mm |
| Weight | 24 oz / 680 g |
Cambo f/5.6 Reviews
