Cambo 99121805 Overview

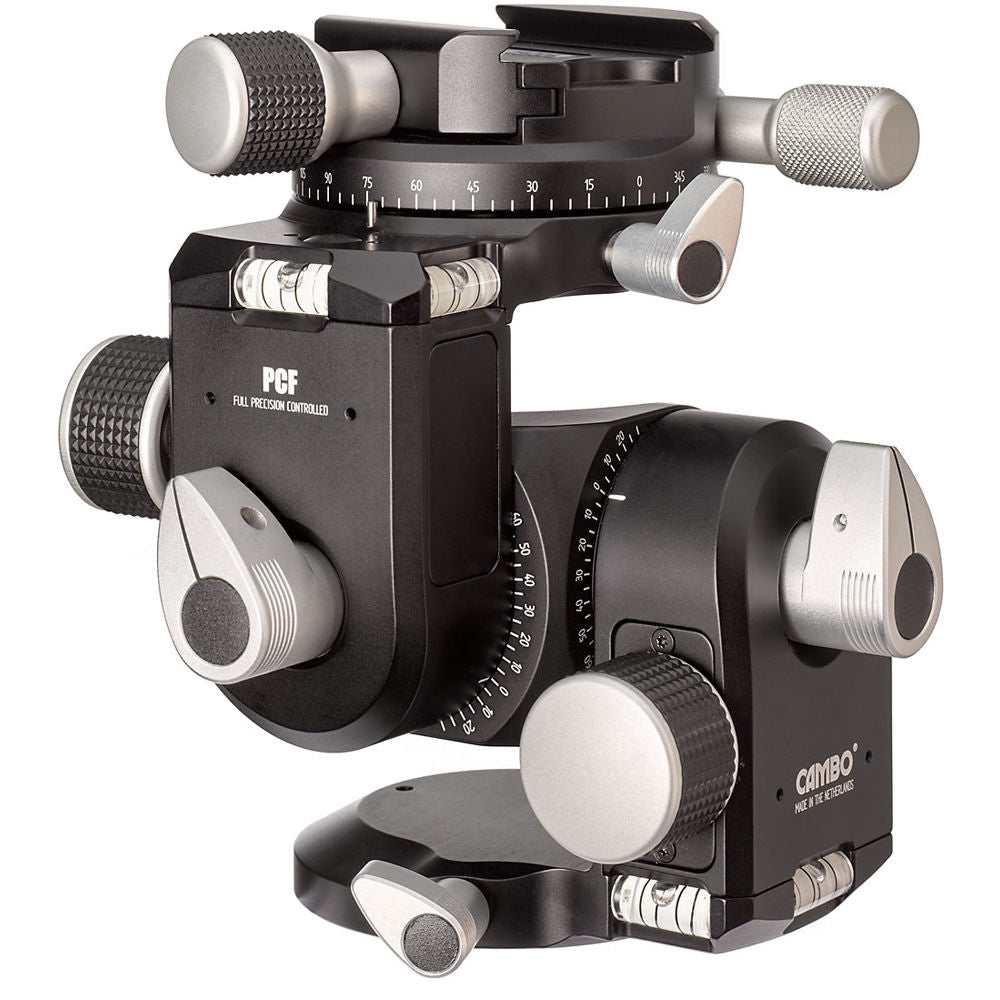

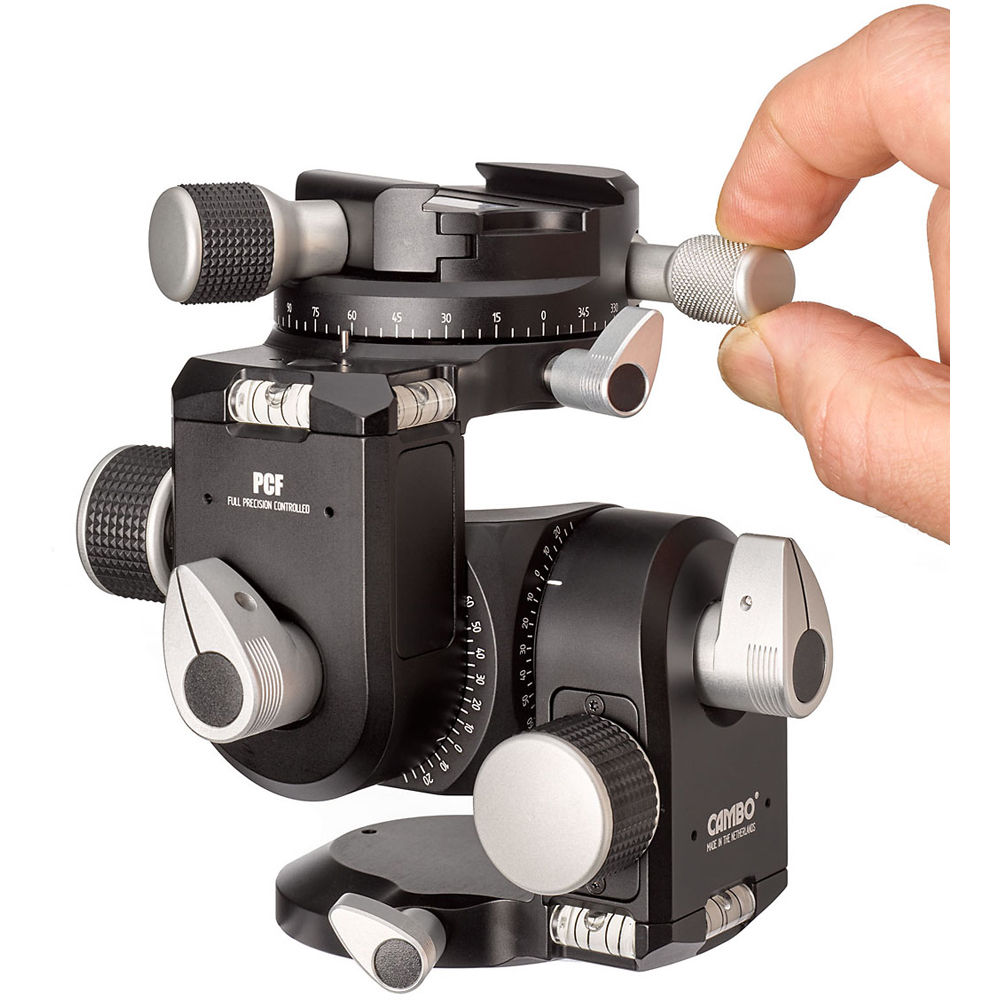

The 5.1" tall, Arca-type compatible Full Precision Controlled Geared Head from Cambo has all the same movements as a ball head, but with geared movements that you can move in precise increments to position your camera exactly where you want it. With cameras weighing up to 13.2 lb, you can laterally tilt the 2.8 lb head from -110 to +30° and pivot between the same ranges of -110 to +30°. At the same time, it has two rotations on the top and bottom of the head. All the movements are geared except for the bottom rotation, which is free-moving and manually controlled. The geared movements can also be disengaged to move freely, but you can add tension to the movements as well. Four bubble levels located on the top and the bottom of the head are provided to ensure straight horizons every time you situate your shot.
In the Box
- Cambo Full Precision Controlled Geared Head
- Cambo Quick Release Plate (60mm)
- Limited 1-Year Warranty (Extended 1 Year with Online Registration)
Cambo 99121805 Specs
General
| Head Type | Geared Head |
| Base Mount | 3/8"-16 Female & 1/4"-20 with Bushing |
| Camera Mounting Screw | 1/4"-20 Male |
| Quick Release Plate Type | Arca-Type |
| Load Capacity | 13.23 lb / 6 kg |
| Number of Bubble Levels | 4 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Material | Aluminum |
Pan & Tilt Range
| Lateral Tilt | -110° to +30° |
| Vertical Tilt | -110° to +30° |
| Panning Range | 360° |
Physical
| Dimensions | H: 5.1 x W: 4.3 x L: 4.0" / H: 13.0 x W: 10.9 x L: 10.2 cm |
| Weight | 2.8 lb / 1.27 kg |
