Description
Cambo Actus-G Overview
- 1Description
- 2Cambo ACTUS-G View Camera Body (Black)
- 3Cambo ACTAR-20 20mm f/4 Lens with Lens Plate
- 4Cambo AC-78E Bayonet Holder
- 5Cambo AC-782 ACTUS Bayonet Kit for Canon RF Mount Body

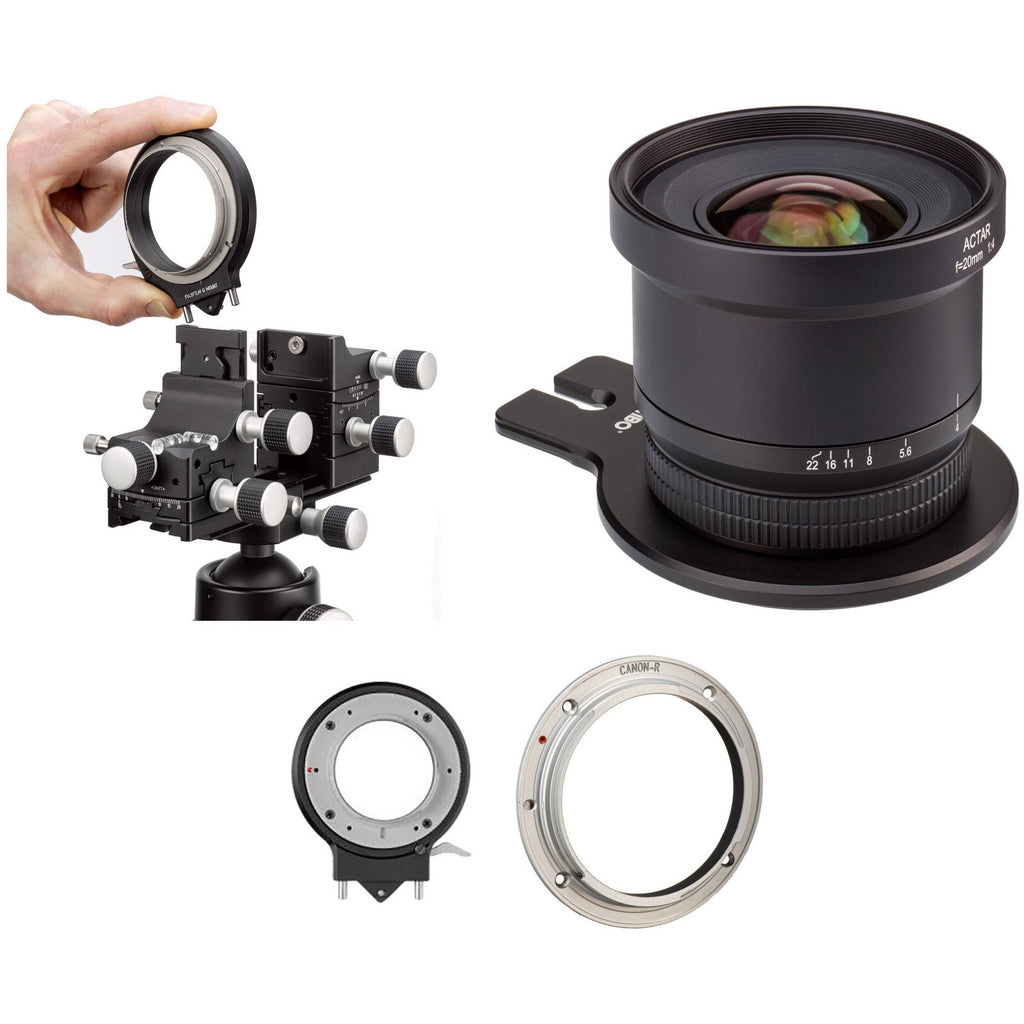

Ready out of the box to provide a unique photographic experience, the Cambo ACTUS-G 20mm Lens Kit for Canon EOS R includes the camera body, an exceptional 20mm wide-angle lens, and the mounts for your EOS R system.

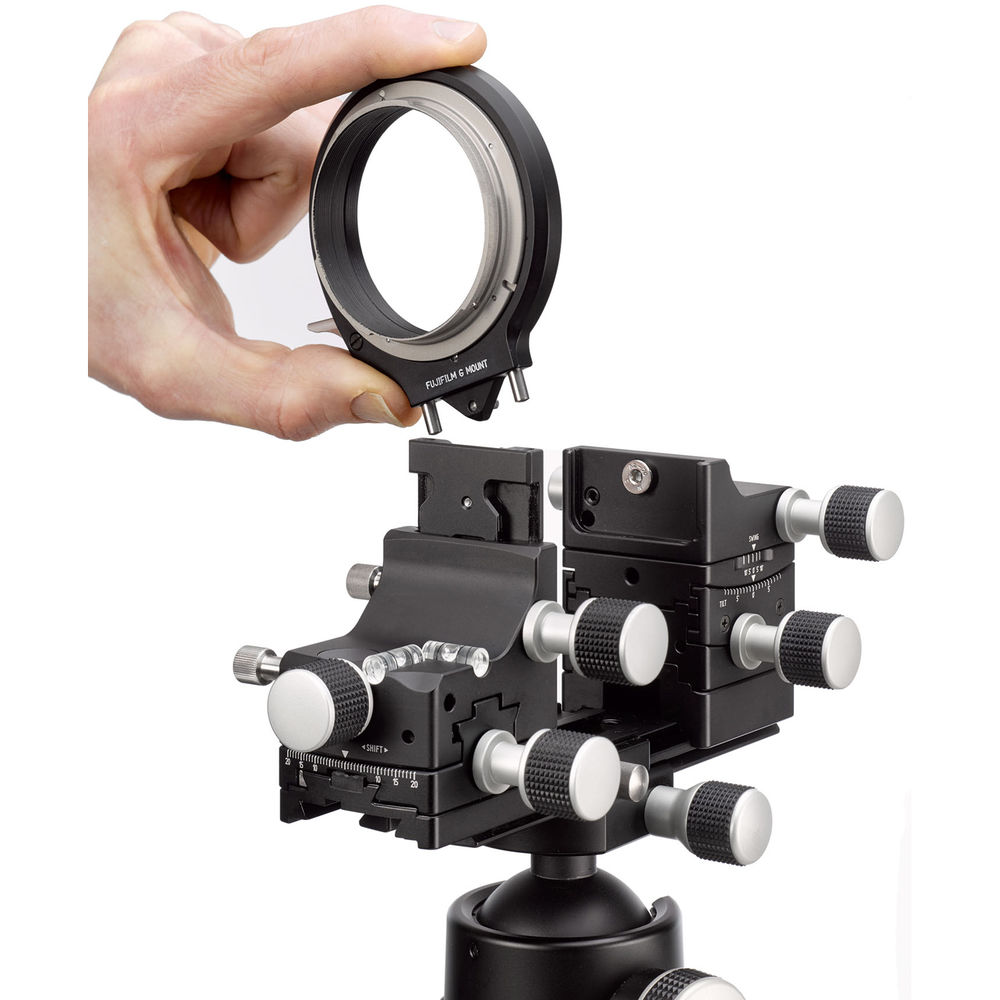

Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-G View Camera Body from Cambo effectively transforms your digital camera or back into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a digital camera body with a variety of lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates can be added depending on your desired lens type, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each.
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: +/- 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.
- Requires additional AC-792 or AC-793 Bayonet Holder, for use with Fujifilm GFX or Hasselblad X1D camera systems; AC-78E Bayonet Holder and dedicated camera mount bayonet, for use with Canon EF, Canon EF-M, Nikon F, Leica M, Sony E, Pentax K, Micro Four Thirds, Olympus OM-D, or Fujifilm X camera systems; or ACDB-989 SLW Interface Adapter Plate Holder and ACDB-series bellows, for use with select digital backs.
- Revised rear standard features geared horizontal shift and is compatible with removable bayonet holders.
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the camera position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of DSLR and mirrorless cameras.

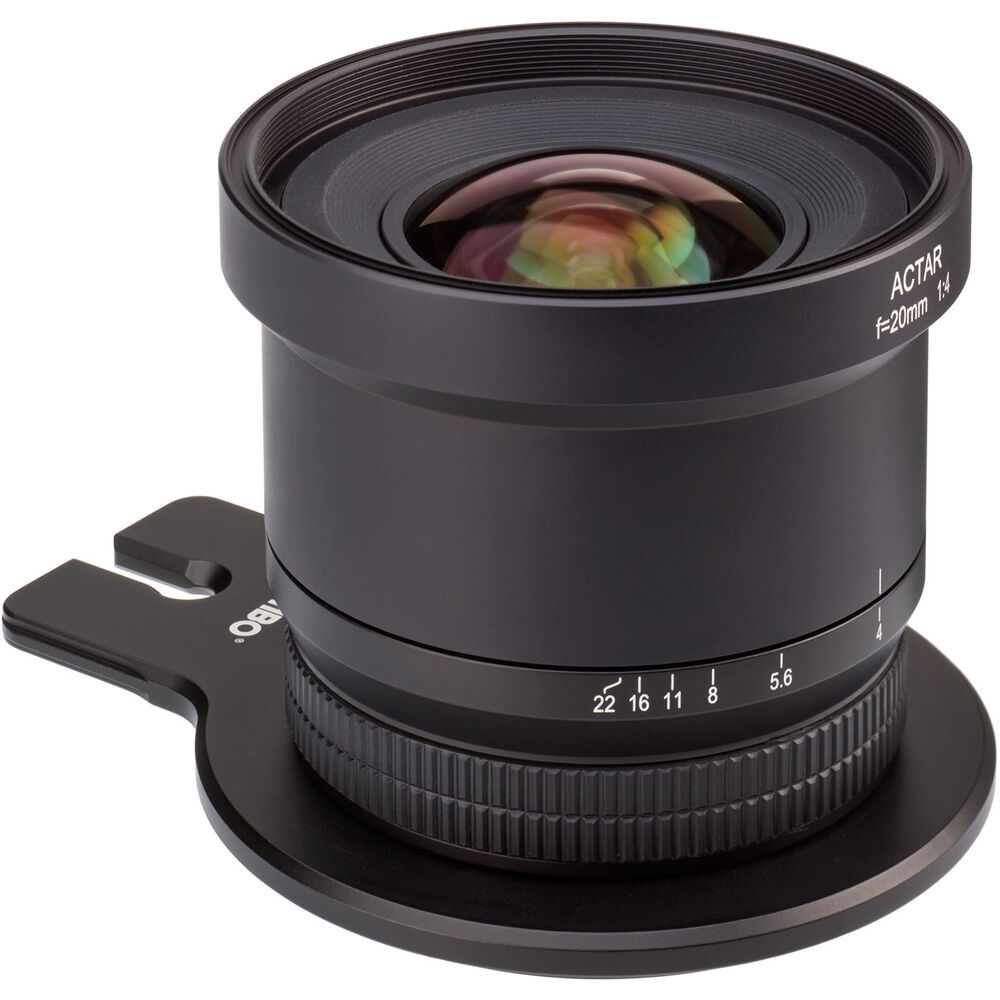

Designed for use in interior, landscape, and architectural photography, this ultrawide-angle ACTAR-20 20mm f/4 Lens from Cambo comes permanently mounted to an Actus System-compatible lens plate, converting your DSLR or mirrorless camera into a view camera. The lens' optical design, which includes 16 elements in 11 groups, produces images with almost no geometrical distortion. Additionally, the lens' 68mm image circle allows for horizontal shifts of 17mm to each side with a full-frame sensor and 8mm shifts when used with the FUJIFILM GFX 50 and GFX 100 series cameras.

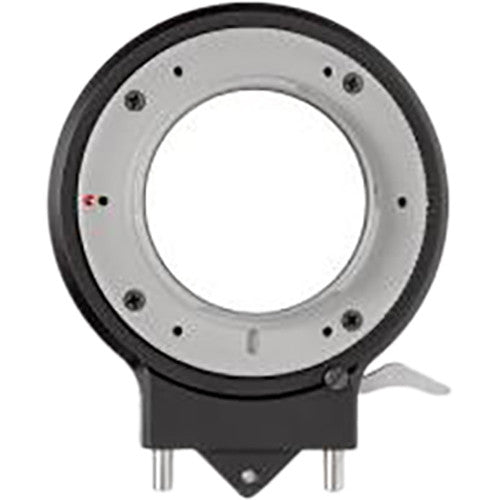

Enabling the use of a variety of camera types on the Cambo ACTUS-GFX view camera, the AC-78E Bayonet Holder is an optional component that replaces the GFX camera bayonet on the rear standard. Once attached, this holder can then be paired with a variety of DSLR and mirrorless camera bayonets to extend the versatility of the ACTUS camera system. Additionally, this holder offers 90° internal bayonet rotation for quickly switching between horizontal and vertical shooting orientations.
- AC-780 for Canon EF
- AC-781 for Canon EF-M
- AC-783 for Nikon F
- AC-785 for Leica M
- AC-786 for Sony E
- AC-787 for Pentax K
- AC-788 for Micro Four Thirds
- AC-789 for Olympus OM-D
- AC-790 for Fujifilm X

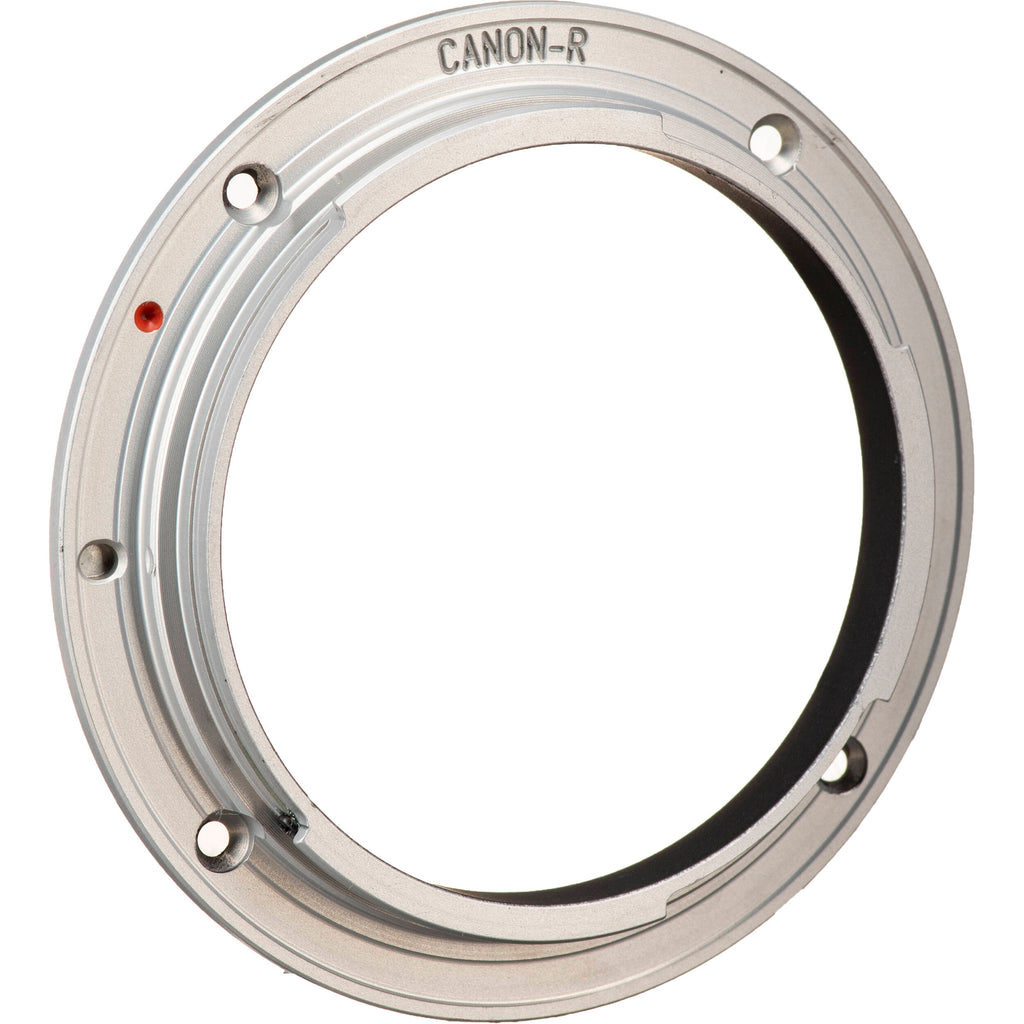

This AC-782 ACTUS Bayonet Kit from Cambo allows you to attach a Canon RF-mount body to the ACTUS View Camera.
In the Box
- Cambo ACTUS-G View Camera Body (Black)
- Cambo AC-210 Standard Bellows for ACTUS
- Cambo AC-315 Standard Monorail for ACTUS Cameras (6.1")
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Cambo ACTAR-20 20mm f/4 Lens with Lens Plate
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year - Cambo AC-78E Bayonet Holder
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Cambo AC-782 ACTUS Bayonet Kit for Canon RF Mount Body
- 4 x Mounting Screws
- Limited 1-Year Manufacturer Warranty
- Description
- Cambo ACTUS-G View Camera Body (Black)
- Cambo ACTAR-20 20mm f/4 Lens with Lens Plate
- Cambo AC-78E Bayonet Holder
- Cambo AC-782 ACTUS Bayonet Kit for Canon RF Mount Body
Cambo ACTUS-G View Camera Body (Black) Specs
| Camera Type |
View camera body for DSLR, mirrorless, or digital back capture
|
| Lens Mount |
Compatible with optional ACTUS-B lensplates
|
| Camera Mount |
Compatible with optional AC-792 Bayonet Holder for Fujifilm GFX, AC-793 Bayonet Holder for Hasselblad X1D, or additional ACTUS camera bayonet mounts via optional AC-78E Bayonet Holder
Compatible with optional ACDB-989 SLW Interface Adapter Plate Holder for digital back use |
| Monorail Length |
6.1" / 155 mm (standard AC-315 monorail)
|
| Bellows Extension |
4.9" / 125 mm (standard AC-210 bellows)
|
| Focusing System |
Quick slide adjustment, geared fine-focus adjustment
|
| Mounting |
Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail |
| Dimensions |
6.0 x 4.5 x 6.7" / 152 x 115 x 171 mm
|
| Weight |
2.5 lb / 1150 g
|
| Package Weight |
3.505 lb
|
| Box Dimensions (LxWxH) |
10.2 x 7.9 x 6.4"
|
Cambo ACTAR-20 20mm f/4 Lens with Lens Plate Specs
| Focal Length |
20mm
|
| Maximum Aperture |
f/4
|
| Minimum Aperture |
f/22
|
| Image Circle |
68mm at f/4
|
| Optical Design |
16 Elements in 11 Groups
|
| Filter Size |
82 mm (Front)
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
1.7 lb / 750 g
|
| Package Weight |
2.375 lb
|
| Box Dimensions (LxWxH) |
9.6 x 8 x 5.2"
|
Cambo AC-78E Bayonet Holder Specs
| Package Weight |
0.2 lb
|
| Box Dimensions (LxWxH) |
5.9 x 4.4 x 0.9"
|
Cambo AC-782 ACTUS Bayonet Kit for Canon RF Mount Body Specs
| Package Weight |
0.035 lb
|
| Box Dimensions (LxWxH) |
7.05 x 4.7 x 0.45"
|
