| ₹ 187730.0 includes GST and import duties. | |
| B2B customers can avail ₹ 28628.83 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Cambium XV3-8X00A00-US Overview
Enhance your business with reliable wireless network connectivity with the XV3-8 Tri-Band Wi-Fi 6 Access Point from Cambium. Designed primarily for edge services with high capacity and density, this access point may be configured with two 5 GHz 4x4 signals to accommodate environments that mostly rely on Wi-Fi 5 (802.11ac) devices. As users adopt more Wi-Fi 6 (802.11ax) devices, you have the option of combining both radios into a single 5 GHz 8x8 band, supporting up to 4804 Mb/s speeds while the 2.4 GHz frequency transfers up to 1147 Mb/s.

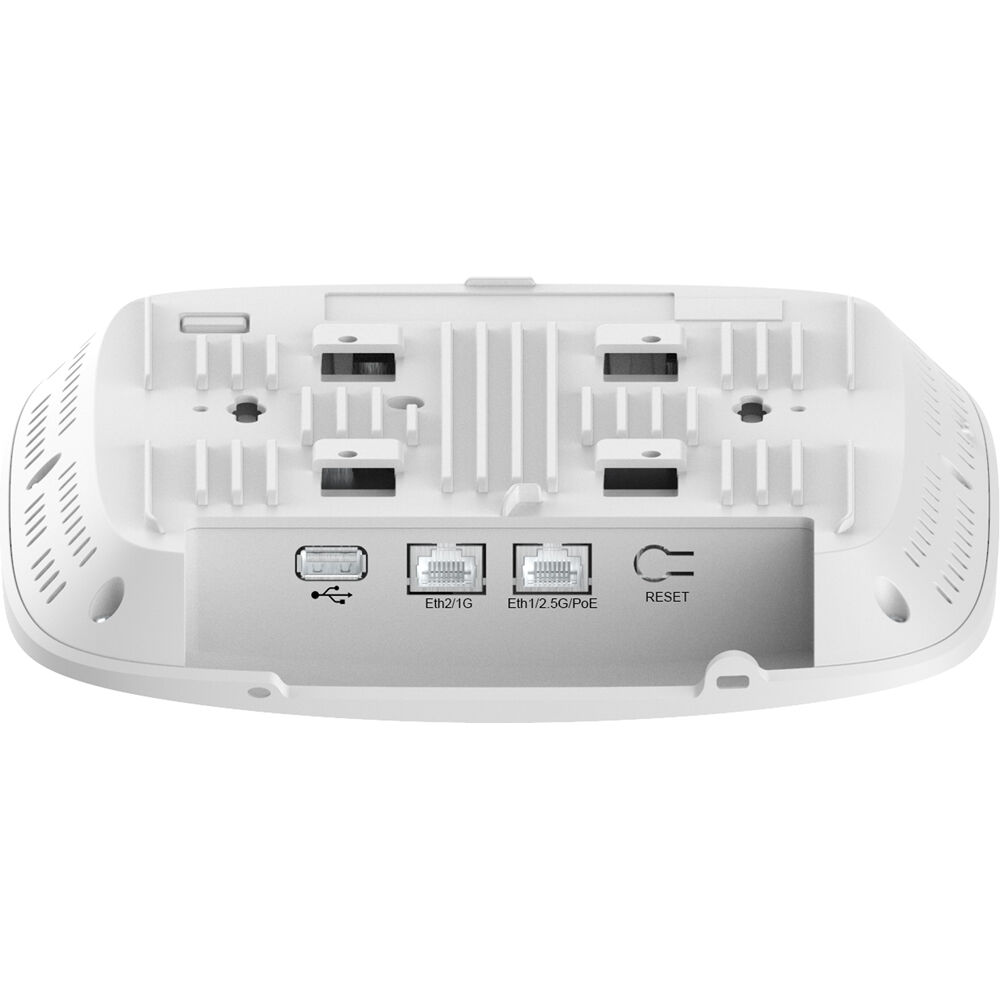

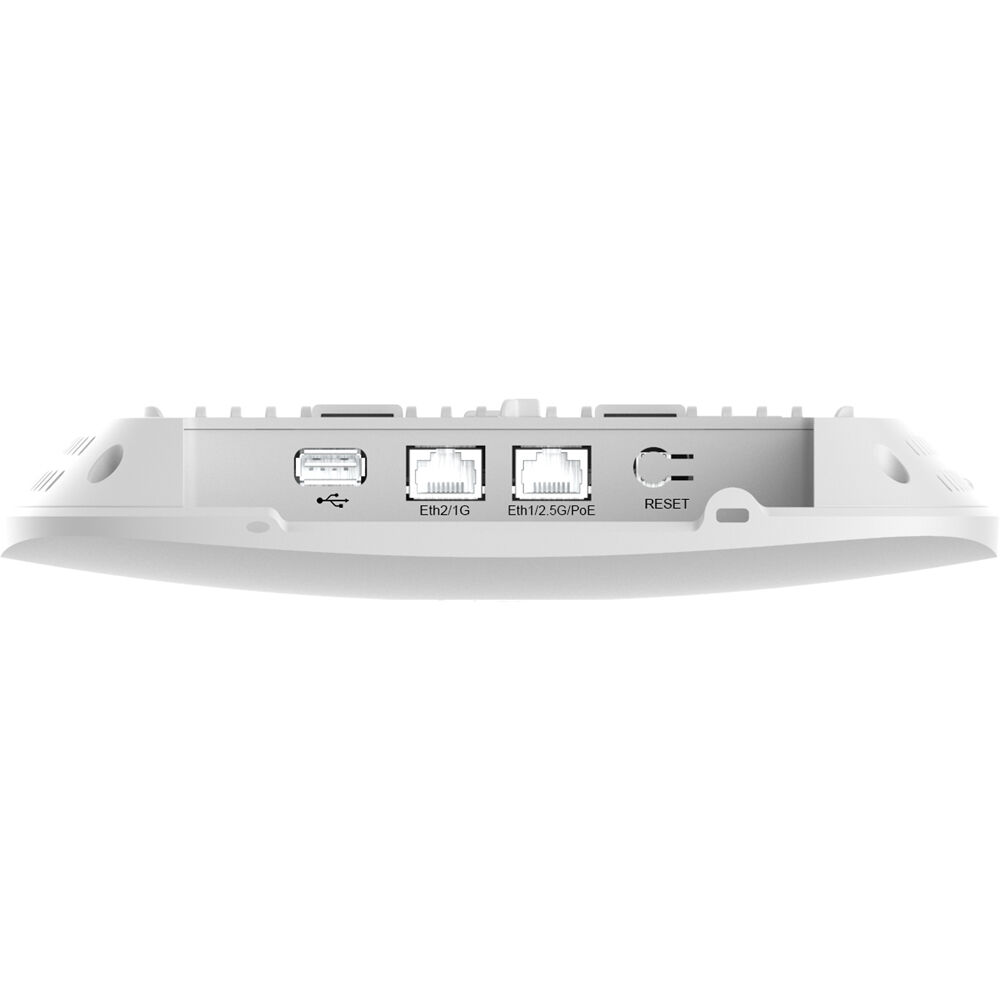

A 2.5G Ethernet port is available alongside a Gigabit speed port, both of which support PoE, allowing you to transfer data and power over a single cable. Supporting up to 1024 clients and 16 SSIDs, you can configure this access point locally or using cloud-based platforms such as cnMaestro. You can also set up a custom captive portal to advertise your business and separate user access. Your wireless network is secured with WPA3 encryption.
In the Box
- Cambium XV3-8 Tri-Band Wi-Fi 6 Access Point
- Limited Lifetime Warranty
Cambium XV3-8X00A00-US Specs
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 4.1
|
| Wi-Fi |
Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support
|
| Number of Antennas |
3
|
| Antenna Gain |
5 to 6.7 dBi
|
| Transmit Power |
31 to 36 dBm
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server PEAP RADIUS SSID TLS TTLS WMM |
| Antenna Placement |
Internal
|
| Bluetooth |
4.1 LE
|
| Throughput |
6000 Mb/s Total
2.4 GHz: 1147 Mb/s 5 GHz: 4804 Mb/s |
| Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s Ethernet (RJ45) 1 x 5 Gb/s USB-A |
| USB Sharing Support |
Yes
|
| Guest Network Support |
Yes
|
| Wireless Security |
AES, TKIP, WEP, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
|
| Lock Slot |
Yes, Kensington
|
| Operation Modes |
Access Point, Mesh
|
| Supported Clients |
1024
|
| Max SSIDs Supported |
32
|
| Mobile App Compatible |
No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
| Storage Capacity |
No
|
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, 802.11s, 802.11u, 802.11v
|
| DC Input Power |
12 VDC
|
| Power Consumption |
35 W
|
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
95% (Non-Condensing)
|
| Environmental Protection |
No
|
| Certifications |
FCC, IC, CE, EN, IEC, UL, WEEE, RoHS
|
| Mount Options |
Wall, Ceiling
|
| Dimensions |
9.3 x 9.3 x 1.7" / 235 x 235 x 42 mm
|
| Weight |
2.8 lb / 1250 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 183975.4 |
| 3-5 | ₹ 182098.1 |
| 5-10 | ₹ 178343.5 |
| 10+ | ₹ 174588.9 |
Bulk discount will be automatically applied during checkout based on quantity.
