Description
Cambium XV2-22H0A00-US Overview

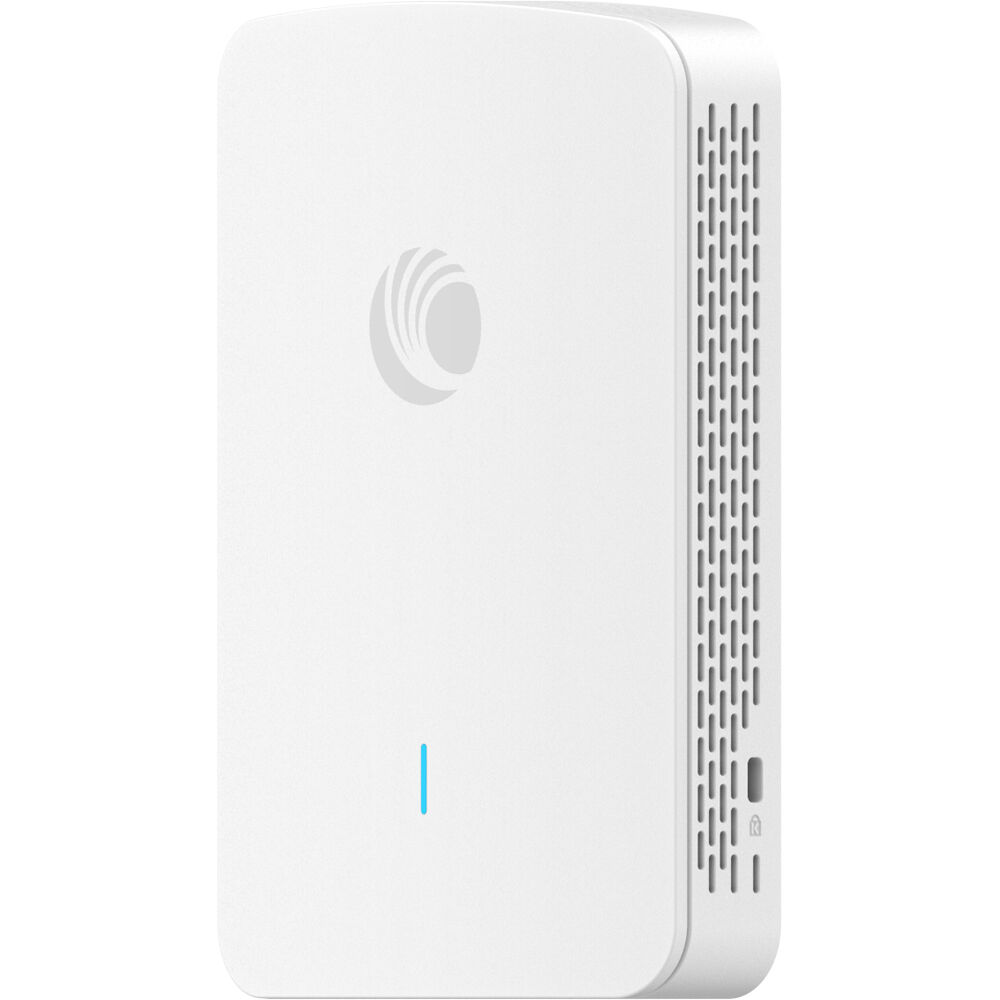

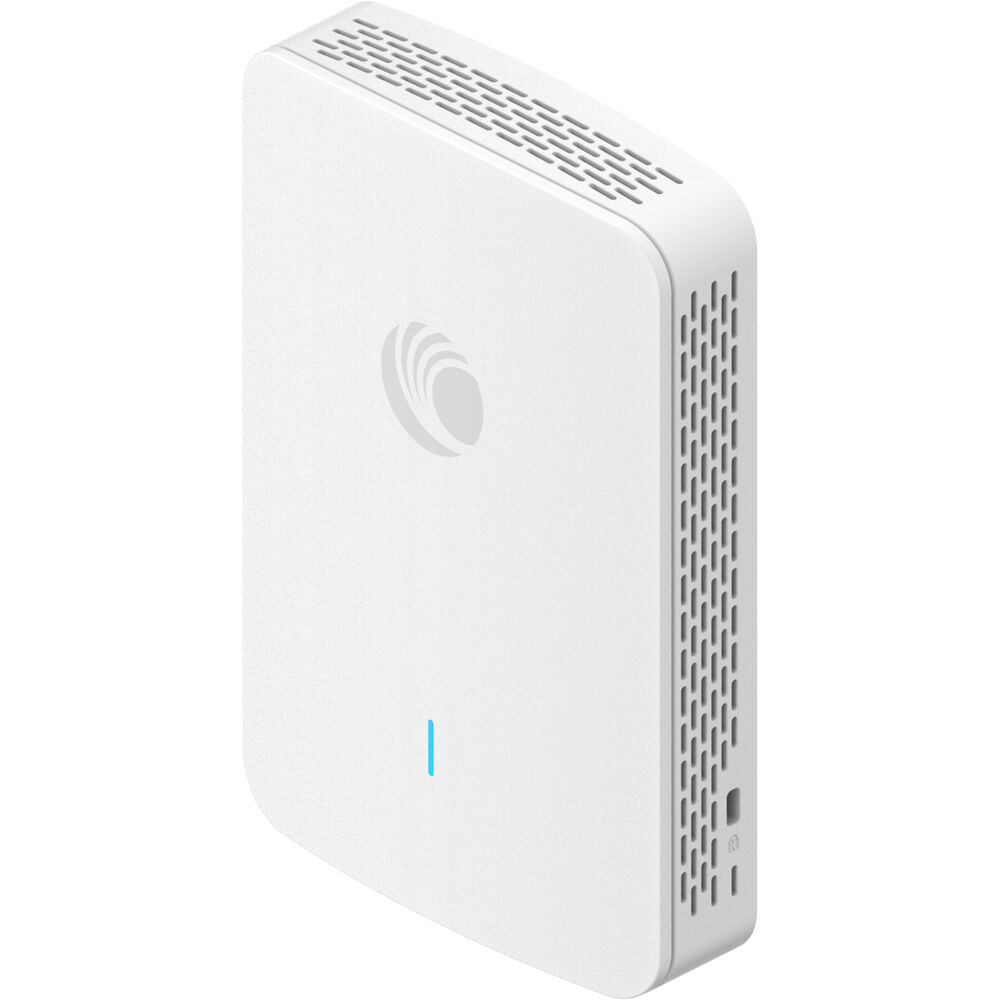

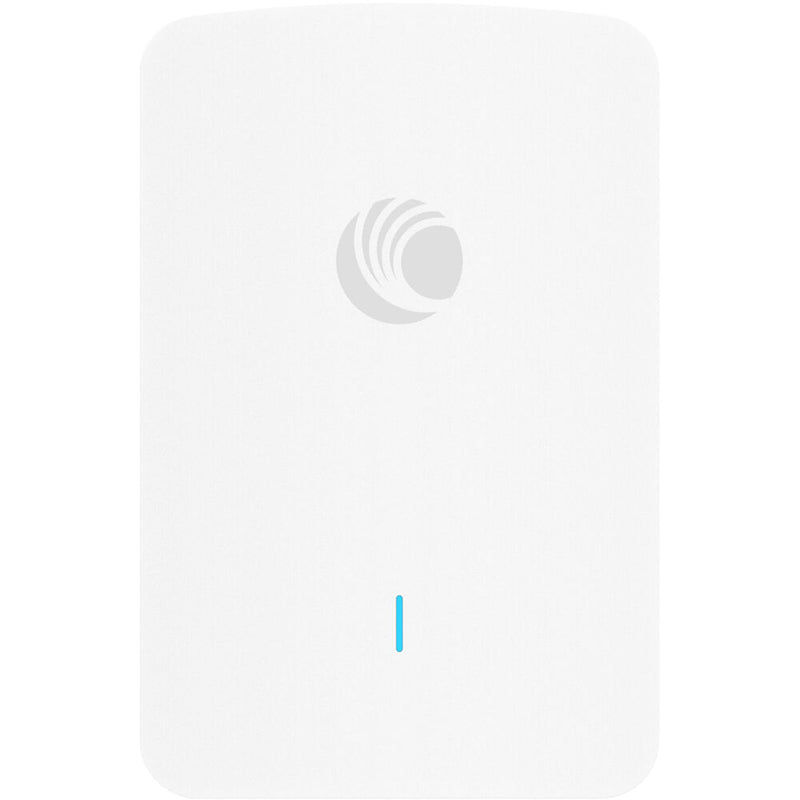

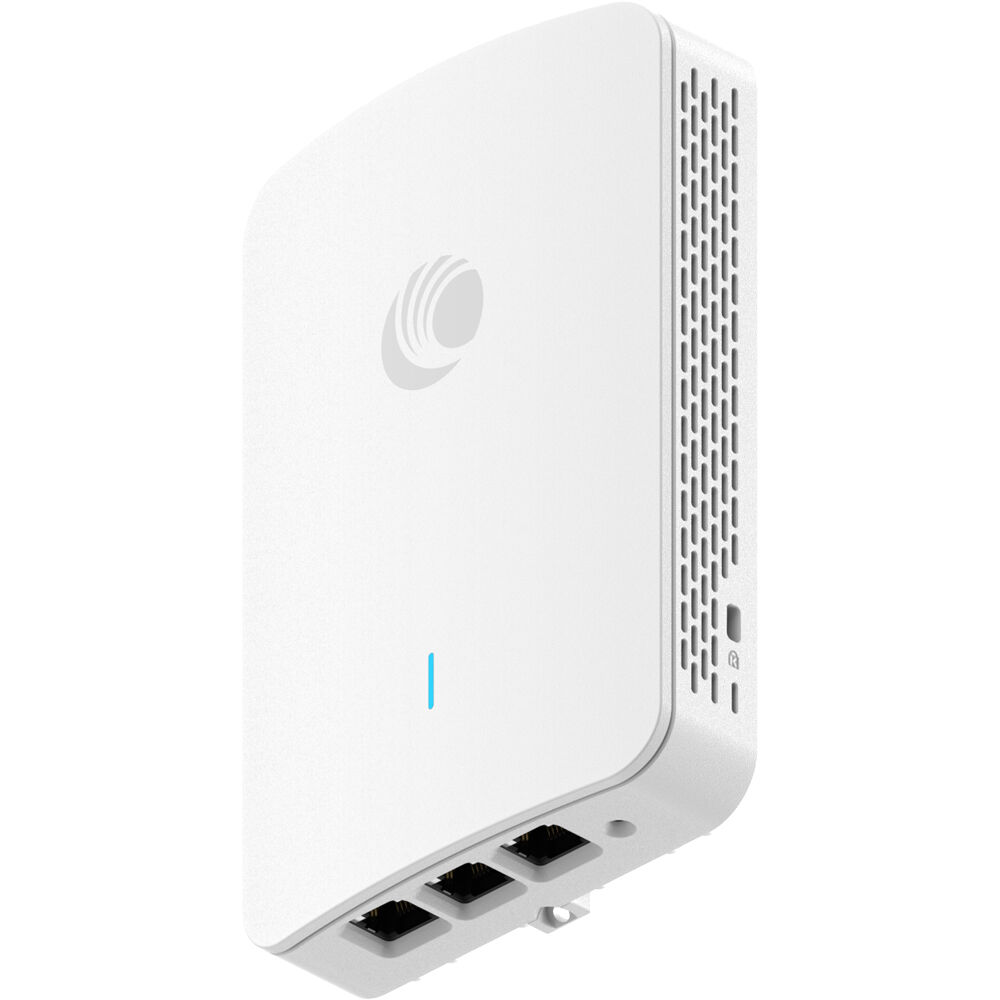

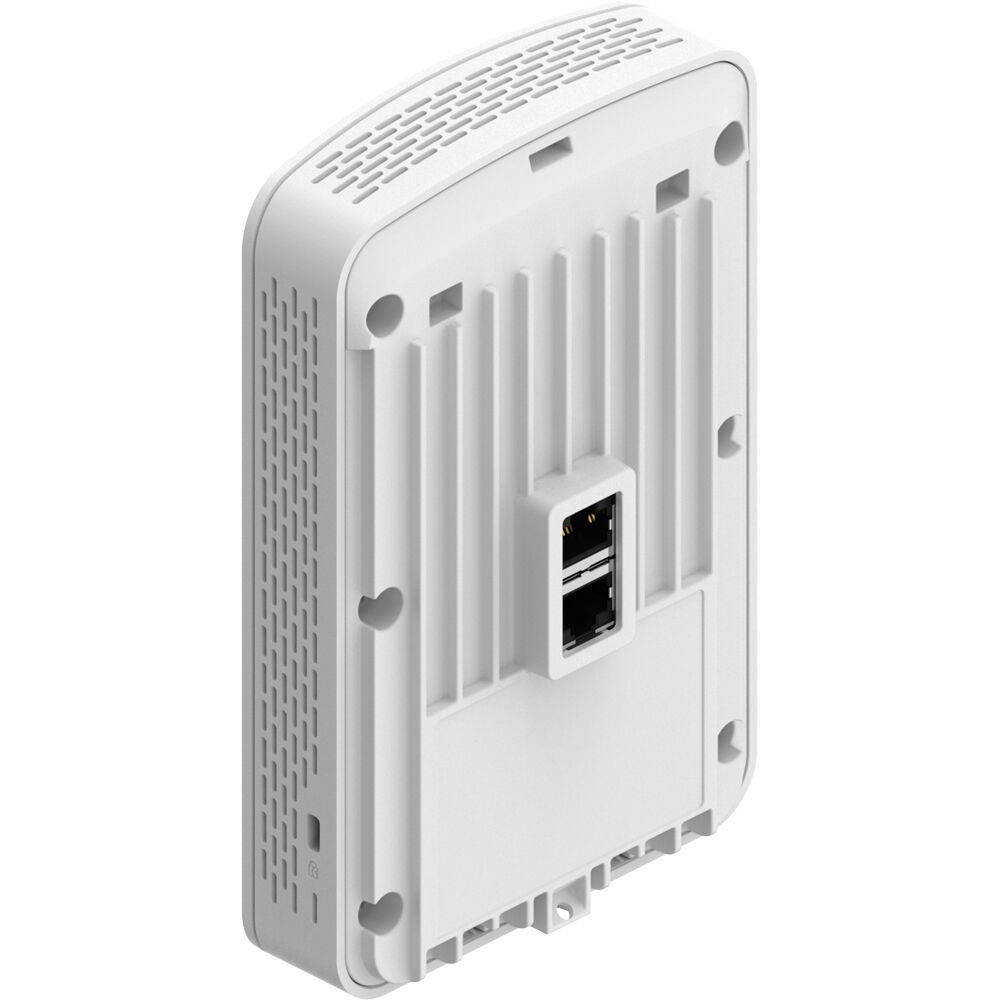

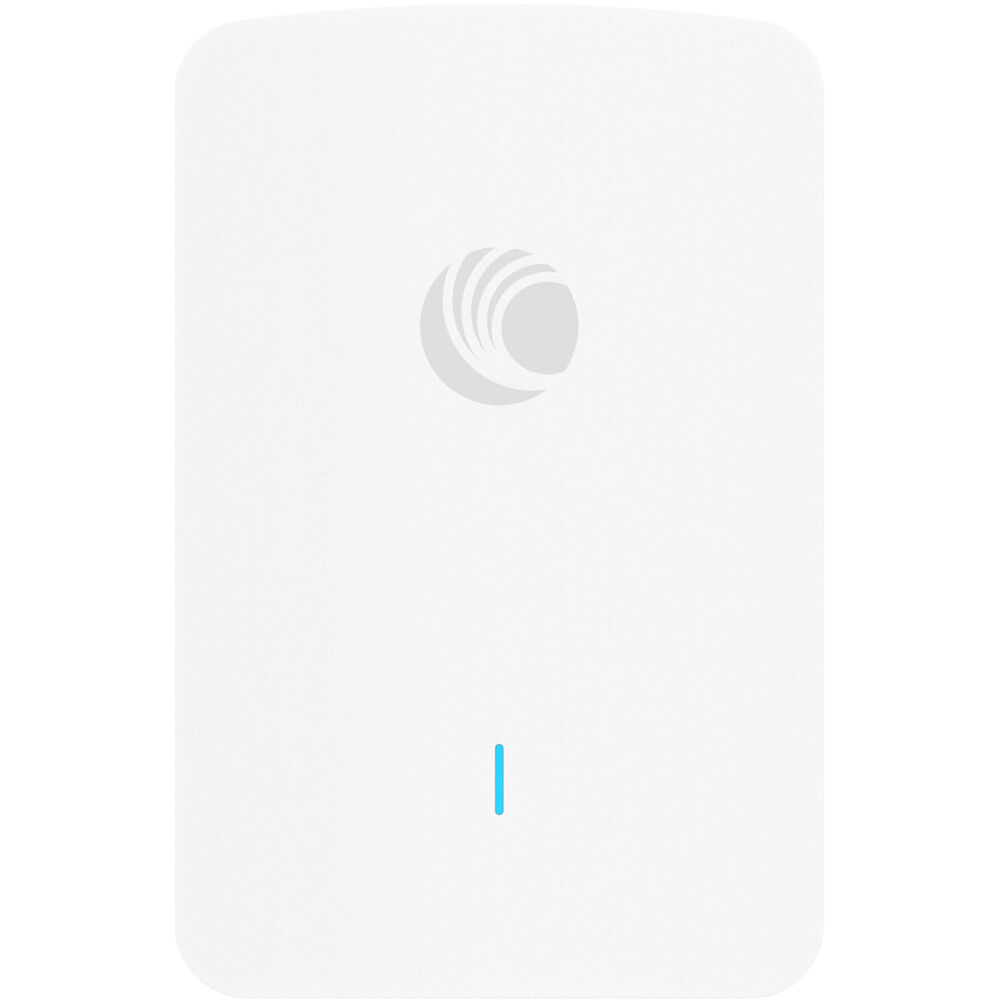

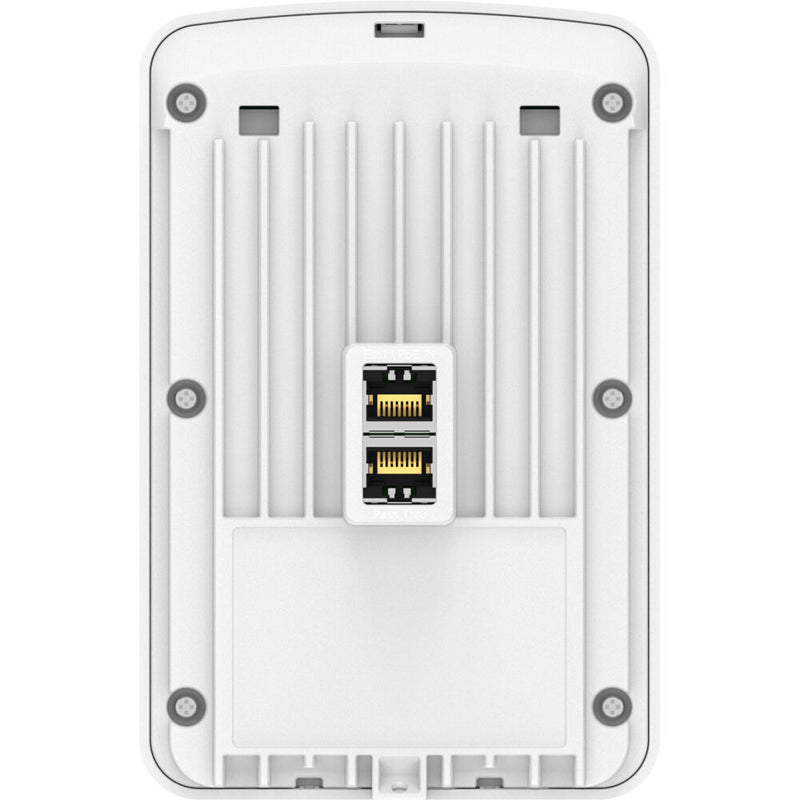

Enhance your business with reliable wireless network connectivity using the XV2-22H Wi-Fi 6 Wall Plate Access Point from Cambium. Supporting up to 128 clients and 16 SSIDs, this access point may be quickly mounted to a wall plate using the included junction box mounting kit, making it ideal for supporting a variety of IoT devices. Transfer data and power to the access point by connecting the rear PoE+ compliant Gigabit Ethernet uplink port to your compatible network. Two Gigabit Ethernet ports are available on the bottom of the unit, each supporting up to 10W of PoE. There is also an RJ45 passthrough leading from the rear to the bottom.
Once configured locally or using cloud-based platforms such as cnMaestro, the XV2-22H can deliver up to a combined 2976 Mb/s throughput rate over the 2.4 GHz and 5 GHz bands with compatible devices. You can also set up a custom captive portal to advertise your business and separate user access. Your wireless network is secured with WPA3 encryption.
In the Box
- Cambium XV2-22H Wi-Fi 6 Wall Plate Access Point
- Junction Box Mount
- Limited Lifetime Warranty
Cambium XV2-22H0A00-US Specs
| Wi-Fi |
Wi-Fi 6 (802.11ax) with MU-MIMO Support (2 x 2)
|
| Throughput |
2976 Mb/s Total
5 GHz: 2402 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1 x RJ45 Gigabit Ethernet (WAN) PoE+
2 x RJ45 Gigabit Ethernet PoE 2 x RJ45 (Pass-Through) |
| Wi-Fi |
Wi-Fi 6 (802.11ax) with MU-MIMO Support (2 x 2)
|
| Antenna Gain |
4.4 to 5.5 dBi
|
| Supported Protocols |
Auto-MDIX/MDI
IPv4 IPv6 RADIUS |
| Antenna Placement |
Internal
|
| Bluetooth |
No
|
| Throughput |
2976 Mb/s Total
5 GHz: 2402 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1 x RJ45 Gigabit Ethernet (WAN) PoE+
2 x RJ45 Gigabit Ethernet PoE 2 x RJ45 (Pass-Through) |
| Guest Network Support |
Yes
|
| Wireless Security |
WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
|
| Lock Slot |
Yes, Kensington
|
| Operation Modes |
Access Point
|
| Supported Clients |
128
|
| Max SSIDs Supported |
16
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11n, 802.11r, 802.11u, 802.1x, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Operating Humidity |
95%
|
| Dimensions |
6.3 x 4.1 x 1.3" / 160 x 105 x 32 mm
|
| Weight |
0.9 lb / 417 g
|
| Package Weight |
1.305 lb
|
| Box Dimensions (LxWxH) |
7 x 5.4 x 2.4"
|
