Description
Cambium TX 2012R-P Overview
- 1Description
- 2Flexible Management
- 3Cambium Sync
- 4Performance
- 5Easy Installation & Management
- 6Layer 2 Features
- 7Layer 3 Features
- 8Quality of Service
- 9Traffic Management
- 10Cooling

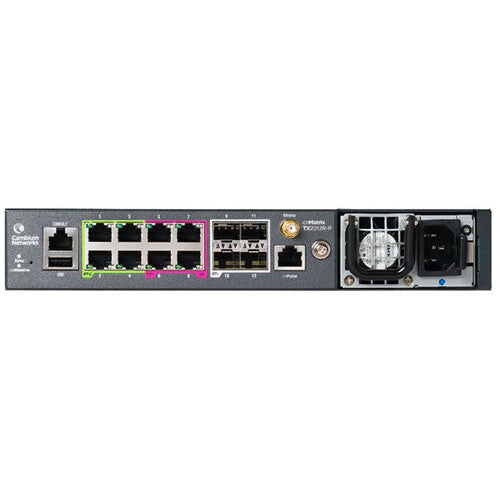

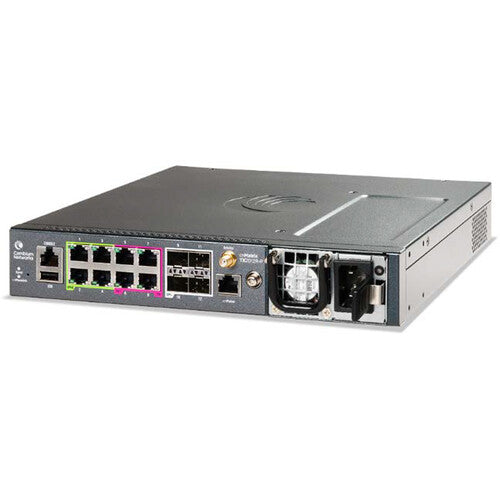

Designed primarily for wireless ISP (WISP) operators, the cnMatrix TX2012R-P 8-Port PoE 4 Compliant Gigabit Network Switch from Cambium delivers flexible performance and Cambium synchronization features in a single box. Each of the eight Cambium Sync-compatible Gigabit speed Ethernet ports support up to 90W of power. Install up to two separately purchased modular power supplies for redundancy and to customize the switch's capabilities to fit your needs. Four SFP+ slots are also available for up to 10 Gb/s fiber uplink connections.
This network switch may be installed into a 1 RU rackmount space with the included kit.
Flexible Management
This switch supports cloud-based and on premise management through the cnMaestro or XMS platforms.
Cambium Sync
Cambium synchronization is a single-box solution that is easy to install and manage while improving network performance. Features include redundant input sync sources, support for an optional internal GPS module and external antenna, cnPulse compatibility, and full per-port controls with stats.
Performance
With a 96 Gb/s switching capacity and 120 Mpps forwarding rate, the cnMatrix TX2012R-P provides fast and smooth data transfers.
Easy Installation & Management
Zero-touch deployment simplifies installation. Policy Based Automation eliminates manual configuration during adds, moves, and changes of network devices.
Layer 2 Features
Layer 3 Features
Quality of Service
Traffic Management
Cooling
Two cooling fans help to maintain optimal performance while producing minimal noise.
In the Box
- Cambium cnMatrix TX2012R-P 8-Port PoE 4 Compliant Gigabit Network Switch
- Limited Lifetime Warranty
Table of Contents
- Description
- Flexible Management
- Cambium Sync
- Performance
- Easy Installation & Management
- Layer 2 Features
- Layer 3 Features
- Quality of Service
- Traffic Management
- Cooling
Cambium TX 2012R-P Specs
Key Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE++ (Type 4)
4 x SFP+ 10 GbE (WAN) 1 x RS-232 (LAN) 1 x USB-A 1 x RJ45 (LAN) |
Interfaces
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE++ (Type 4)
4 x SFP+ 10 GbE (WAN) 1 x RS-232 (LAN) 1 x USB-A 1 x RJ45 (LAN) |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering RADIUS |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
256
|
| VLAN Groups |
4000
|
Security
| Security Features |
DHCP Snooping
DoS Attack Prevention RADIUS Authentication Storm Control |
| Static Routes |
64
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ac, 802.3ad, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3u
|
Performance
| Forwarding Rate |
120 Mpps
|
| Switching Bandwidth |
96 Gb/s
|
| Priority Queues |
8
|
Computer
| Flash Memory |
128 MB
|
| CPU |
Single-Core: Up to 800 MHz
|
| Memory |
512 MB
|
Electrical
| Power Draw |
38.88 W (Max)
|
| AC Input Power |
No
|
| PoE per Port |
90 W
|
| Power Supply Type |
Redundant
|
Environmental
| Operating Temperature |
22 to 97°F / -10 to 65°C
|
| Operating Humidity |
95%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
General
| Certifications |
No
|
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
393,648 Hours
|
| Indicator Lights |
Link/Activity, PoE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
10.2 x 9.8 x 1.7" / 26 x 25 x 4.4 cm
|
| Weight |
4.94 lb / 2.24 kg
|
Packaging Info
| Package Weight |
6.06 lb
|
| Box Dimensions (LxWxH) |
14.7 x 12.6 x 3.8"
|
