Description
Cambium EX2028-P Overview
- 1Description
- 2Flexible Management
- 3Performance
- 4Layer 2 & Layer 3 Switch
- 5Easy Installation & Management
- 6Cooling

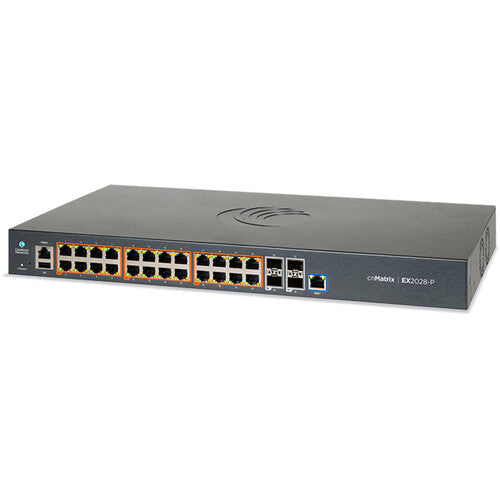

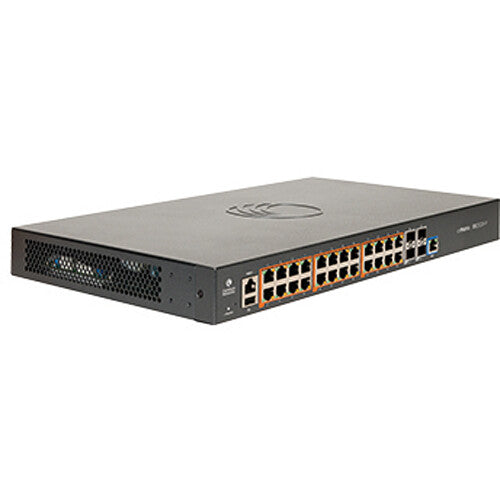

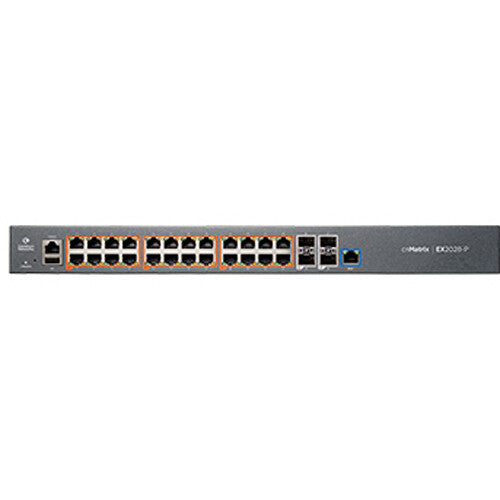

Integrating the cnMatrix EX2028-P 24-Port Gigabit PoE+ Compliant Managed Switch from Cambium into your network allows you to quickly expand your business's network capacity. Its 24 Gigabit speed Ethernet ports each support up to 30W with a 400W budget to operate access points, IP security cameras, VoIP phones, and other powered devices. Four SFP+ slots are also available for up to 10 Gb/s fiber uplink connections.

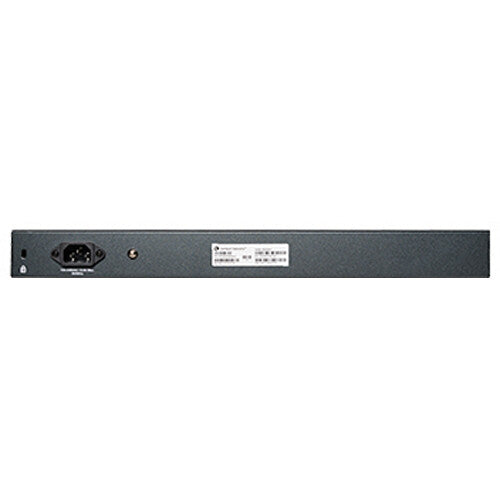

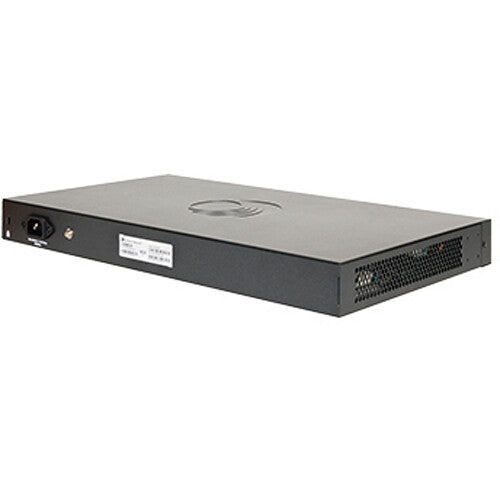

This network switch may be installed into a 1 RU rackmount space with the included kit. Please be aware that a power cable is not included.
Flexible Management
This switch supports cloud-based and on premise management through the cnMaestro or XMS platforms.
Performance
With a 128 Gb/s switching capacity and 120 Mpps forwarding rate, the cnMatrix EX2028-P provides fast and smooth data transfers.
Layer 2 & Layer 3 Switch
Comprehensive Layer 2 and Layer 3 support provides a wide range of features and enhanced security.
Easy Installation & Management
Zero-touch deployment simplifies installation. Policy Based Automation eliminates manual configuration during adds, moves, and changes of network devices.
Cooling

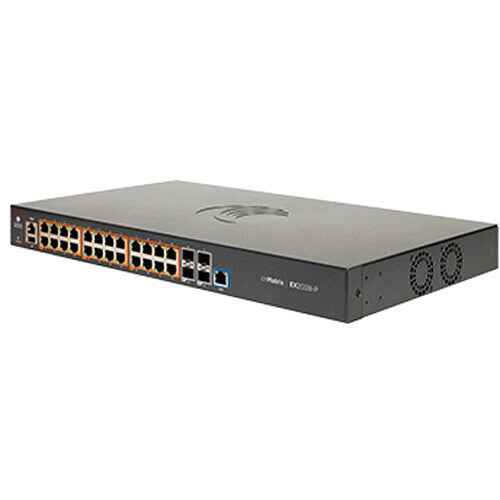

Two cooling fans help to maintain optimal performance while producing minimal noise.
In the Box
- Cambium cnMatrix EX2028-P 24-Port Gigabit PoE+ Compliant Managed Network Switch
- Rackmount Kit
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Flexible Management
- Performance
- Layer 2 & Layer 3 Switch
- Easy Installation & Management
- Cooling
Cambium EX2028-P Specs
Key Specs
| Wi-Fi |
No
|
| Inputs/Outputs |
24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10Gb SFP+ (Uplink) |
| PoE Power Budget |
400 W
|
| Inputs/Outputs |
24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10Gb SFP+ (Uplink) |
Protocols
| Layer Services Supported |
Layer 2 Support, Layer 3 Support
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv3 TLS |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
256
|
| VLAN IDs |
4000
|
Security
| Security Features |
DHCP Snooping
DoS Attack Prevention RADIUS Authentication Storm Control |
| Static Routes |
64
|
| SNMP Support |
1, 2, 3
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3u, 802.3x
|
Performance
| Forwarding Rate |
120 Mpps
|
| Switching Bandwidth |
128 Gb/s (Non-Blocking)
|
| Priority Queues |
8
|
Computer
| Flash Memory |
128 MB
|
| CPU |
Single-Core: Up to 800 MHz
|
| Memory |
512 MB
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
400 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Operating Humidity |
95%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Noise Level |
52.0 dB
|
General
| Certifications |
No
|
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
285,350 Hours
|
| Indicator Lights |
Link/Activity/PoE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 9.8 x 1.7" / 44 x 25 x 4.4 cm
|
| Weight |
8.73 lb / 3.96 kg
|
Packaging Info
| Package Weight |
10.5 lb
|
| Box Dimensions (LxWxH) |
19 x 13.5 x 3.75"
|
