Description
Cambium EX2016M-P Overview
- 1Description
- 2Flexible Management
- 3Performance
- 4Layer 2 & Layer 3 Switch
- 5Easy Installation & Management
- 6Cooling

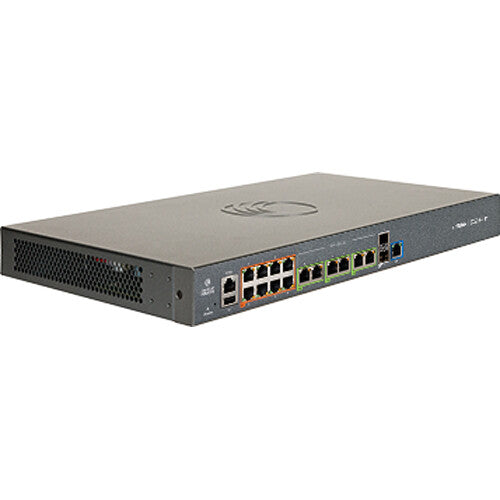

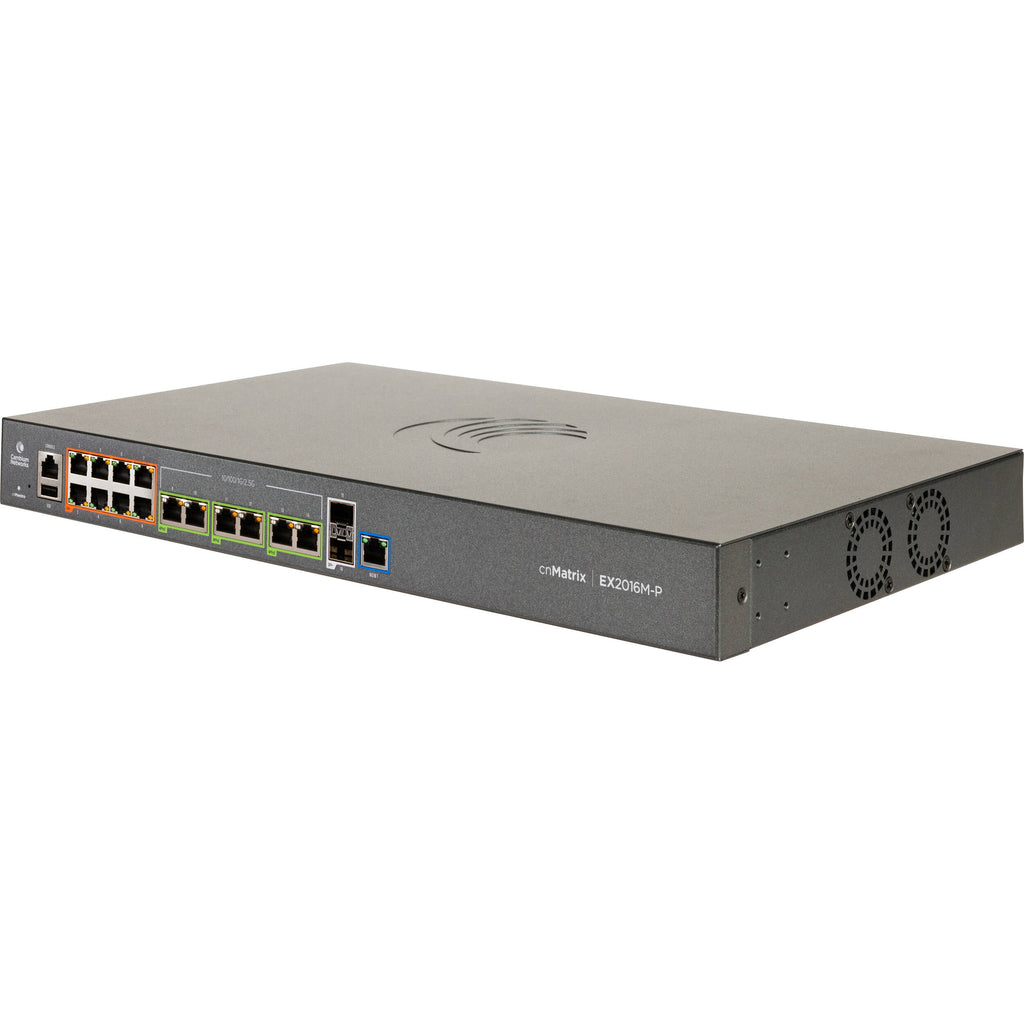

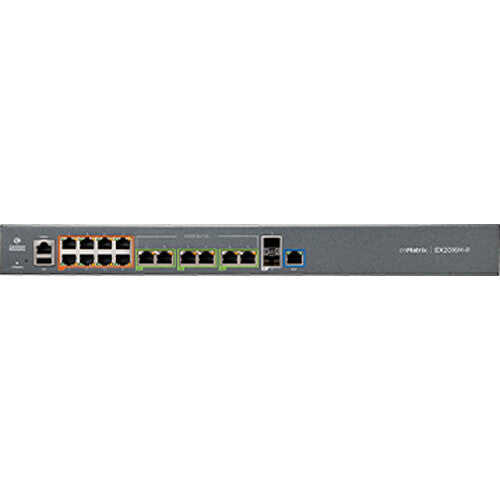

Integrating the cnMatrix EX2016M-P 14-Port PoE+/PoE++ Compliant Multi-Gig Managed Switch from Cambium into your network allows you to quickly expand your business's network capacity. It includes eight 30W Gigabit speed Ethernet PoE+ ports alongside six 60W 2.5G ports with a 240W budget to operate access points, IP security cameras, VoIP phones, and other powered devices. Two SFP+ slots are also available for up to 10 Gb/s fiber uplink connections.
This network switch may be installed into a 1 RU rackmount space with the included kit. Please be aware that a power cable is not included.
Flexible Management
This switch supports cloud-based and on premise management through the cnMaestro or XMS platforms.
Performance
With an 86 Gb/s switching capacity and 120 Mpps forwarding rate, the cnMatrix EX2016M-P provides fast and smooth data transfers.
Layer 2 & Layer 3 Switch
Comprehensive Layer 2 and Layer 3 support provides a wide range of features and enhanced security.
Easy Installation & Management
Zero-touch deployment simplifies installation. Policy Based Automation eliminates manual configuration during adds, moves, and changes of network devices.

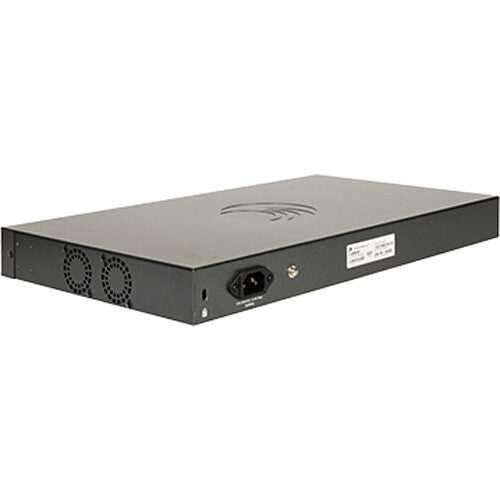

Cooling
Two cooling fans help to maintain optimal performance while producing minimal noise.
In the Box
- Cambium cnMatrix EX2016M-P 14-Port PoE+/PoE++ Compliant Multi-Gig Managed Network Switch
- Rackmount Kit
- Limited Lifetime Warranty
Table of Contents
- Description
- Flexible Management
- Performance
- Layer 2 & Layer 3 Switch
- Easy Installation & Management
- Cooling
Cambium EX2016M-P Specs
Key Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE+
6 x RJ45 2.5 GbE PoE++ (Type 3) 2 x SFP+ 10 GbE (WAN) 1 x RS-232 (LAN) 1 x USB-A 1 x RJ45 (LAN) |
| PoE Power Budget |
240 W
|
Interfaces
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE+
6 x RJ45 2.5 GbE PoE++ (Type 3) 2 x SFP+ 10 GbE (WAN) 1 x RS-232 (LAN) 1 x USB-A 1 x RJ45 (LAN) |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
DHCP Server
IPv4 IPv6 Link Aggregation MAC Filtering RADIUS |
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
256
|
| VLAN Groups |
4000
|
Security
| Security Features |
DHCP Snooping
DoS Attack Prevention RADIUS Authentication Storm Control |
| Static Routes |
64
|
Standards
| RFC |
RFC 1858
RFC 2474 RFC 2475 RFC 2597 |
| Supported IEEE Standards |
802.1p, 802.1x, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W)
|
Performance
| Forwarding Rate |
120 Mpps
|
| Switching Bandwidth |
86 Gb/s
|
| Priority Queues |
8
|
Computer
| Flash Memory |
128 MB
|
| CPU |
Single-Core: Up to 800 MHz
|
| Memory |
512 MB
|
Electrical
| Power Draw |
26.76 W (Max)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
240 W
|
| PoE per Port |
30 to 60 W
|
Environmental
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Operating Humidity |
95%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
General
| Certifications |
No
|
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
385,242 Hours
|
| Indicator Lights |
Link/Activity, PoE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 9.8 x 1.7" / 44 x 25 x 4.4 cm
|
| Weight |
7.9 lb / 3.6 kg
|
Packaging Info
| Package Weight |
9.335 lb
|
| Box Dimensions (LxWxH) |
18.8 x 13.6 x 3.7"
|
