Description
Cambium EX2010-P Overview
- 1Description
- 2Flexible Management
- 3Performance
- 4Layer 2 & Layer 3 Switch
- 5Easy Installation & Management

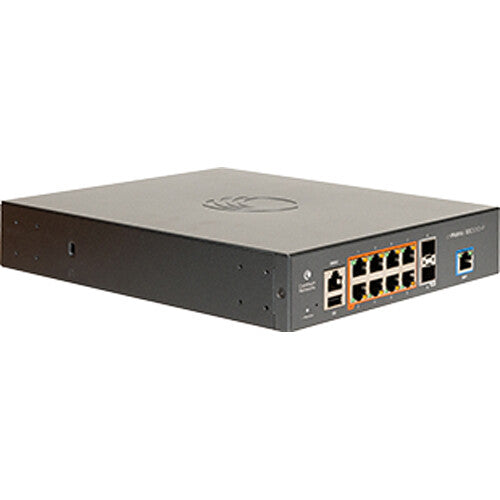

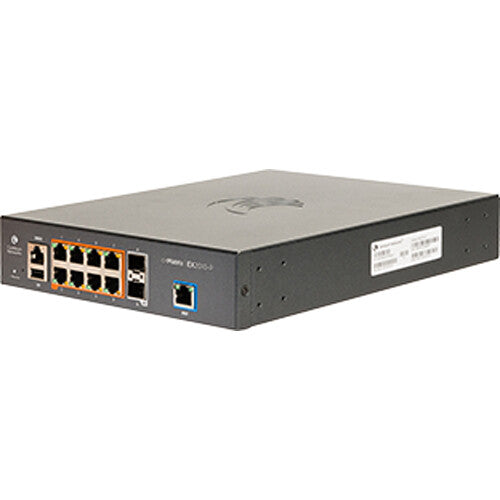

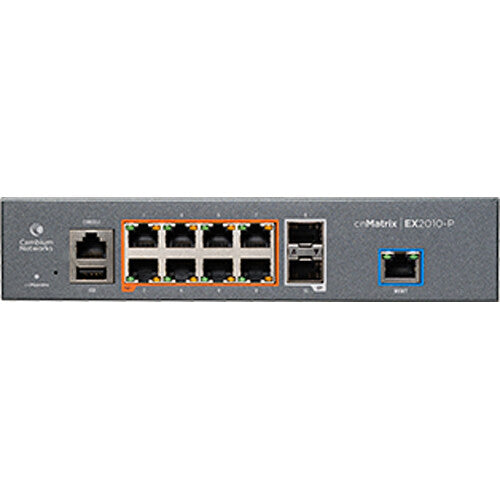

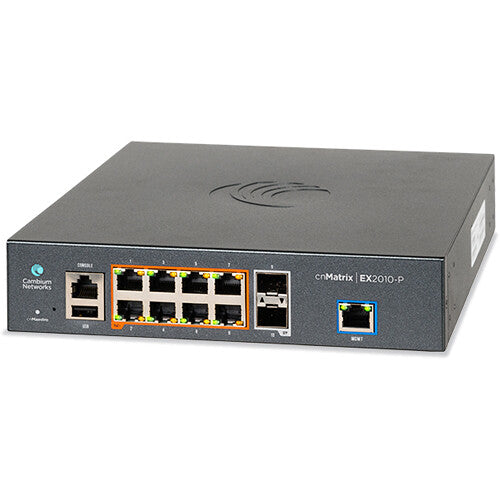

Integrating the cnMatrix EX2010-P 8-Port Gigabit PoE+ Compliant Managed Switch from Cambium into your network allows you to quickly expand your business's network capacity. Its eight Gigabit speed Ethernet ports each support up to 30W with a 100W budget to operate access points, IP security cameras, VoIP phones, and other powered devices. Two SFP slots are also available for up to 1 Gb/s fiber uplink connections.
This fanless switch may be mounted onto a desktop or rack and operates silently in the background. Please be aware that a power cable is not included.
Flexible Management
This switch supports cloud-based and on premise management through the cnMaestro or XMS platforms.
Performance
With a 20 Gb/s switching capacity and 120 Mpps forwarding rate, the cnMatrix EX2010-P provides fast and smooth data transfers.
Layer 2 & Layer 3 Switch
Comprehensive Layer 2 and Layer 3 support provides a wide range of features and enhanced security.
Easy Installation & Management
Zero-touch deployment simplifies installation. Policy Based Automation eliminates manual configuration during adds, moves, and changes of network devices.
In the Box
- Cambium cnMatrix EX2010-P 8-Port Gigabit PoE+ Compliant Managed Network Switch
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Flexible Management
- Performance
- Layer 2 & Layer 3 Switch
- Easy Installation & Management
Cambium EX2010-P Specs
Key Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE+
2 x SFP (WAN) 1 x USB-A 1 x RS-232 (LAN) 1 x RJ45 (LAN) |
| PoE Power Budget |
100 W
|
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS TLS |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
256
|
| VLAN IDs |
4000
|
Security
| Security Features |
DHCP Snooping
DoS Attack Prevention RADIUS Authentication Storm Control |
| Static MAC |
128
|
| Static Routes |
64
|
| SNMP Support |
1, 2, 3
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3u, 802.3x
|
Performance
| Forwarding Rate |
120 Mpps
|
| Switching Bandwidth |
20 Gb/s (Non-Blocking)
|
| Priority Queues |
8
|
Computer
| Flash Memory |
128 MB
|
| CPU |
Single-Core: Up to 800 MHz
|
| Memory |
512 MB
|
Electrical
| Power Draw |
10.54 W (Max)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
100 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
95%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
General
| Certifications |
No
|
| Cooling System |
Passive
|
| Mean Time Between Failures (MTBF) |
338,917 Hours
|
| Indicator Lights |
Link/Activity, PoE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
9.8 x 8.3 x 1.7" / 25 x 21 x 4.4 cm
|
| Weight |
4.39 lb / 1.99 kg
|
