CAD WX55 Overview
Quick and easy to set up, the CAD WX55 Digital Wireless Microphone System offers clear wireless digital audio for presenters, performers, and educators. The system includes a bodypack transmitter with a headset that's comfortable to wear and a plug-in receiver with QuickMic connection into your mixing board via an integrated 1/4" jack.
You can be ready to go in no time: just turn on the system and the transmitter scans 16 switchable frequencies to locate a clean RF channel that's free from interference. The transmitter automatically pairs with the receiver, which simply plugs into an open channel on your audio mixer. Operate the bodypack up to 8 hours on two AA batteries and the receiver up to 2 hours on its built-in rechargeable battery. The receiver can also operate for numerous hours on a USB power pack or indefinitely, if you have access to AC.
- Clear digital audio
- Headset microphone
- Bodypack transmitter
- Plug-in receiver with 1/4" jack for connection to an audio mixer
- Frequency-agile design with 16 switchable frequencies
- Use up to 15 systems at the same time
- Up to 164' range between transmitter and receiver (line of sight)
- Transmitter and receiver feature low-battery indicators
- Transmitter operates up to 8 hours on two AA batteries
- Receiver operates up to 2 hours on fully charged, built-in rechargeable battery
- Receiver can also operate indefinitely via USB power (USB cable included)

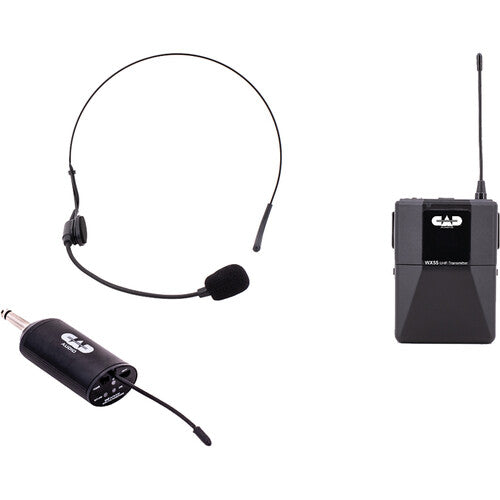

In the Box
- CAD WX55 Digital Wireless Microphone System with Bodypack and Headset (500 to 599 MHz)

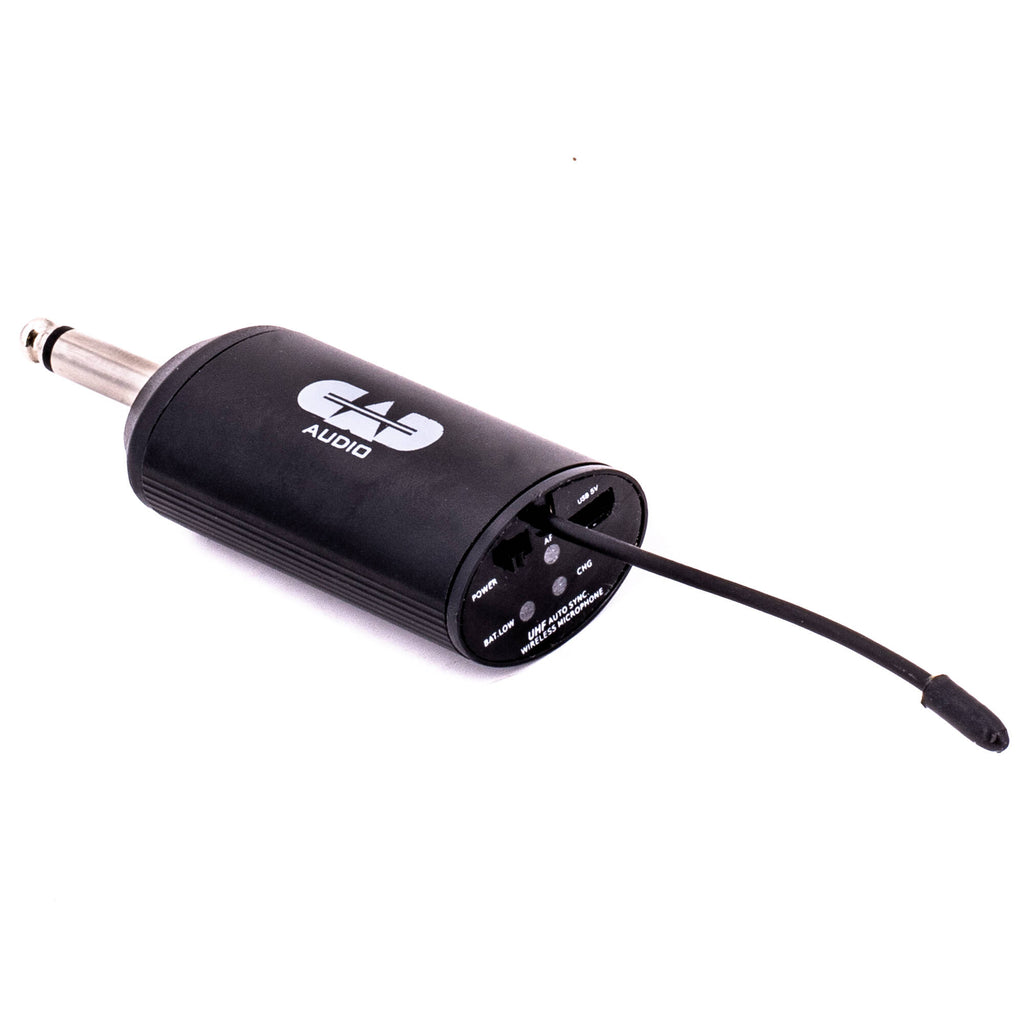

- 1/4" Plug-In Receiver

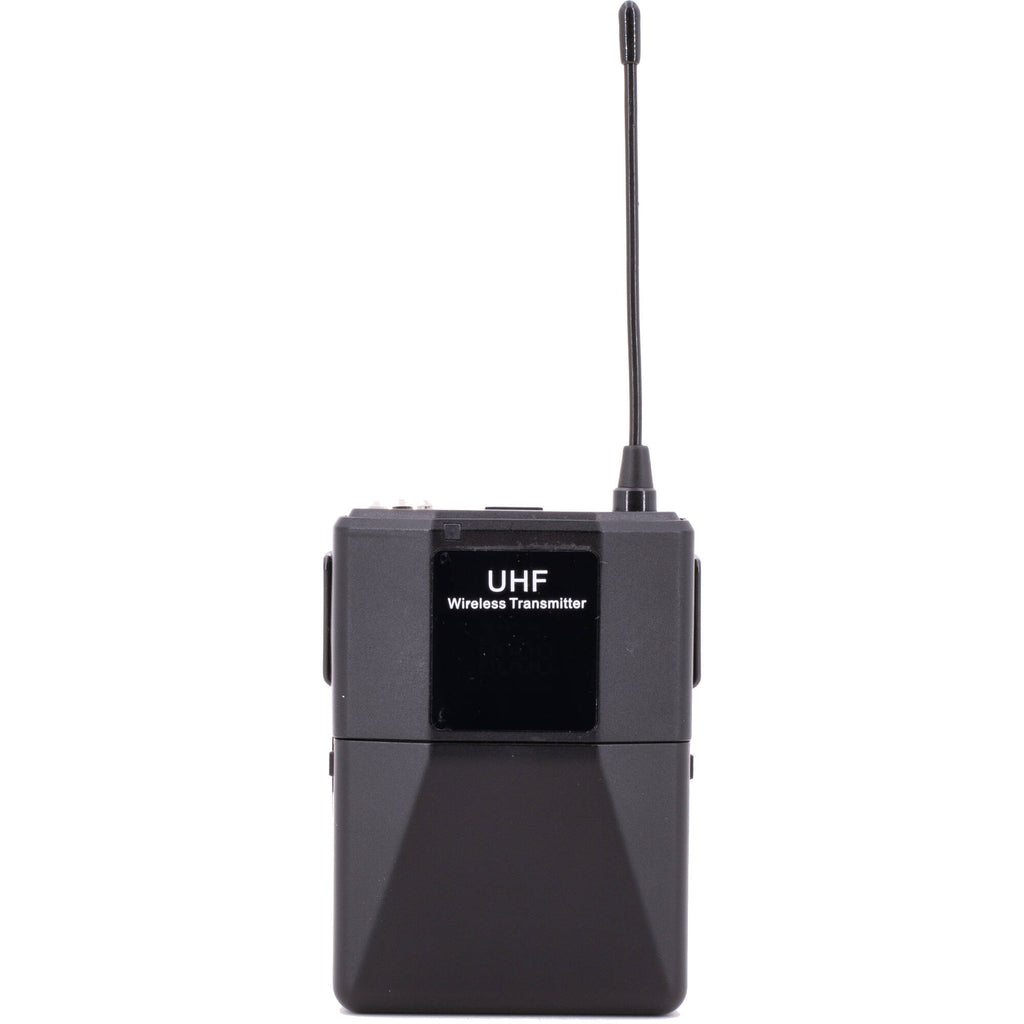

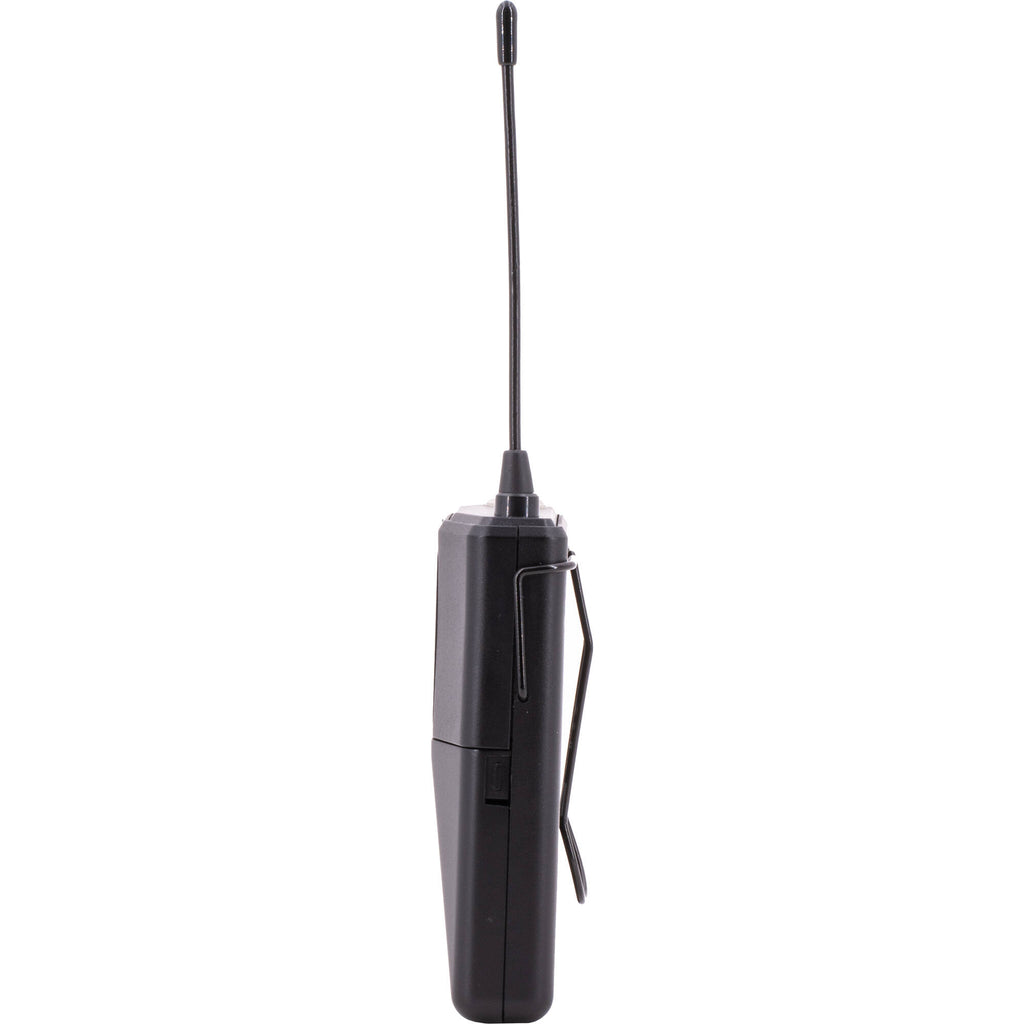

- Bodypack Transmitter
- Headset Microphone
- USB Type-A to Micro-USB Charging Cable
CAD WX55 Specs
System
| Wireless Technology |
Digital UHF |
| Number of RF Channel Frequencies |
16 |
| Included Transmitters |
1 x Bodypack |
| Diversity |
Non-Diversity |
| RF Frequency Band |
500 to 599 MHz |
| RF Channel Scanning |
Auto-Scan |
| Max Operating Range |
164' / 50 m (Line of Sight) |
| Max Transmitters per Band |
15 |
| Built-In Recorder |
No |
| Encryption |
None |
| Modulation |
QPSK |
Receiver
| Receiver Type |
Plug-In |
| Number of Audio Channels |
1 |
| Audio I/O |
1 x 1/4" TS Male Unbalanced Output |
| Frequency Response |
20 Hz to 16 kHz |
| Network I/O |
None |
| Word Clock I/O |
None |
| USB/Lightning Connectivity |
Micro-USB Female |
| Power Requirements |
Battery |
| Battery Type |
1 x Built-In Rechargeable |
| Approx. Battery Life |
2 Hours |
| DC Input Power |
5 VDC |
| Display & Indicators |
3 x LED (Battery Status, RF Level, Recharging) |
Transmitter
| Transmitter Type |
Bodypack |
| RF Output Power |
10 mW |
| Audio I/O |
1 x TA4/Mini XLR 4-Pin Male Input |
| Auto-Level Control |
No |
| Frequency Response |
20 Hz to 16 kHz |
| Sync Method |
Proprietary |
| Power Requirements |
Battery |
| Battery Type |
2 x AA |
| Approx. Battery Life |
8 Hours |
| Display & Indicators |
1 x LED (Battery Status) |
Microphone
| Microphone Type |
Headset |
| Sound Field |
Mono |
| Outputs |
1 x TA4/Mini XLR 4-Pin Female |
Charging Case
| Capacity |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.585 lb |
| Box Dimensions (LxWxH) |
9.2 x 7 x 2.1" |
