Description

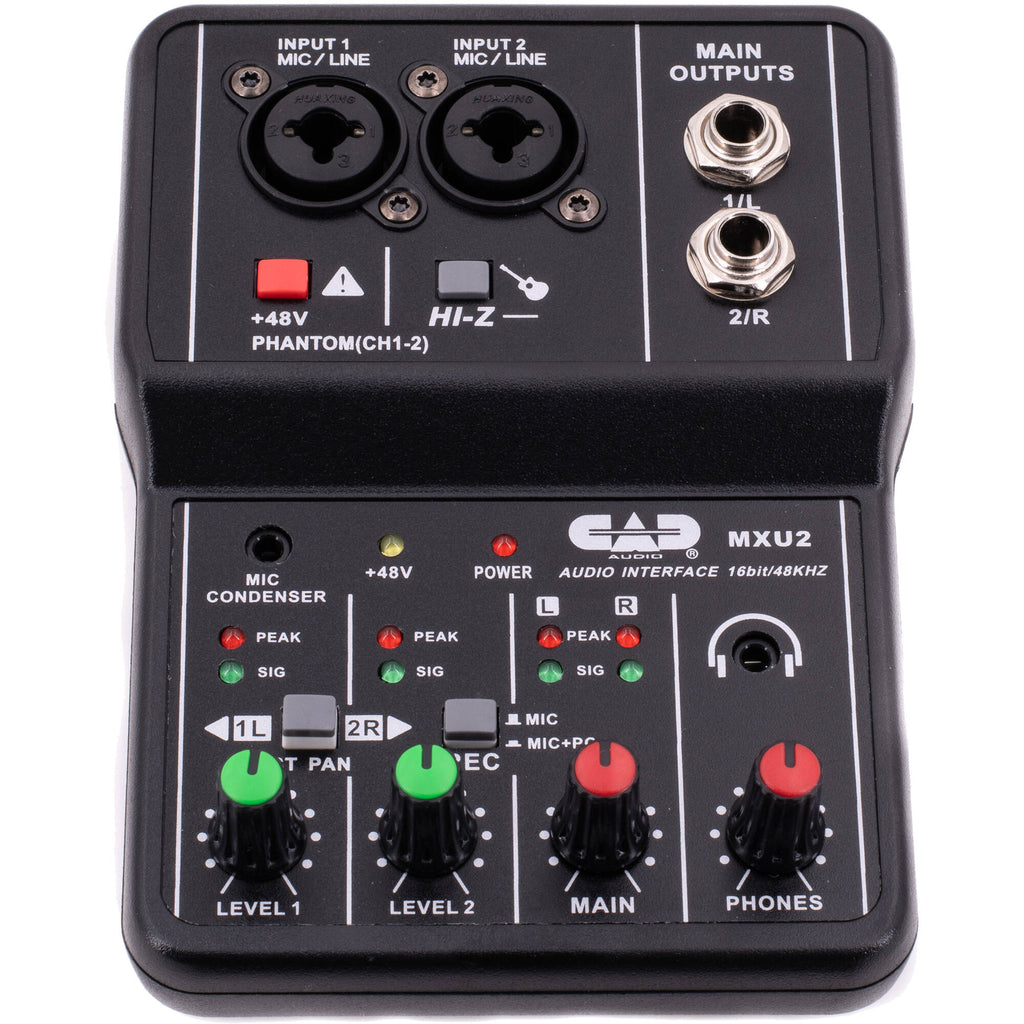

CAD MXU2 Overview
When an ultracompact form factor and uncomplicated design are your main concerns, look no further than the MXU2 Analog Mixer with USB from CAD, a simple yet versatile 2-channel mixer that's ideal for podcasting, home recording, and live applications. While the mixer sports an all-analog signal path, it also includes a handy USB audio interface for supporting two-track recording at 16-bit / 48 kHz.
Inputs include two XLR-1/4" combo inputs with selectable +48V phantom power and optional Hi-Z instrument recording modes and a 3.5mm mic input for 3V condensers, while outputs include a stereo 3.5mm headphone jack and two 1/4" TRS outputs that form a stereo pair. The mixer provides simple 2-segment LEDs for monitoring signal and peaks on each channel, and provides knob level control for each channel, the headphone output, and the main mix. This mixer can be completely USB bus powered and requires no external drivers when used with macOS or Windows computers.
In the Box
- CAD MXU2 2-Channel Analog Mixer with USB
- Limited 2-Year Manufacturer Warranty
CAD MXU2 Specs
| Number of Analog Input Channels |
2 (2 Mono)
|
| Number of Mic Preamps |
2
|
| Analog Output Channels |
1x Stereo Master Output
1x Stereo Headphone Output |
| Mix Routing |
1x Stereo Main Mix per Main Mix Channel
|
| EQ |
No
|
| Built-In Effects |
No
|
| USB I/O |
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
|
| Wireless |
No
|
| Max Multitrack Recording |
2 Tracks
|
| Rack Mountable |
No
|
| Max I/O Capacity |
3x Input / 3x Output
|
| Number of Analog Input Channels |
2 (2 Mono)
|
| Number of Mic Preamps |
2
|
| Analog Output Channels |
1x Stereo Master Output
1x Stereo Headphone Output |
| Mix Routing |
1x Stereo Main Mix per Main Mix Channel
|
| Faders & Level Adjustment |
2x Channel Knob
1x Master Knob |
| Meters |
Main Meter:
1x 4-Segment LED Channel Meter: 2x 2-Segment LED |
| Input Polarity |
Fixed
|
| Dynamic Processing |
No
|
| Sidechain Filters |
No
|
| EQ |
No
|
| Graphic EQ |
No
|
| Solo/Mute |
No
|
| Channel Output/Source Monitoring |
AFL, Post-Preamp
|
| Built-In Effects |
No
|
| Sample Rates |
48 kHz
|
| Bit Depth |
16-Bit
|
| DSP |
No
|
| Frequency Response |
20 Hz to 20 kHz
|
| THD |
0.03%
|
| Analog Inputs |
2x Combo XLR-1/4" 3-Pin Balanced Mic/Hi-Z Input (Pre-Fader)
1x 1/8" / 3.5 mm Mic Input (Pre-Fader) |
| Analog Outputs |
2x 1/4" TRS Main Output (1 Stereo Pair, Post-Fader)
|
| Phantom Power |
+48 V, Selectable On/Off (Applied to All Inputs)
|
| Digital I/O |
No
|
| MIDI I/O |
No
|
| USB I/O |
1x USB-B 2.0 (2-Track Record, Audio Playback, Host Connection)
|
| USB I/O Capacity |
2x Input / 2x Output
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Max Multitrack Recording |
2 Tracks
|
| OS Compatibility |
Windows
macOS |
| Required Hardware |
USB Cable
|
| AC Input Power |
No
|
| DC Input Power |
5 VDC (USB Bus Power)
|
| Rack Mountable |
No
|
| Dimensions |
6 x 5 x 2.2" / 15.2 x 12.7 x 5.6 cm
|
| Weight |
0.6 lb / 0.3 kg
|
| Package Weight |
0.695 lb
|
| Box Dimensions (LxWxH) |
6.7 x 4.9 x 2"
|
